5022503391 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5022503391

5022503391: Description0.30mm (.012") pitch easy-On? backflip? fpc connector; CategoryThe connector The connector; File Size498KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5022503391 Overview

0.30mm (.012") pitch easy-On? backflip? fpc connector

5022503391 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Reach Compliance Code	unknow
Factory Lead Time	16 weeks
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact material	NOT SPECIFIED
Manufacturer's serial number	502250
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

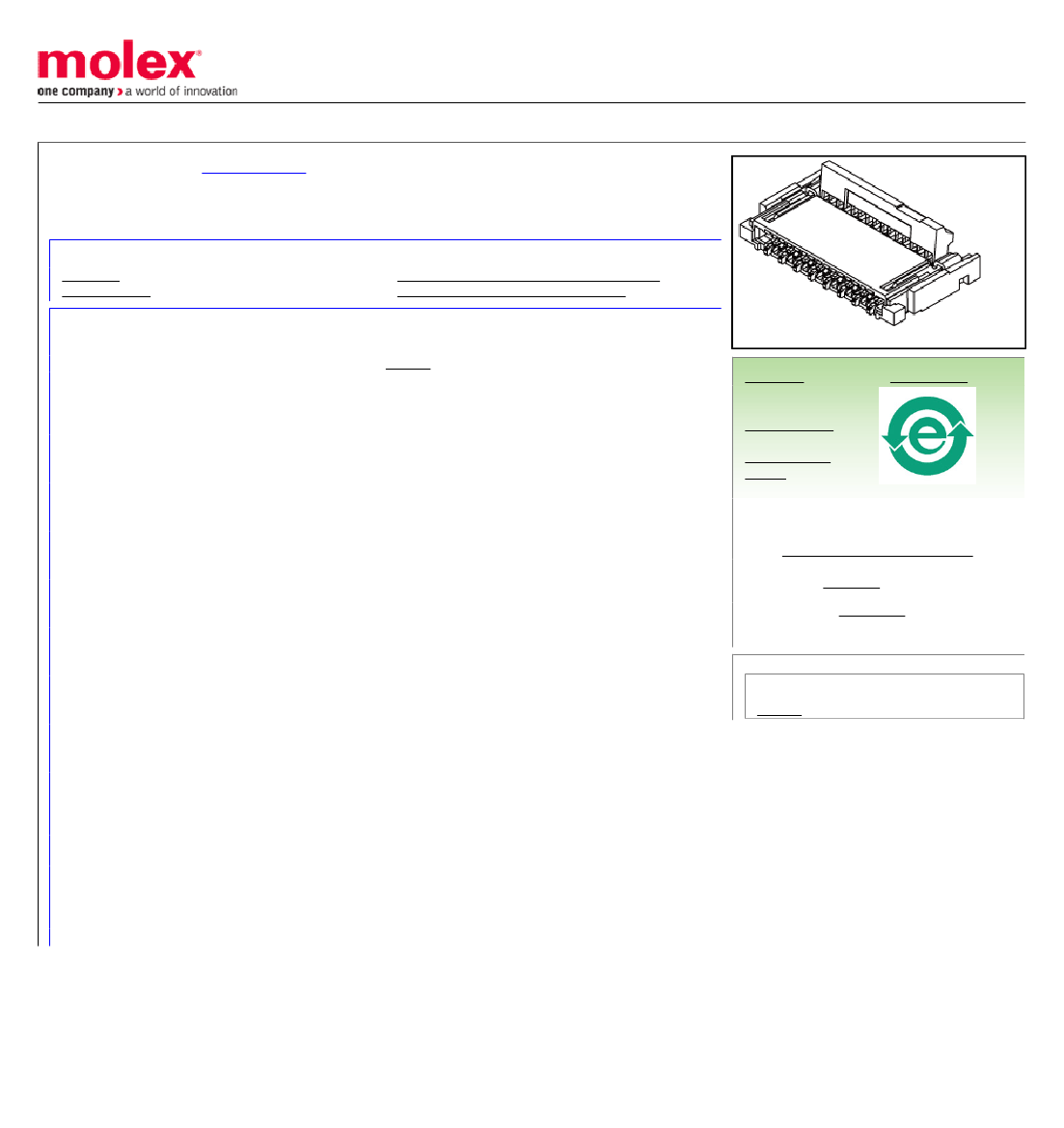

Part Number:

Status:

Description:

5022502391

Active

0.30mm (.012") Pitch Easy-On™ BackFlip™ FPC Connector, Right Angle, SMT,Dual

Contact Style, 0.90mm (.012") Mated Height, 23 Circuits

Documents:

3D Model

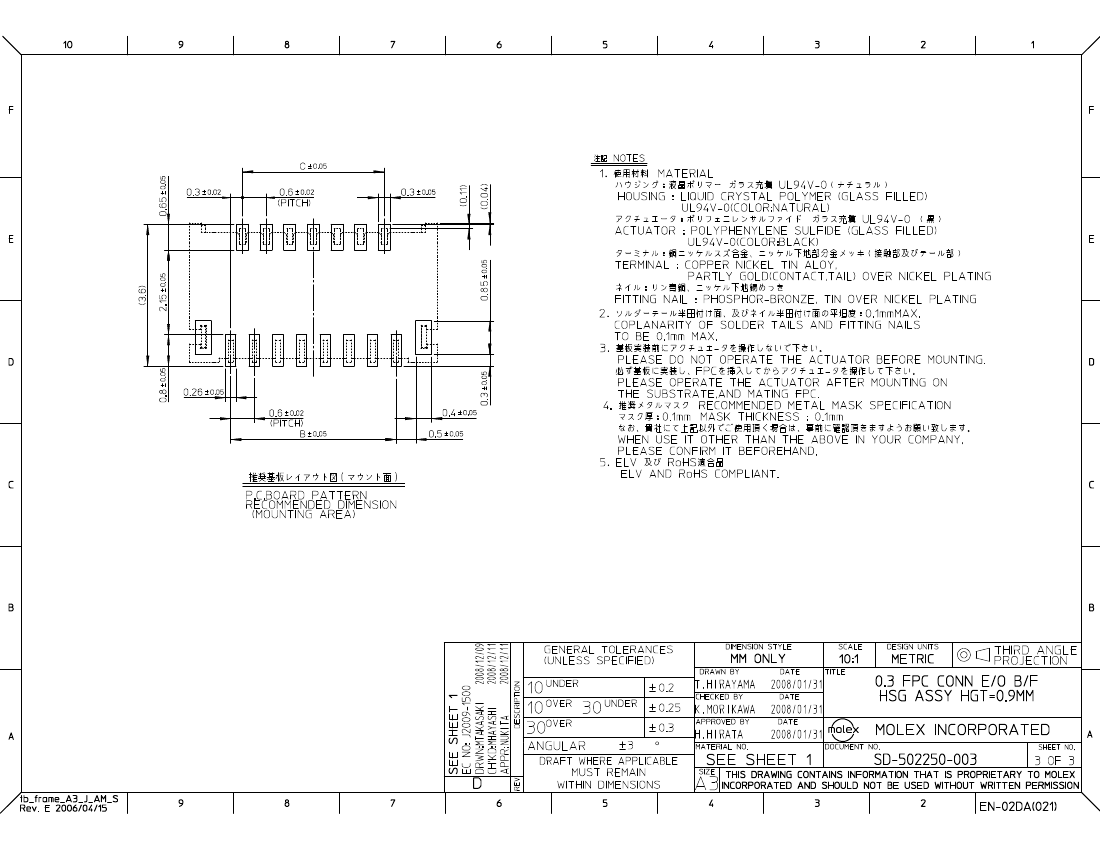

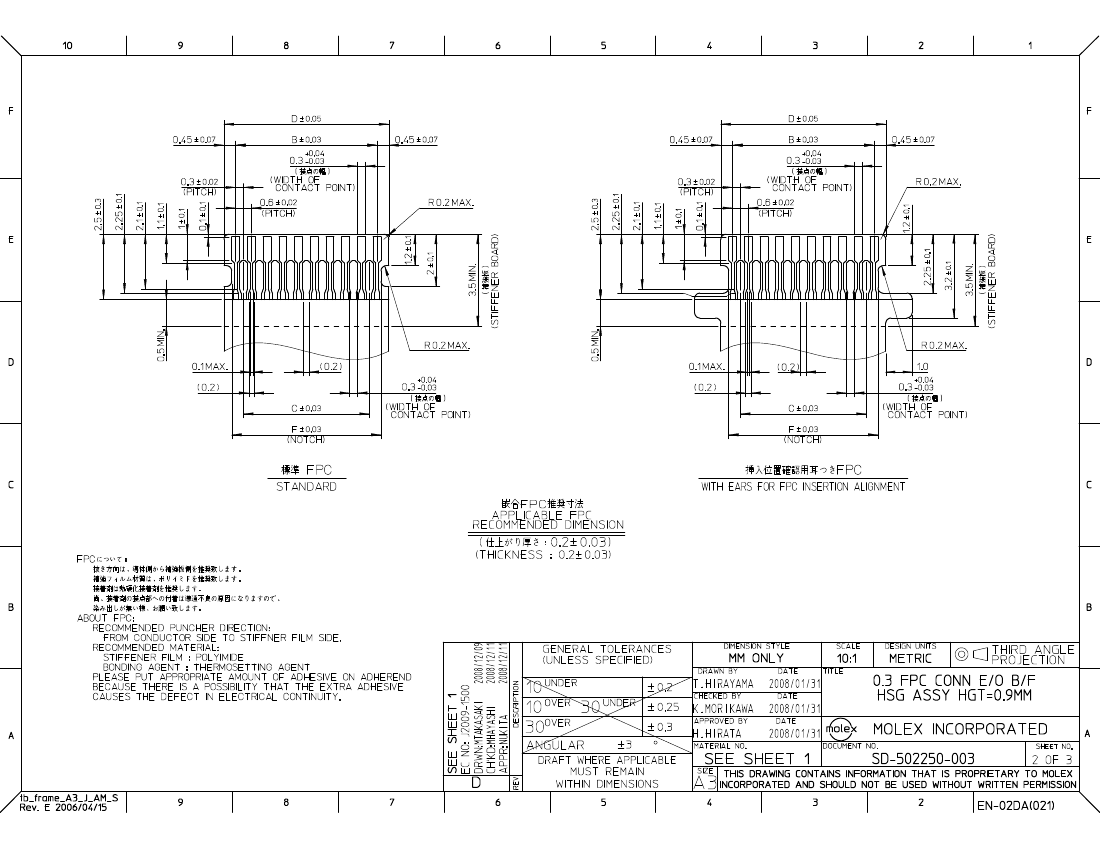

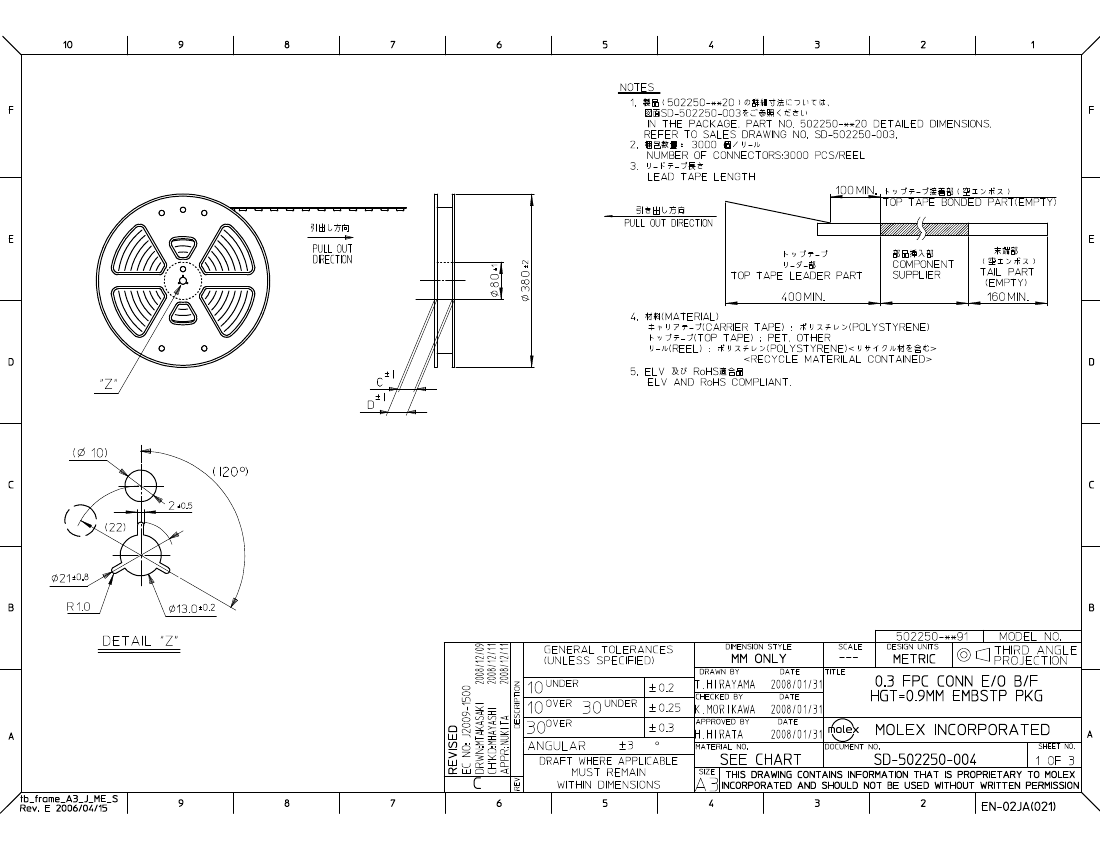

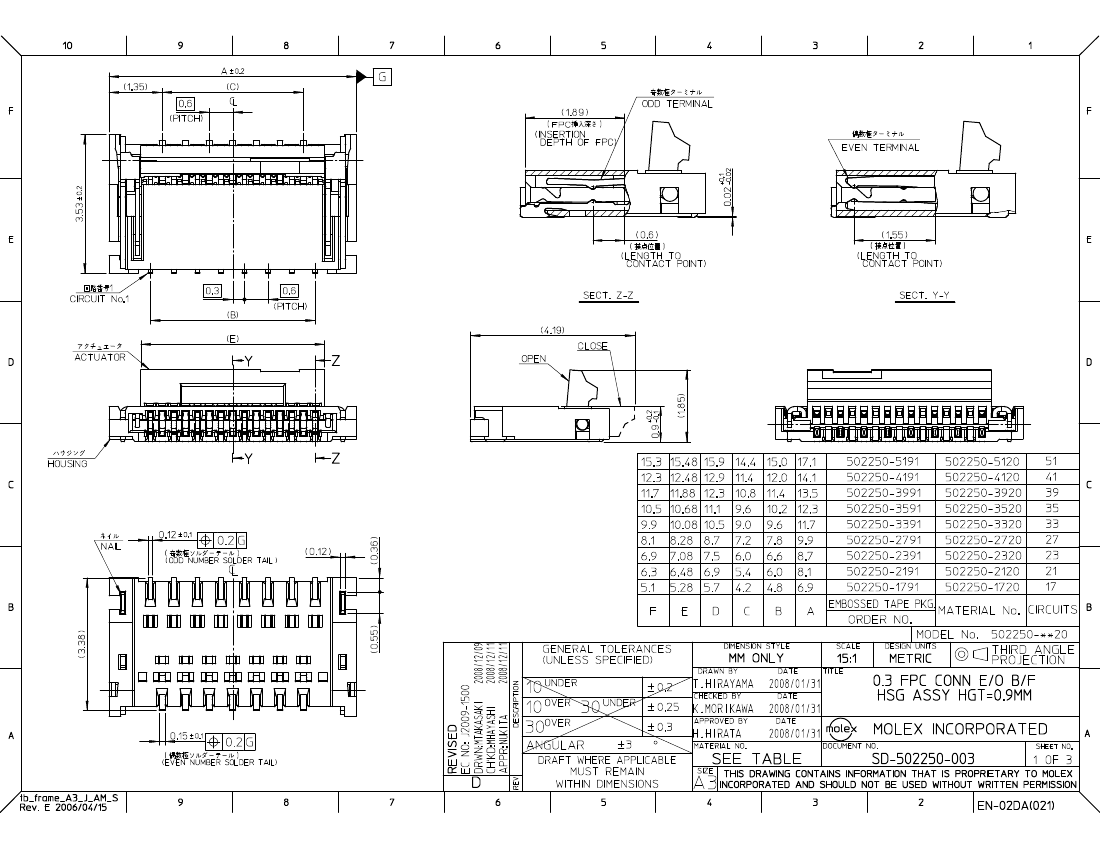

Drawing (PDF)

Product Specification PS-502250-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

FFC/FPC Connectors

502250

BackFlip™, Easy-On™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Product Name

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black, Natural

Dual

90° Angle

0.035 In

0.90 mm

Copper-Nickel-Tin

Gold

Right Angle

Yes

Embossed Tape on Reel

0.012 In

0.30 mm

Yes

-25°C to +85°C

Surface Mount

FPC only

Search Parts in this Series

502250Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.2A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-502250-001, RPS-502250-001, RPS-502250-003,

RPS-502250-005, RPS-502250-007

SD-502250-003, SD-502250-004

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

5022503391 Related Products

	5022503391	5022502391
Description	0.30mm (.012") pitch easy-On? backflip? fpc connector	0.30mm (.012") pitch easy-On backflip fpc connector, right angle, smt,dual contact style
Is it lead-free?	Lead free	Lead free
Reach Compliance Code	unknow	unknow
Factory Lead Time	16 weeks	10 weeks
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED
Manufacturer's serial number	502250	502250
Base Number Matches	1	1
