LBG
Series
Miniature
Airbag
Applications
Solvent Proof
105 C
Maximum
Temperature
Actual
Size
MINIATURE -105 C
LBG

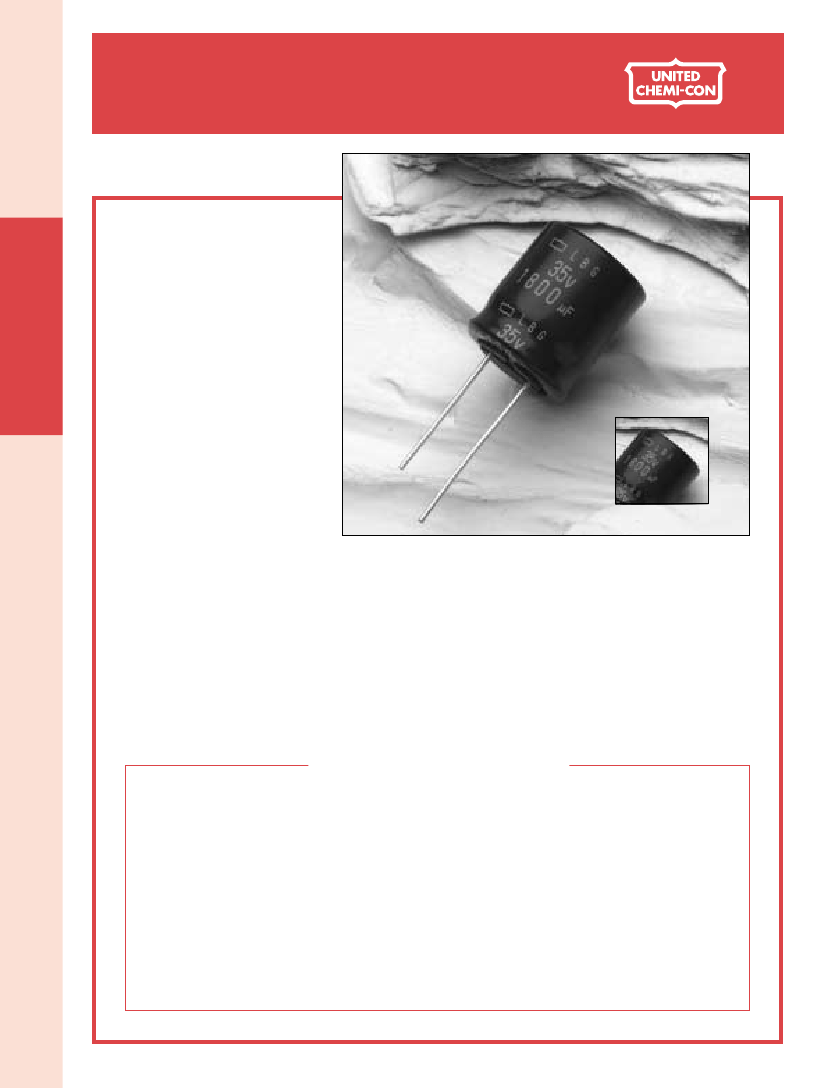

The LBG series capacitors are designed for use in airbag applications. These capacitors have very
stable low temperature characteristics, which make them ideal for airbag use. The standard tolerance
of 0 to 30% also helps to meet the minimum capacitance requirements for this application.
The LBG series capacitors are solvent proof. Refer to the Mini-Glossary for cleaning guidelines and
recommended cleaning agents that are compatible with United Chemi-Con products.
Summary of Specifications
Radial lead terminals.
Capacitance range: 820 to 6,800µF.
Voltage range: 16 to 35VDC.
Category temperature range: 55 C to 105 C.
Leakage current: 0.01CV after 2 minutes at 20 C.
Standard capacitance tolerance: 0 to 30%
Nominal case size (D L): 12.5 20mm to 18 25mm.
Rated lifetime: 5,000 hours at 105 C with the rated ripple current applied.
100
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
LBG Series
LBG Specifications
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
I
55 to 105 C
16 to 35VDC
820 to 6,800 F
0 to
30% ( S) at
20 C, 120Hz
20 C.
Characteristics
0.01CV after 2 minutes at
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
At
20 C, 120Hz
MINIATURE -105 C
Rated Voltage ( V )
Tan
( DF )
16
0.16
25
0.14
35
0.12
When nominal capacitance exceeds 1,000 F, add 0.02 to the values above for each 1,000 F increase.
LBG
Impedance at 100kHz
Low Temperature
Characteristics
At 100kHz, maximum impedance at
20 C and 10 C is specified in the Ratings Tables.
55 C value and
35
3
At 120Hz, impedance ( Z ) ratio between the
the values given below.
Rated Voltage ( V )
Z ( 55 C ) / Z ( 20 C )
16
3
25
3
20 C value shall not exceed
Endurance
(Load Life )
The following specifications shall be satisfied when the capacitors are restored to 20 C after
subjecting them to DC voltage for 5,000 hours at 105 C with the rated ripple current applied.
The sum of the DC voltage and peak AC voltage must not exceed the full rated voltage of
the capacitors.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Part Numbering System for LBG Series
LBG
35
VB
182
S
18X20
LL
When ordering, always specify complete catalog number for LBG Series.
Lead Length: LL is Standard.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: S = 0% to 30%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R18 = .18 F; 1R8 = 1.8 F;
18R = 18 F; 181 = 180 F; 182 = 1,800 F; 183 = 18,000 F ).
Lead Configuration: VB = Radial Lead Terminals.
DC Rated Voltage: Expressed in Volts (e.g. 35 = 35WVDC).
Series Name: Indicates Basic Capacitor Design.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
101
LBG Series
Diagram of Dimensions
VB/Radial Lead
Unit: mm
PVC Sleeve
d
D
'
D
F
L
Vent
L
'
15
MIN.
4
MIN.
MINIATURE -105 C
LBG
Gas escape end seal for all case diameters.
For optional lead configurations, refer to the beginning
of the Miniature section.
Ø
D
Ø
D
'
max.
Ø
D
Ø
D
12.5
16
18
0.5
0.5
Ø
D 0.5
L
'
max.
L 1.5
L 1.5
L 1.5
Ø
d
0.6
0.8
0.8
F 0.5
5.0
7.5
7.5
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum Impedance
(
Ω
) at
20 C, 100kHz
0.038
0.030
0.029
0.022
0.028
0.020
0.038
0.030
0.029
0.028
0.022
0.020
0.038
0.030
0.029
0.022
0.028
0.020
10 C, 100kHz
0.076
0.060
0.058
0.044
0.056
0.040
0.076
0.060
0.058
0.056
0.044
0.040
0.076
0.060
0.058
0.044
0.056
0.040
Rated
Ripple Current
( mA rms) at
105 C, 100kHz
1,660
1,950
2,210
2,560
2,490
2,740
1,660
1,950
2,210
2,490
2,560
2,740
1,660
1,950
2,210
2,560
2,490
2,740
16 Volts
20 Volts Surge
2,200
2,700
3,300
4,700
4,700
6,800
1,200
1,800
2,200
2,700
3,300
3,900
820
1,200
1,500
1,800
1,800
2,700
LBG16VB222S12X20LL
LBG16VB272S12X25LL
LBG16VB332S16X20LL
LBG16VB472S16X25LL
LBG16VB472S18X20LL
LBG16VB682S18X25LL
LBG25VB122S12X20LL
LBG25VB182S12X25LL
LBG25VB222S16X20LL
LBG25VB272S18X20LL
LBG25VB332S16X25LL
LBG25VB392S18X25LL
LBG35VB821S12X20LL
LBG35VB122S12X25LL
LBG35VB152S16X20LL
LBG35VB182S16X25LL
LBG35VB182S18X20LL
LBG35VB272S18X25LL
12.5
12.5
16
16
18
18
12.5
12.5
16
18
16
18
12.5
12.5
16
16
18
18
20
25
20
25
20
25
20
25
20
20
25
25
20
25
20
25
20
25
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
102
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
