This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0010845151
Active
6.35mm (.250) Pitch MLX Power Connector Receptacle, 2.13mm (.084") Contact
Diameter, Vertical, PCT Polyester, Tin (Sn), White, 15 Circuits
Documents:
3D Model

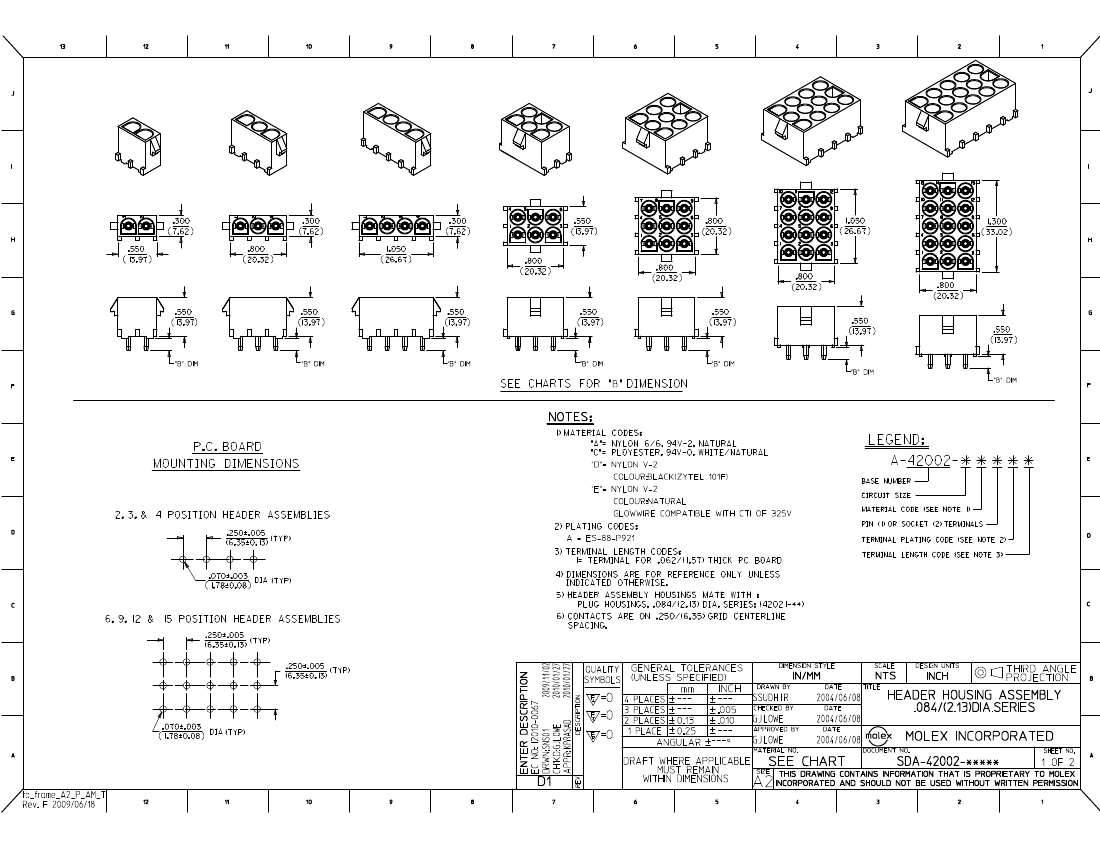

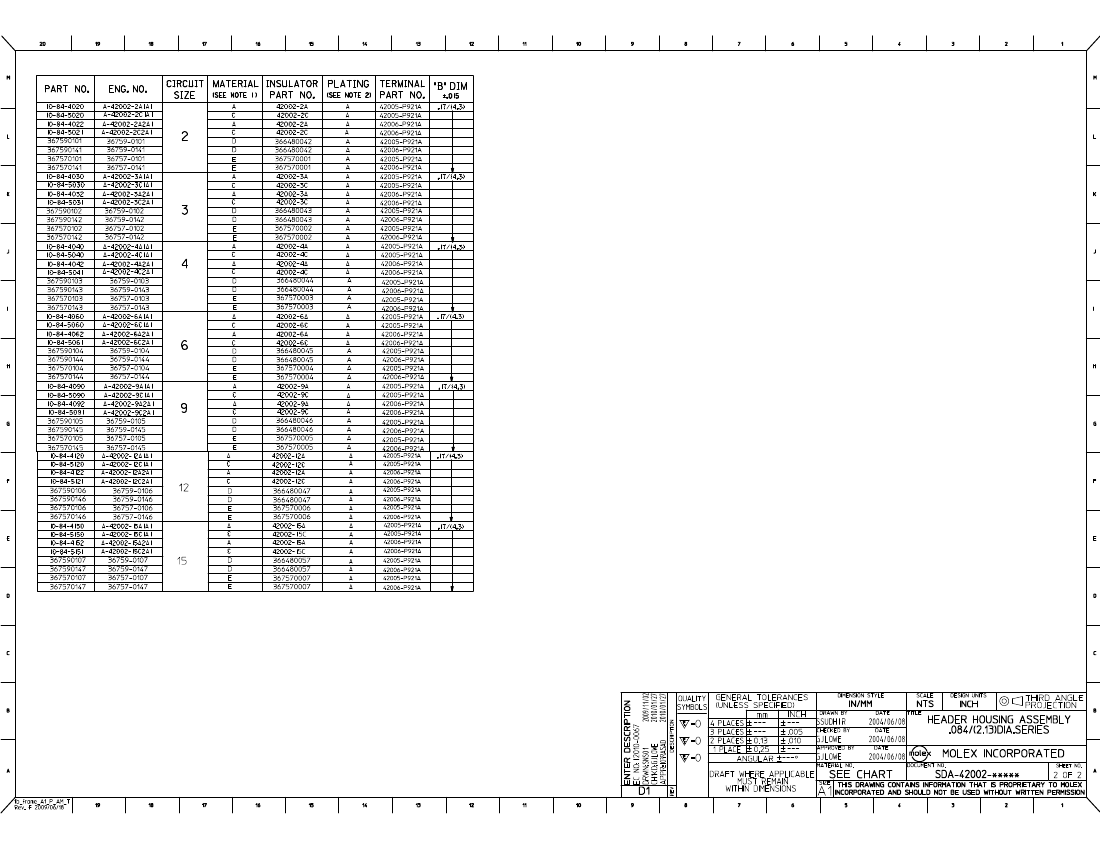

Drawing (PDF)
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Name
PCB Receptacles
42002
Wire-to-Board
High Vibration Application
MLX™
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
15
Natural
50
94V-0
No
Yes
Phosphor Bronze
Tin
Tin
Polyester
3
Vertical
0.169 In
4.30 mm
None
0.062 In
1.60 mm
Bag
0.250 In
6.35 mm
Yes
No
No
-55°C to +105°C
Through Hole
Search Parts in this Series
42002Series
Mates With
42021 , 42023
Electrical
Current - Maximum per Contact
Voltage - Maximum
13.5A
600V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Process Temperature max. C
10
Wave Capable (TH only)
260
Material Info
