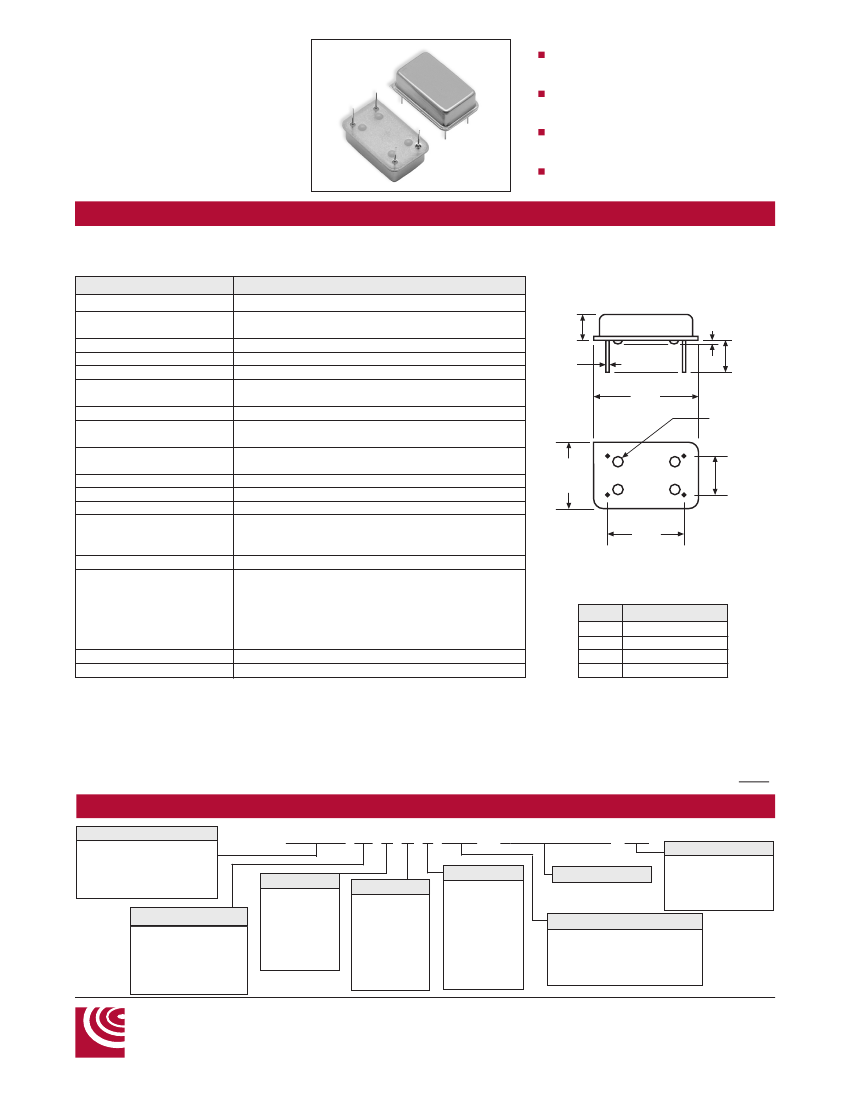

FMVC50
SERIES
3.3 Vdc VCXO
High Frequency via Multiplier
3.3 Vdc Supply Voltage
HCMOS/TTL Compatible
Lower Cost
14 PIN DIP
SPECIFICATIONS
05|issue1|121504
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Linearity
Output Load
Pullability
Specification
40.0 to 200 MHz
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load.)
0 to +70°C Std.
-55 to +125°C
+3.3 Vdc (±0.5 Vdc)
30 mA max. @ 60.0 to 99.9 MHz
50 mA max. @ 100.0 to 200.0 MHz
40/60% Std., 45/55% Available. (See Spec. Option S)
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
±20% max. Std. , ±10% Available (See Spec. Option L)
10 TTL / 15 pF HCMOS
±100 to ±150 ppm typical, ±75 to ±300 ppm Available.
(Select a min. and max. pullability from part number.)
Voltage Control Pin 1 Nom. 2.5 Vdc, Range 0.5 to 4.5 Vdc
< 25 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-105dBc/Hz
1kHz
-100dBc/Hz
10kHz
-90dBc/Hz
100kHz
-95dBc/Hz
1MHz
-120dBc/Hz
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer
±3 ppm max first year
0.240
(6.1)
MAX.
0.020
(0.55)
FULL SIZE 14 PIN DIP
0.031
(0.76)
MAX
0.250
(6.35)
MAX.
0.800
(20.3)
MAX.
1
0.510
(12.95)
MAX.
14
0.600
(15.24)
8
7
Insulated
Stand-Offs
0.300
(7.62)
Jitter (typical)
Phase Noise (typical)
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
Control Voltage (Vc)
Case Ground
Output
Supply Voltage (Vdd)
Control Voltage (Vc)
Aging @ 25°C
All specifications subject to change without notice.
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
3.3 Vdc VCXO
via Multiplier
Full-Size 14 Pin DIP
Overall Frequency Tol.
20 - ± 20 ppm
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format G
MARKING: See Page 52, Format A
Options
GW- Gull Wing
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC50 50 C G A S / L - XXX.XXXXXXM - CM
Min. Pullability
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry
(45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
51
