RN1602 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN1602

RN1602: Descriptionswitching, inverter circuit, interface circuit and driver circuit applications; CategoryDiscrete semiconductor The transistor; File Size259KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RN1602 Overview

switching, inverter circuit, interface circuit and driver circuit applications

RN1602 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	SUPER MINI, SM6, 2-3N1A, 6 PIN
Contacts	6
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G6
Number of components	2
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.3 V
Base Number Matches	1

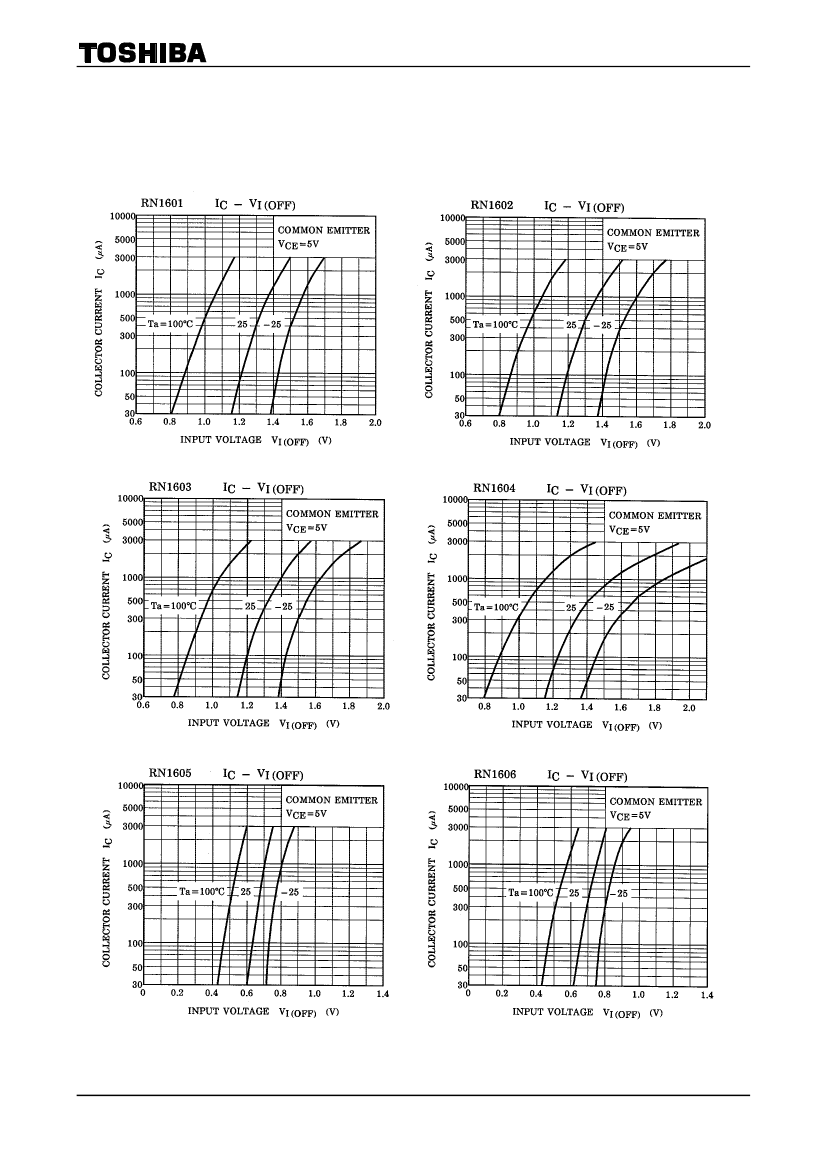

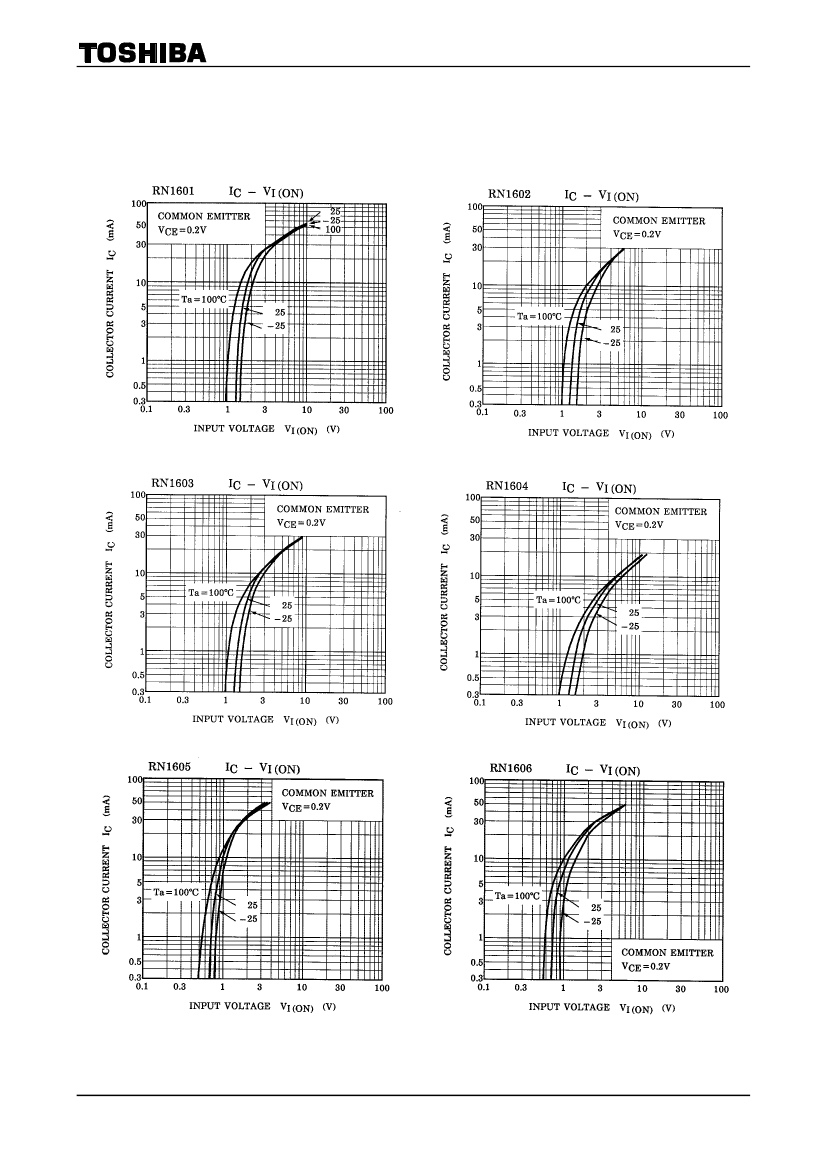

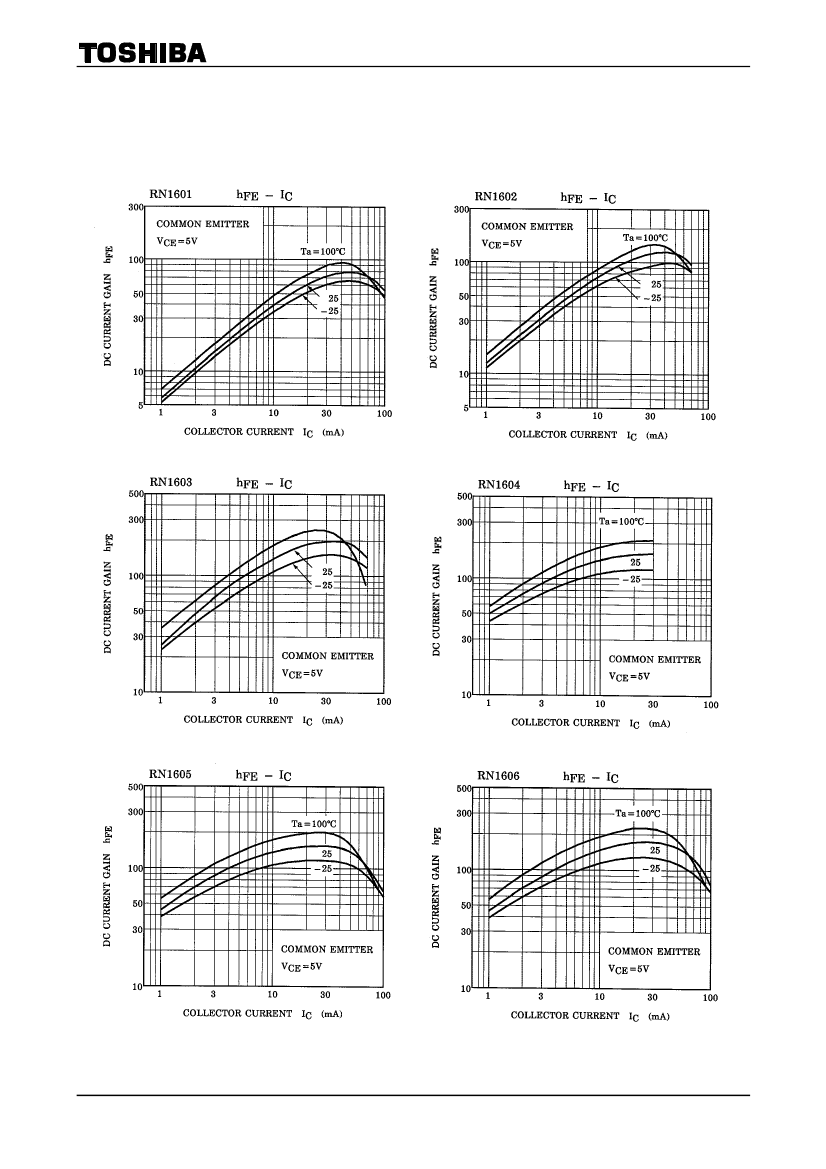

Preview

Download Datasheet

View All

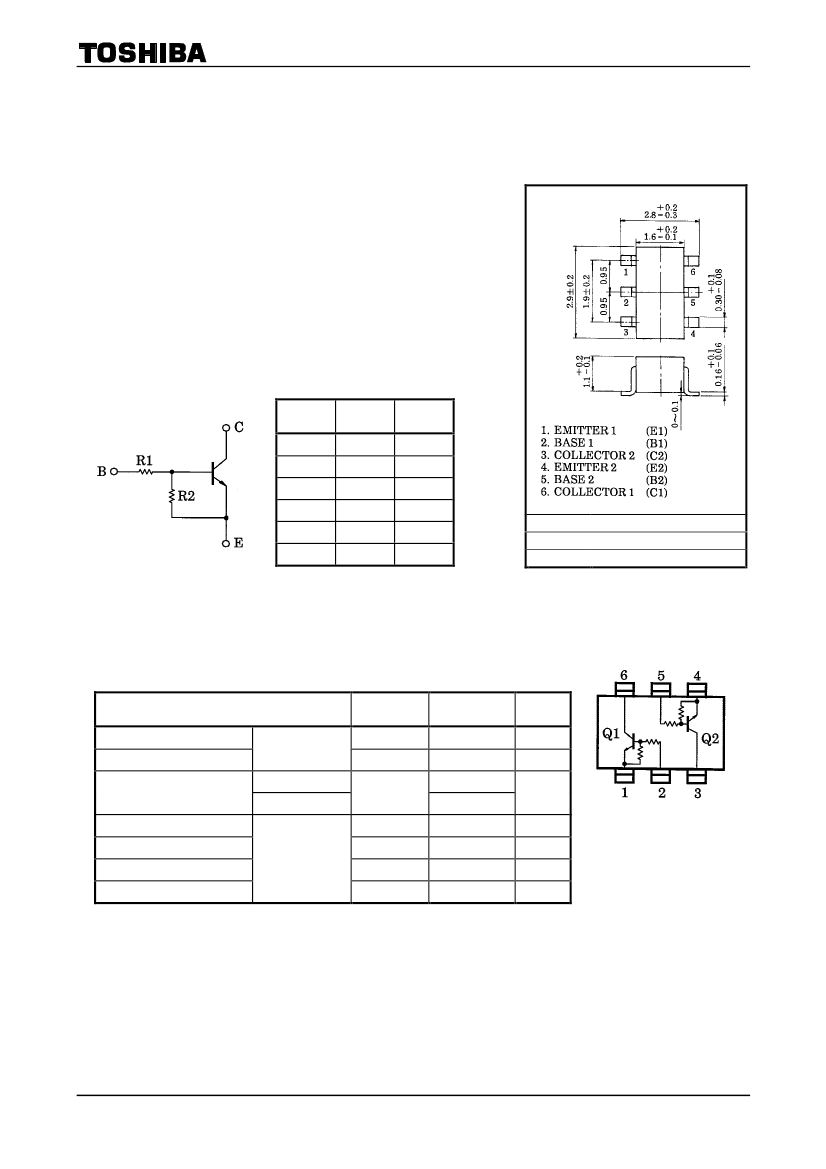

RN1601~RN1606

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process)

RN1601,RN1602,RN1603

RN1604,RN1605,RN1606

Switching, Inverter Circuit, Interface Circuit

And Driver Circuit Applications

Including two devices in SM6 (super mini type with 6 leads)

With built-in bias resistors

Simplify circuit design

Reduce a quantity of parts and manufacturing process

Complementary to RN2601~RN2606

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN1601

RN1602

RN1603

RN1604

RN1605

RN1606

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

JEDEC

EIAJ

TOSHIBA

Weight: 0.015g

―

2-3N1A

Equivalent Circuit

(Top View)

Maximum Ratings

(Ta = 25°C) (Q1, Q2 Common)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN1601~1606

RN1601~1604

RN1605, 1606

Symbol

CBO

CEO

EBO

stg

Rating

100

300

150

−55~150

Unit

°C

Total rating

2001-06-07

RN1602 Related Products

	RN1602	RN1603
Description	switching, inverter circuit, interface circuit and driver circuit applications	switching, inverter circuit, interface circuit and driver circuit applications
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to
package instruction	SUPER MINI, SM6, 2-3N1A, 6 PIN	SUPER MINI, SM6, 2-3N1A, 6 PIN
Contacts	6	6
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A	0.1 A
Collector-based maximum capacity	6 pF	6 pF
Collector-emitter maximum voltage	50 V	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50	70
JESD-30 code	R-PDSO-G6	R-PDSO-G6
Number of components	2	2
Number of terminals	6	6
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz
VCEsat-Max	0.3 V	0.3 V
