A11-C-254-27-6.5-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A11-C-254-27-6.5-T

Preview

A11-C-254-27-6.5-T: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

A11-C-254-27-6.5-T Overview

Board Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

A11-C-254-27-6.5-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1303159316
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	A11
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	27
UL Flammability Code	94V-0

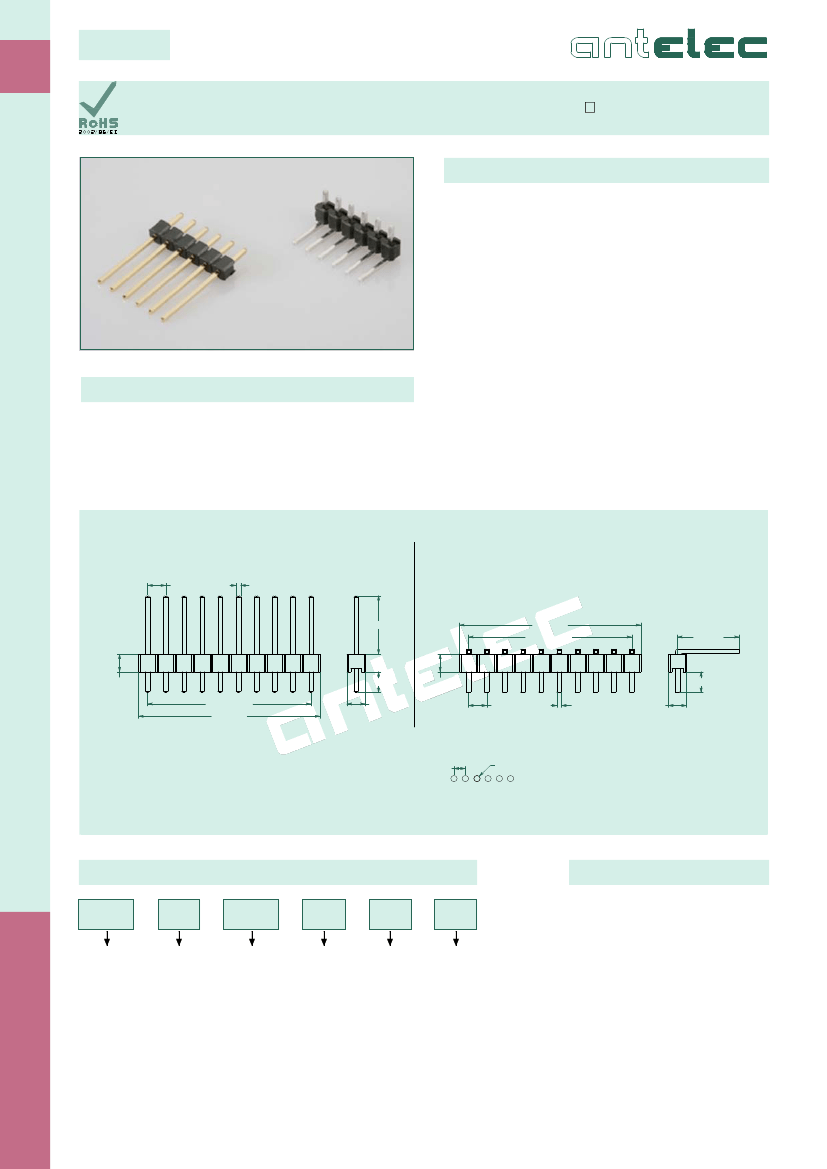

Preview

Download Datasheet

View All

BTB

2.54 mm

www.antelec.fr

Pin header straight & right angle type 1 row pin

0.64 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : 1000 Volts AC during 1 mn

Insulation resistance : > 5000 MΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : brass

Plating : tin or nickel/gold

Insulator : nylon-6T, UL94V-0

Mates with

Female headers

0.64 mm

Straight

2.54

0.64 x 0.64

Right angle

A (9.0)

N x 2.54

(N-1) x 2.54

A (9.0)

H (2.5)

(N-1) x 2.54

N x 2.54

3.0

2.5

H (2.5)

2.54

0.64 x 0.64

2.5

3.0

PCB layout

(tolerance ± 0.05 mm)

2.54

Ø 1.02

Create your part number

Product range

A11

BOARD TO BOARD 2.54

Antelec

1 row

Straight

or C for

right angle

254

Pitch

2.54 mm

or other

multiple

(5.08 or

7.62 or

10.16 mm)

XX

Total

number

of contacts

9

Height

A = 9 mm

(or 6.5 or

12 or 17

mm)

T

Tin or

G for Gold

Number of pins :

1 row :

pitch 2.54 mm : 1 to 40 pins

pitch 5.08 mm : 1 to 20 pins

pitch 7.62 mm : 1 to 13 pins

pitch 10.16 mm : 1 to 10 pins

118

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
