FPA-RL2L-09 datasheet, PDF - EEWORLD Datasheet

FPA-RL2L-09: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size324KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric View All

FPA-RL2L-09 Overview

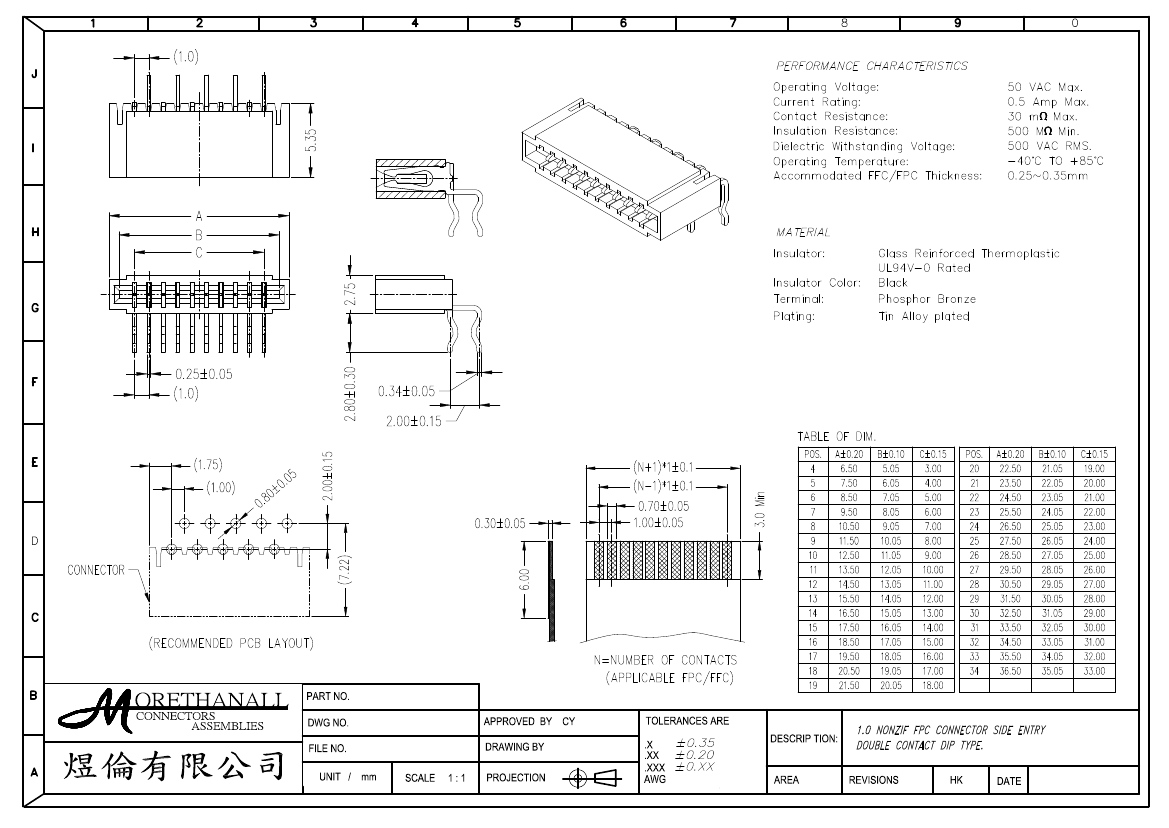

Card Edge Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Objectid	303836684
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.108 inch
subject depth	0.291 inch
body length	0.453 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	9

FPA-RL2L-xx
