LKX-R-07

Description
Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle
CategoryThe connector    The connector
File Size132KB,1 Pages
ManufacturerMorethanall Co., Ltd.
Websitehttp://www.morethanall.com

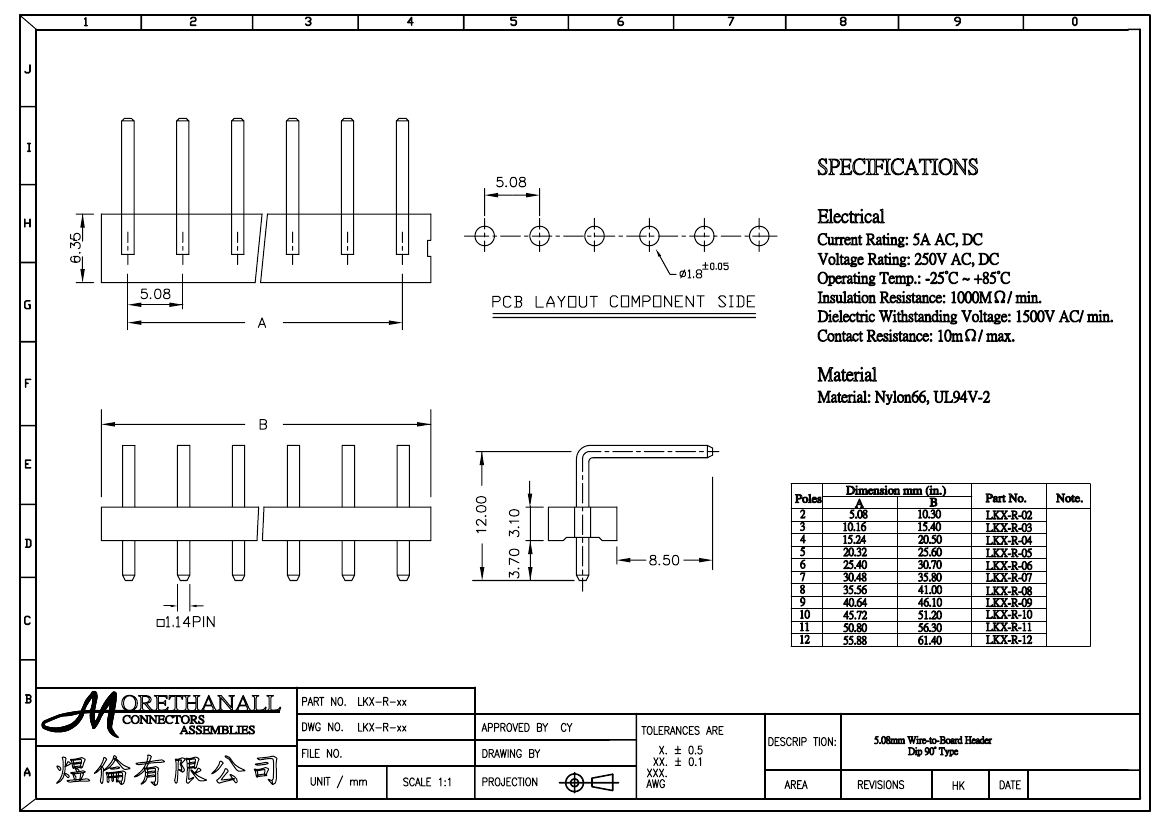

Download Datasheet Parametric View All

LKX-R-07 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle Reverse, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle

LKX-R-07 Parametric

Parameter NameAttribute value
Objectid303842726
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.122 inch
subject depth0.327 inch
body length1.409 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberLKX-R
Plug contact pitch0.2 inch
Installation methodRIGHT ANGLE REVERSE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.335 inch
Terminal pitch5.08 mm
Termination typeWIRE WRAP
Total number of contacts7
