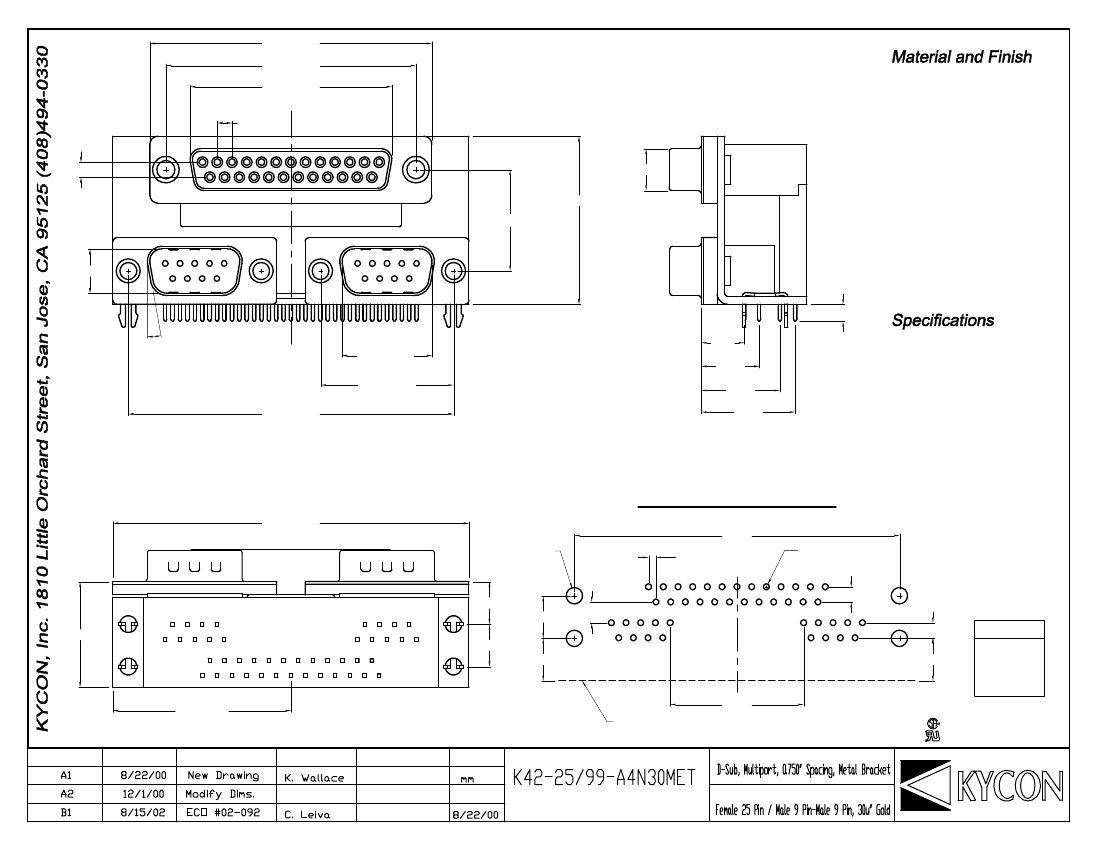

53.04±0.38
47.04±0.25
38.38±0.13
2.77
Insulator: PBT with glass-fiber
reinforcement,
UL 94V-0 rated,
black color
Contact Material:
Pin- Brass
Socket- Phosphor bronze
Contact Plating:
30 Option:
0.000030" Gold on mating end,
Tin-Lead on termination end,
Nickel underplate on entire contact
Shell: Steel, zinc plated or tin
plated
Bracket: Brass strip-H, tin plated
2.84
31.60
19.05[0.750"]
7.90
8.36
3.18±0.38
10.00°
8.08
16.92±0.13
10.92
25.00±0.25
61.16±0.25
14.84
17.68
Rated Current: 5A
Rated Voltage: 300v DC
Withstanding Voltage:
500V (r.m.s.) AC for 1 minute
Insulation Resistance:
More than 1000Megohm at
500V DC
Contact Resistance: 13milliohm Max.
Dielectric Strength: 1000V for 1 minute
Recommended PCB Layout
66.98±0.38
4-Ø3.05
Temperature:
-55°C to +125°C
(Top View)
61.16
1.385 Typ.
43-Ø1.09
8.00
8.00
19.88±0.3
8.00
8.00
2.84
3.92
2.84
8.08
Tolerances
X.X ± 0.5
X.XX ± 0.2
Unless Stated
Otherwise
33.49 Ref.
25.09
PCB Edge
REVISION
DATE
DESCRIPTION
DRAWN BY
REVISED BY
CHECKED BY
APPROVED BY
UNITS
DATE
CSA Certified File No. LR78160
UL Recognized File No. E169636
