FTX4.000M20S3P-30/20B: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size180KB，2 Pages; ManufacturerFronter Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FTX4.000M20S3P-30/20B Overview

Parallel - Fundamental Quartz Crystal,

FTX4.000M20S3P-30/20B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7200938169
package instruction	DIP,HC-49U/S-3PIN
Reach Compliance Code	unknown
Other features	AT CUT;HEIGHT 3,2.8 AND 2.5MM ALSO AVAILABLE
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	30 ppm
load capacitance	20 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.4XB4.8XH3.5 (mm)/L0.449XB0.189XH0.138 (inch)
Series resistance	80 Ω
surface mount	NO

Preview

Download Datasheet

View All

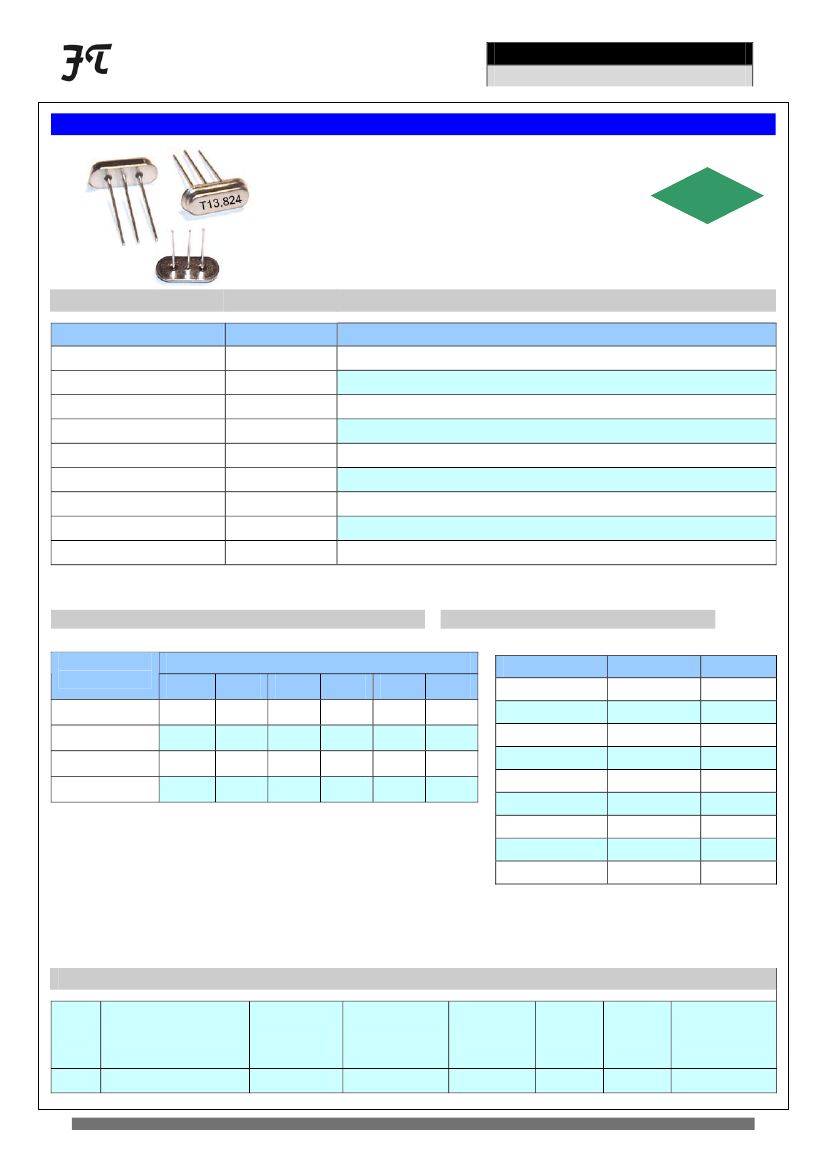

FRONTER ELECTRONICS CO., LTD.

深圳市福浪电子有限公司

DIP QUARTZ CRYSTAL RESONATOR

3 Pin Dip Crystal 11.4×4.8 mm

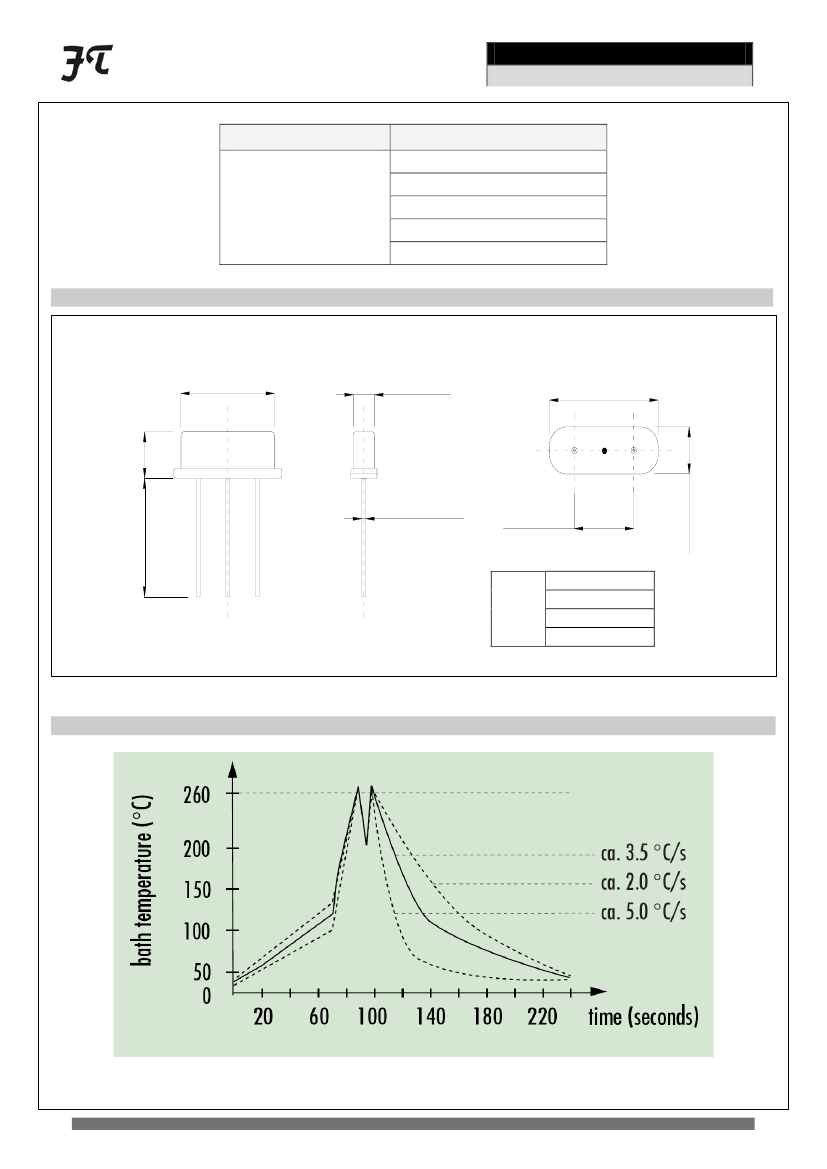

Wave Soldering Temperature: 265℃ max

石英晶 ½ 谐振器

HC-49U/S-3PIN

RoHS

2002/95/EC

RoHS compliant

Package Height 3.5 mm max, 2.5~3.5 mm available

highly stable and reliable crystal unit with a metallic package

3 Pin with ground pin

★

PARAMETERS

技术参数

参数

频率范围

振动模式

负½½电容

激励电平

频率偏差

谐振电阻

频率稳定性

工½温度范围

储存温度范围

SPECIFICATION

规格

3.5

~

100MHz

（3.5

~ 40MHz） Fundamental

（27

~ 100MHz）3rd /5rdOvertone

20pF Std. 8 to 33pF , Series available

10μW（300μW Max）

±10ppm

~

±30ppm（at 25℃）

See Below

±2.5ppm

~

±50ppm

0

~

+50℃ to -40

~

+85℃

-55

~

+125℃

PARAMETERS

Frequency Range

Operation Mode

Loading Capacitance

Drive Level

Frequency Tolerance

Equivalent Resistance

Frequency Stability

Operating Temp. Range:

Storage Temp. Range:

☉All

specification subject change without notice.

规格变化，恕不另行通知。

★

FREQUENCY STABILITY VS. TEMPERATURE

Operation

Temperature Range

0℃~+50℃

-10℃~+60℃

-20℃~+70℃

-40℃~+85℃

±2.5ppm

○

±5ppm

○

频率温度特性

★

ESR（SERIES RESISTANCE RS）

Frequency

Vibration Mode

AT CUT/FUND.

AT 3rd /OT

ESR

150Ω(MAX)

120Ω(MAX)

100Ω(MAX)

80Ω(MAX)

60Ω(MAX)

50Ω(MAX)

40Ω(MAX)

30Ω(MAX)

100Ω(MAX)

Frequency Stability

±10ppm

○

±20ppm

●

○

±30ppm

○

●

○

±50ppm

○

●

3.5-3.999MHz

4.000-4.499MHz

4.500-5.999MHz

6.000-7.999MHz

8.000-9.999MHz

10.000-11.999MHz

12.000-13.999MHz

14.000-40.000MHz

27.000-100MHz

●

standard

○

available

★

PART NUMBER GUIDE

部件号示例

Quartz Crystal Resonator

石英晶½谐振器

X

Frequency

频率

Hz

16.000M

e.g. FTX16.000M20S3P-30/30B (*S3P=HC-49/S-3PIN TYPE)

Load Capacitance

负½½电容

pF

20

Frequency

Tolerance

常温频差

ppm

30

Frequency

Stability

温度频差

ppm

30

Operating Temp.

Range

工½温度

B

Logo

Package

盒型

S3P

FT

Address:Rm 1112-1117., Xinian Center. NO. 6021, Shennan Rd. Shenzhen Gaungdong 518040, China Tel:(86)755-83458718 Fax: (86)755-83459818 E-mial: sales@chinafronter.com
