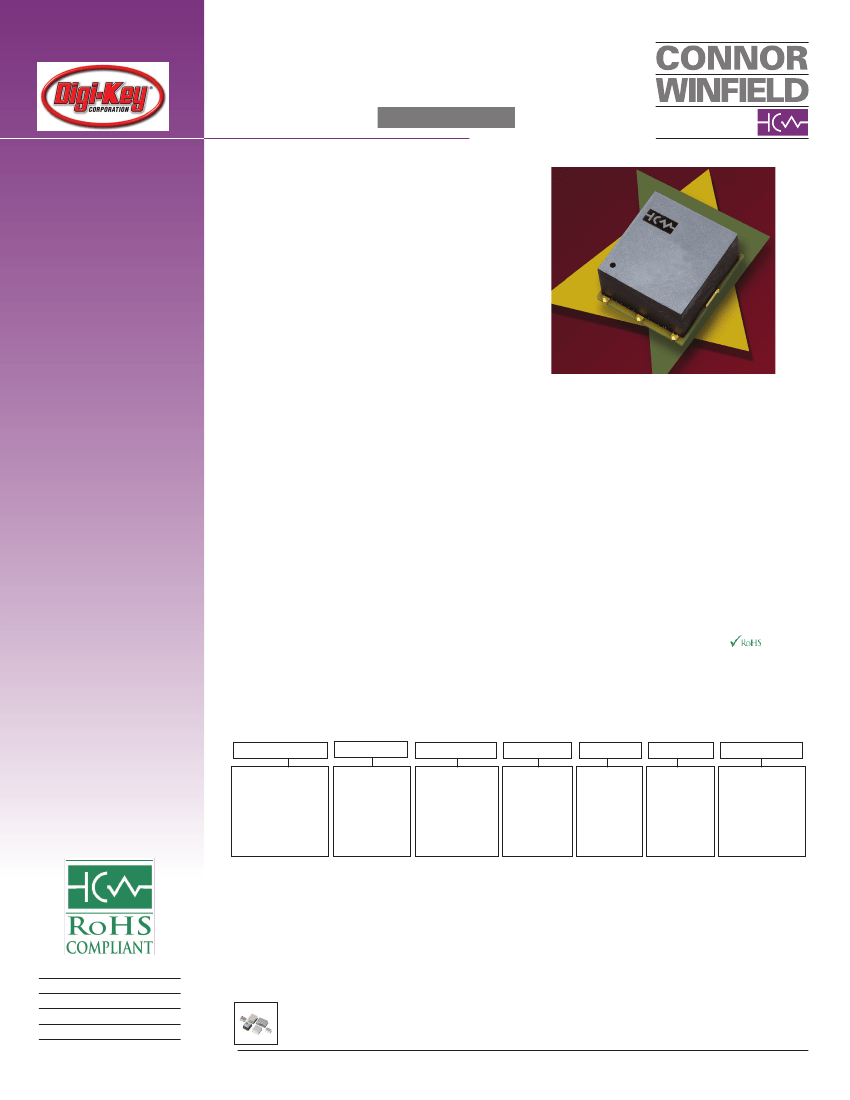

STRATUM 3E High Stability
Oven Stabilized Oscillator
OH300 Series
OCXO / VCOCXO
Description
Connor-Winfield’s high stability OH300
series are exceptionally precise frequency
standards, excellent for use in cellular base
stations, test equipment, Synchronous
Ethernet, VSAT and STRATUM 3E
applications
These unique OCXO / VCOCXO
Oscillators provide frequency stabilities
in the range of ±5 ppb to ±50 ppb, over
the commercial, extended commercial or
the industrial temperature range. Power
requirements are 1.1W over the commercial
temperature range and 1.5W over the
industrial temperature range after warm-up.
Additionally, excellent aging is achieved
through the use of overtone SC cut crystals.
The OH300 series is available with CMOS
logic or Sinewave output along with Voltage
Controlled option. These oscillators provide
outstanding phase noise that varies depending
on frequency requirements. Allan Variance
specifications are rated for primary reference
standards. Warm up times are on the order of
5 minutes to 0.10 ppm of final frequency.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
OH
3
3
00-6
123
0123
8.88 M
1003C
8
012
4568
Hz
F
345
901
689
2
012
Features
•
Frequency Range: 5 to 50 MHz
•
OCXO - Fixed Frequency
•
VCOCXO - Voltage Controlled Option
•
3.3 Vdc or 5.0 Vdc Operation
•
Available Frequency Stabilities:
±5.0 ppb, ±10.0 ppb, ±20 ppb or ±50 ppb
•
Available Temperature Ranges:
0 to 70°C, -20 to 70°C, -20 to 75°C,
-40 to 70°C or -40 to 85°C
•
Low Phase Noise / Phase Jitter
•
Output: CMOS Logic or Sinewave
•
SMT Package: 22 mm x 25 mm x 12.7 mm
•
Tape and Reel Packaging
•
RoHS Compliant / Lead Free
** Not all options
available at
Digi-Key
Ordering Information
6
Temperature
Range
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
8 = -40 to 70°C
9 = -20 to 75°C
OH300-
Package
OH300- = 22x25mm
Surface Mount
Package
10
Frequency Stability
05 = ±5.0 ppb*
10 = ±10.0 ppb
20 = ±20.0 ppb
50 = ±50.0 ppb
03
Supply Voltage
03 = 3.3 Vdc
05 = 5.0 Vdc
C
Output Type
C = CMOS
S = Sinewave
F
OCXO Type
F = Fixed
Freq.
V = Voltage
Controlled
Option.
- 038.88M
Output Frequency
Frequency Format
-xxx.xM Min*
-xxx.xxxxxxM Max*
*Min of 1 and Max
of 6 digits after
the decimal point.
M=MHz
*
±5.0 ppb stability models are
only available over temperature
ranges 0 to 70°C and -20 to 70°C.
Example Part Number:
OH300-61003CF-038.88M = 22x25x12.7mm SMT package, -40 to 85°C temperature range, ±10.0 ppb frequency stability, 3.3 Vdc supply
voltage, CMOS square wave output, fixed output frequency OCXO, 38.88 MHz output frequency.
OH300-52005CV-010.0M = 22x25x12.7mm SMT package, 0 to 70°C temperature range, ±20.0 ppb frequency stability, 5.0 Vdc supply
voltage, CMOS square wave output, voltage controlled output frequency, VCOCXO, 10.0 MHz output frequency.
OH300-75005SV-020.0M = 22x25x12.7mm SMT package, -20 to 70°C temperature range, ±50.0 ppb frequency stability, 5.0 Vdc supply
voltage, Sinewave output, voltage controlled output frequency, VCOCXO , 20.0 MHz output frequency.
Bulletin
Page
Revision
Date
Cx210
1 of 6
17
04 Oct 2017
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage
Control Voltage (Vc)
Operating Supply Voltage 3.3 Vdc (Vcc)
Operating Supply Voltage 5.0 Vdc (Vcc)
Minimum
-55
-0.5
-0.5
3.13
4.75
Nominal
-
-
-
3.30
5.00
Maximum
125
7.0
7.0
3.47
5.25
Units
°C
Vdc
Vdc
Vdc
Vdc
Notes
Absolute Ratings: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress
ratings only. The functional operation of the device at those or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to conditions outside the "recommended operating conditions" for any extended period of time may adversely
impact device reliability and result in failures not covered by warranty.
Operating Specifications
Parameter
Center Frequency: (Fo)
Operating Temperature Range:
Temperature Code 5
Temperature Code 6
Temperature Code 7
Temperature Code 8
Temperature Code 9
Frequency Calibration:
Frequency Stability vs. Change in Temperature:
Stability Code 05
Stability Code 10
Stability Code 20
Stability Code 50
Frequency Stability vs. Load
Frequency Stability vs. Voltage
Aging: Daily:
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Aging: First Year:
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Lifetime Tolerance: (20 Years)
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Supply Voltage: (Vcc)
Voltage Code 03
Voltage Code 05
Power Consumption: Turn-On
0 to 70°C Models
-20 to 70°C Models
-20 to 75°C Models
-40 to 85°C Models
Power Consumption: Steady State @ 25°C
0 to 70°C Models
-20 to 70°C Models
-20 to 75°C Models
-40 to 85°C Models
Phase Jitter: (BW: 10 Hz to Fo/2)
Short Term Allan Deviation (1s) Fo = 10 MHz
Start-Up Time:
Warm Up Time @ 25°C:
Minimum
5
0
-40
-20
-40
-20
-0.1
-5.0
-10.0
-20.0
-50.0
-2.0
-2.0
-1.0
-2.0
-3.0
-50
-100
-200
-300
-500
-600
3.13
4.75
-
-
-
-
-
-
-
-
-
-
-
-
Nominal
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3.30
5.00
-
-
-
-
-
-
-
-
-
1.0E-11
-
-
Maximum
50
70
85
70
70
75
0.1
5.0
10.0
20.0
50.0
2.0
2.0
1.0
2.0
3.0
50
100
200
300
500
600
3.47
5.25
3.00
3.20
3.30
3.80
1.10
1.15
1.20
1.50
1.0
-
500
5
Units
MHz
°C
°C
°C
°C
°C
ppm
ppb
ppb
ppb
ppb
ppb
ppb
ppb/day
ppb/day
ppb/day
ppb
ppb
ppb
ppb
ppb
ppb
Vdc
Vdc
W
W
W
W
W
W
W
W
ps rms
ms
minutes
Bulletin
Page
Revision
Date
Notes
@ 25°C
1, 2
2
2
2
±5%
±5%
3
3
3
4
4
4
5
5
6
6
6
6
6
6
6
6
7
Cx210
2 of 6
17
04 Oct 2017
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Phase Noise Characteristics
Parameter
SSB Phase Noise
@ 1Hz offset
@ 10Hz offset
@ 100Hz offset
@ 1KHz offset
@ 10KHz offset
@ 100KHz offset
5 - 12 MHz
-85
-115
-140
-145
-150
-150
Typical Phase Noise for OH300-series with CMOS Output
>12- 20 MHz
-80
-110
-135
-140
-150
-150
>20 - 30 MHz
-70
-100
-125
-140
-150
-150
>30 - 40 MHz
-65
-95
-120
-140
-150
-150
>40 - 50MHz
-65
-95
-120
-135
-150
-150
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Notes
Input Characteristics - Voltage Controlled Option (OCXO Type Code V)
Parameter
Control Voltage Range: (Vc)
3.3 Vdc Models
5.0 Vdc Models
Frequency Pullability:
Input Impedance
Minimum
0.30
0.50
±0.4
100K
Nominal
1.65
2.50
-
-
Maximum
3.00
4.50
-
-
Units
V
V
ppm
Ohms
Notes
8
8
CMOS Output Characteristics (Output Code C)
Parameter
Load
3.3 Vdc Models
Output Voltage: High (Voh)
Low (Vol)
Output Current: High (Ioh)
Low (Iol)
5.0 Vdc Models
Output Voltage: High (Voh)
Low (Vol)
Output Current: High (Ioh)
Low (Iol)
Duty Cycle at 50% of Vcc
Rise / Fall Time: 10% to 90%
Spurious Output
Minimum
-
3.0
-
-4
-
4.7
-
-8
-
45
-
-
Nominal
15
-
-
-
-
-
-
-
-
50
-
-
Maximum
-
-
0.4
-
4
-
0.4
-
8
55
6
-80
Units
pF
V
V
mA
mA
V
V
mA
mA
%
ns
dBc
Notes
Sinewave Output Characteristics (Output Code S)
Parameter
Load
Output Power
Harmonics
Spurious
OH300 Package
Minimum
-
5.0
-
-
Nominal
50
-
-
-
Maximum
-
-
-30
-80
Ohms
dBm
dBc
dBc
Units
Notes
Package Characteristics
Package consisting of a FR-4 substrate and Ryton-R-4 cover. Water Resistant package,
non-hermetic seal. (Engineering Properties of Ryton R-4 Application Note AN2100)
Re-Stabilization Time
Off Time
<1 Hour
<6 Hour
<24 Hour
1 to 16 Days
>16 Days
Re stabilization Time
<2 Hours *
<12 Hours *
<48 Hours *
48 Hours + 1/4 Off Time *
<6 Days *
* For a given off time, the time required to meet daily aging, short term stability requirements.
Notes:
1. ±5.0 ppb stability models are only available for temperature ranges 0 to 70°C and -20 to 70°C.
2. Frequency vs change in temperature, calculated as [(Fmax-Fmin)/(2*Fo)]. Control voltage at nominal value.
3. At time of shipment after 48 hours of operation.
4. Inclusive of calibration, operating temperature, supply voltage change, load change and 20 years aging.
5. Supply voltage must reach Vcc levels monotonically within a ramp-up time of <12 ms.
6. Measured with Vcc = Nominal, in calm air.
7. Measured @ 25°C, within ±100 ppb, referenced one hour after turn-on.
8. To ensure proper operation of VCOCXO, the control voltage input must be biased the nominal control voltage.
Failure to bias the Vc input will cause an unstable output condition.
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Cx210
3 of 6
17
04 Oct 2017
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Environmental Characteristics
100 G's 3ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.
0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.
5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.
70,000 ft max
10 cycles, 95% RH, Per MIL-STD-202G, Method 112.
Per MIL-STD-202G, Method 215J.
RoHS compliant, lead free. See solder profile on page 6.
Refer to recommended reflow pre-heat and reflow temperatures on page 6. Package material
consist of Ryton R-4 high temperature cover with FR4 substrate. Component solder is Pb free
high temperature eutectic alloy with a melting point of 221°C.|
In-line oven profile:
We recommend using KIC profiler or similar device placing one of the thermocouples on the
device to insure that the internal package temperature does not exceed 221°C.
Removal of device:
If for any reason the device needs to be removed from the board, use a temperature controlled
repair station with profile monitoring capabilities. Following a monitored profile will insure the
device is properly pre-heated prior to relow. Refer to IPC 610E for inspection guidelines.
Recommended Cleaning Process:
(If required)
Device is non-hermetic, water resistance with four weep holes, one in each corner to allow
moisture to be removed during the drying cycle. We recommend in-line warm water wash
with air knife and drying capabilities. If cleaner does not have drying capability, then use hot air
circulated oven. Boards should be placed in the oven vertically for good water runoff
Device must be dried properly prior to use!
Note:
If saponifier is used make sure the device is rinsed properly to insure all residues are removed. PH of saponifier should
not exceed 10.
Drying Temperature:
Between 85 to 100°C.
Drying Time:
Time will vary depending on the board size.
Caution: Do not submerge the device!
Shock
Sinusoidal Vibration
Random Vibration
Altitude
Moisture
Marking Permanency
Solder Process Recommendations:
In-line reflow:
Package Outline
0.866+/-0.008
(22.00+/-0.20mm)
0.300
(7.62mm)
0.200
(5.08mm)
Suggested Pad Layout
0.200
(5.08mm)
0.300
(7.62mm)
0.150
(3.81mm)
0.200
(5.08mm)
0.125
(3.175mm) Typ.
I
(
W
1738
1.000+/-0.008
(25.40+/-0.20mm)
OH300-61003CF
38.88 MHZ
0123456789012
0123456789012
0.120 Typ.
(3.048mm)
(Bottom View)
(Top View)
0.905
(22.99mm)
Pin 1
0.350
(8.89mm)
0.700
(17.78mm)
0.062
0.500
(1.57mm) (12.70mm) Max.
Typical Pad Size
0.100 x 0.100
(2.54 x 2.54mm)
7 Places
0.350
(8.89mm)
0.350
(8.89mm)
Keep Out
Area
Dimensional Tolerance
+/-0.005 (0.127mm)
* Do not route any traces in the keep out area. It is recommended
the next layer under the keep out area is to be ground plane.
Pad Termination Finish: Gold Flash <10 micro inches
Marking Information
I
(
W
1738
Date Code (YYWW)
Model Number
Output Frequency
Serial # Barcode
Serial Number
Pad Connections
1:
2:
3:
4:
5:
6:
7:
Voltage Control or N/C
N/C
Supply Voltage (Vcc)
RF Output
Do Not Connect
Do Not Connect
Ground (Case)
OH300-61003CF
38.88 MHZ
0123456789012
0123456789012
Pin 1
DO NOT connect "DNC" pads to ground
or supply rails.
Bulletin
Page
Revision
Date
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Cx210
4 of 6
17
04 Oct 2017
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

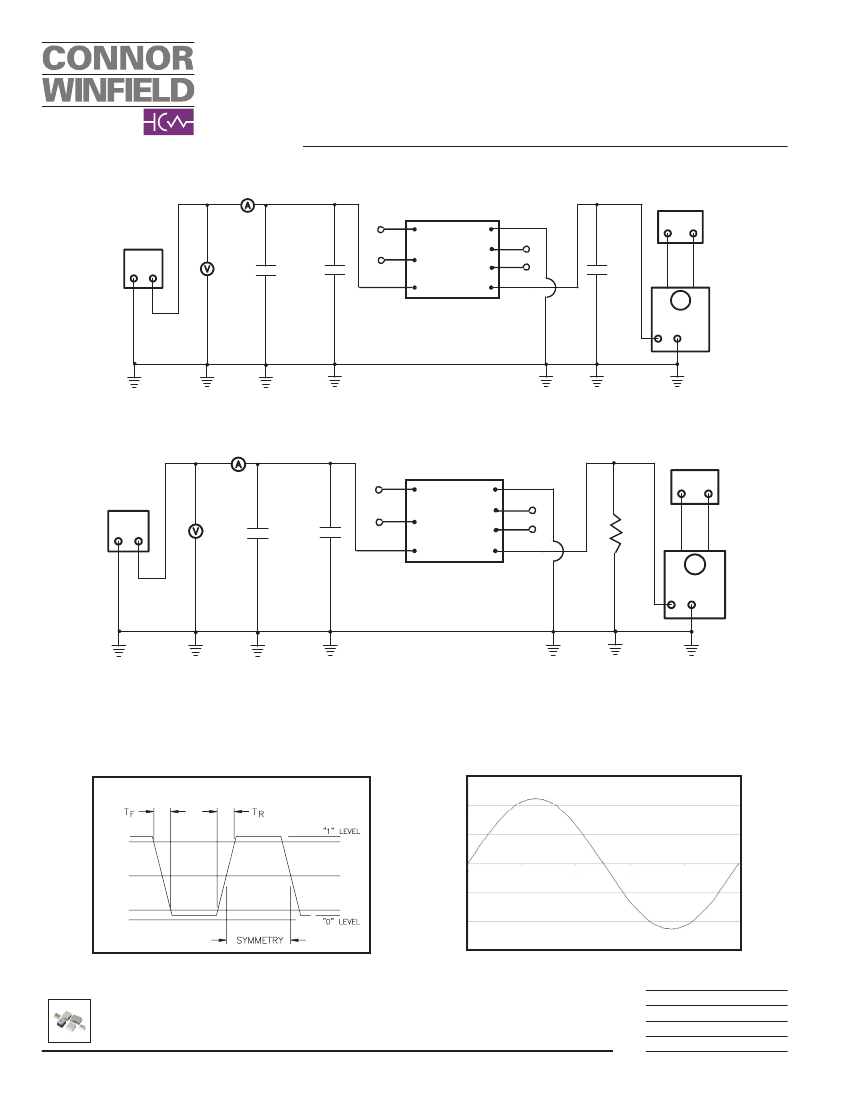

Test Circuit CMOS Output
Vcc
Power
Supply
-
+
10uF
to
100 uF
0.01 uF
Voltage
Control
or
N/C
1
N/C
2
Vcc
3
7
6
5
4
Frequency
Counter
Ground
DNC
DNC
15 pF
RF Out
Scope
DNC = Do Not Connect
DO NOT connect "DNC" pads
to ground or supply rails.
Ground
Test Circuit Sinewave Output
Vcc
Power
Supply
-
+
10uF
to
100 uF
0.01 uF
Voltage
Control
or
N/C
N/C
2
Vcc
3
Frequency
Counter
1
7
6
5
4
Ground
DNC
DNC
RF Out
Scope
50
Ohm
DNC = Do Not Connect
DO NOT connect "DNC" pads
to ground or supply rails.
Ground
CMOS Output Waveform
Sinewave Output Waveform
Sinewave Output, +5 dBm minimum into 50 Ohms
CMOS Output, Squarewave
90%
50%
10%
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Cx210
5 of 6
17
04 Oct 2017
京公网安备 11010802033920号
EEWORLD
