This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5013300700
Active
picoclasp
1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with
Positive Lock, 7 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501331-001 (PDF)
Product Specification PS-501568-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Overview
Product Name
Crimp Housings
501330
picoclasp
Pico-Clasp™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
7
White
Female
No
Yes
Nylon
1
Bag
No
0.039 In
1.00 mm
Yes
No
-40°C to +85°C
Electrical
Current - Maximum per Contact
1A
Search Parts in this Series
501330Series
Mates With
501331 PCB Hearder . 501568 PCB Header
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-501330-001
PS-501331-001, PS-501568-001, RPS-501331-001,
RPS-501331-002, RPS-501331-003, RPS-501331-005,
RPS-501331-006, RPS-501331-007, RPS-501568-002,
RPS-501568-003, RPS-501568-004, RPS-501568-005,
RPS-501940-001
SD-501330-002
Use With
501334 Crimp Terminal

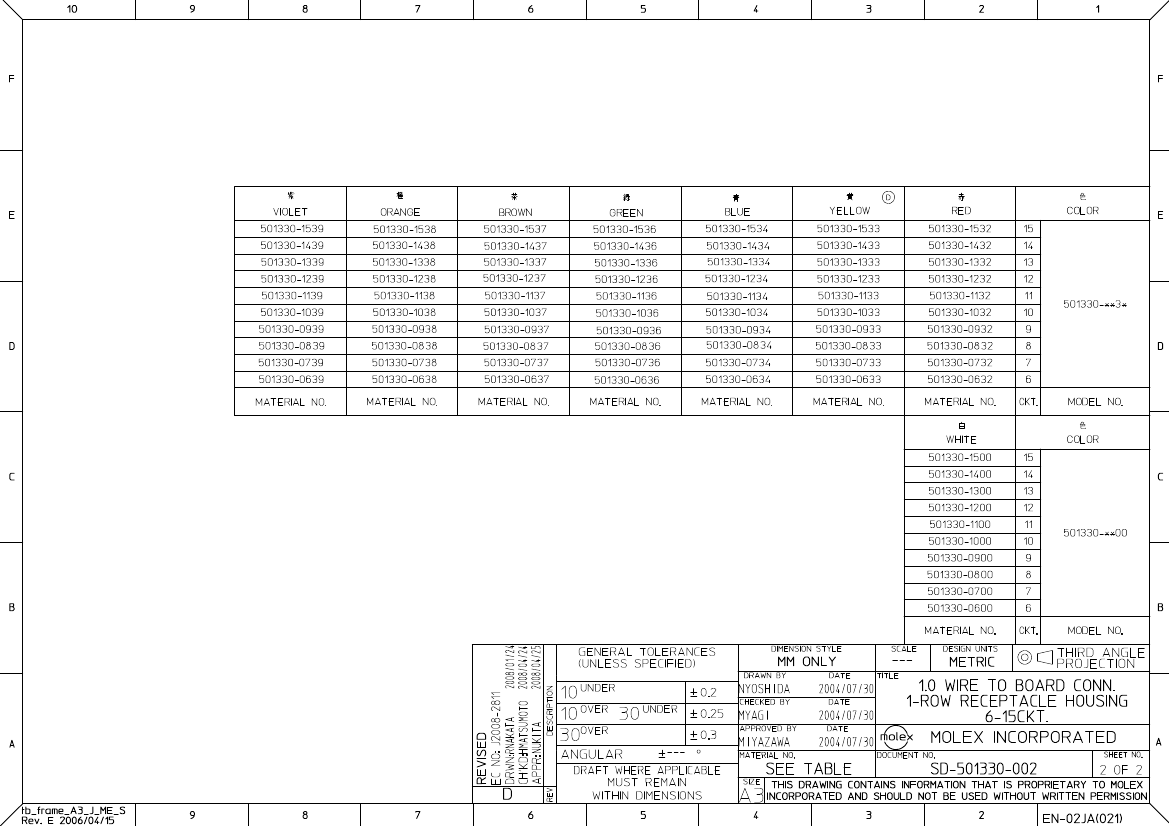

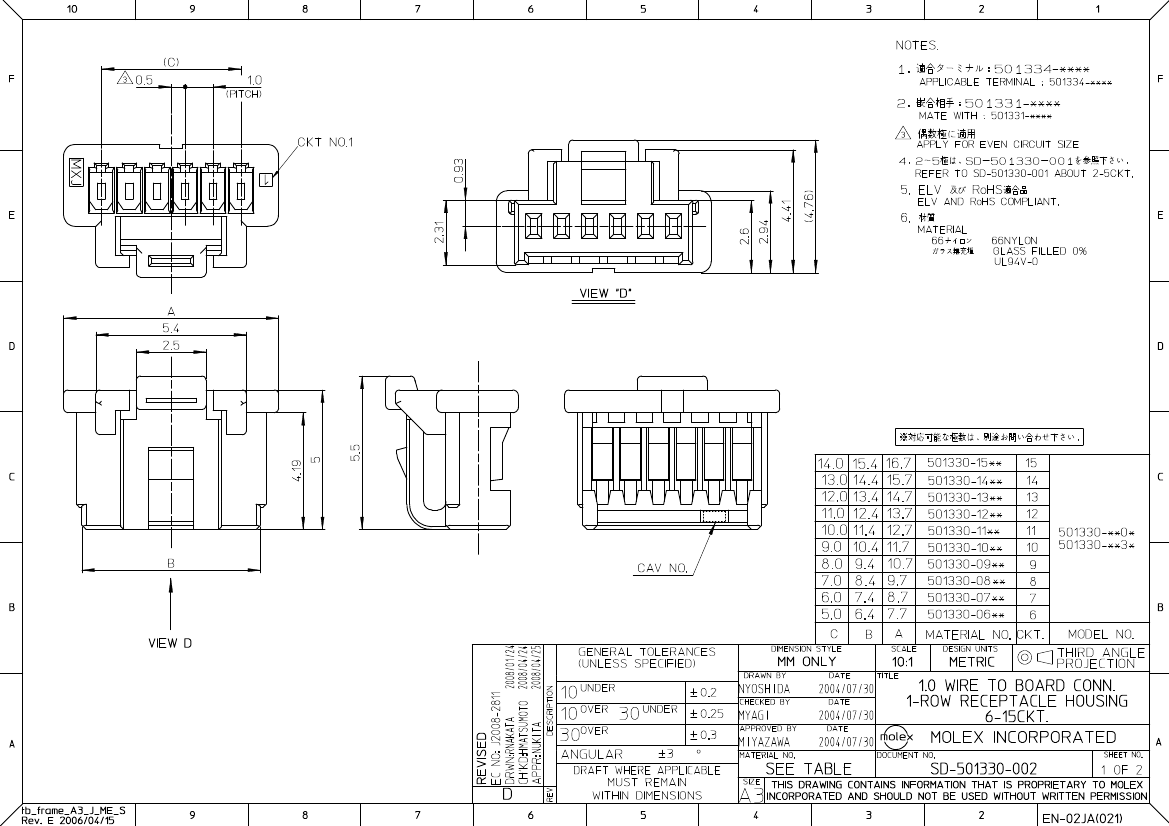

Sales Drawing
This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
