DC9PTE

Description
D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Receptacle
CategoryThe connector    The connector
File Size120KB,1 Pages
ManufacturerNorthern Technologies Corporation
Download Datasheet Parametric View All

DC9PTE Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Receptacle

DC9PTE Parametric

Parameter NameAttribute value
Objectid1152083709
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.494 inch
body length1.213 inch
Body/casing typeRECEPTACLE
Contactor designPREASSEM CONN
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance15 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance3000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation option 2LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Termination typeCRIMP
Total number of contacts9
Maximum wire diameter22 AWG
Minimum wire diameter26 AWG

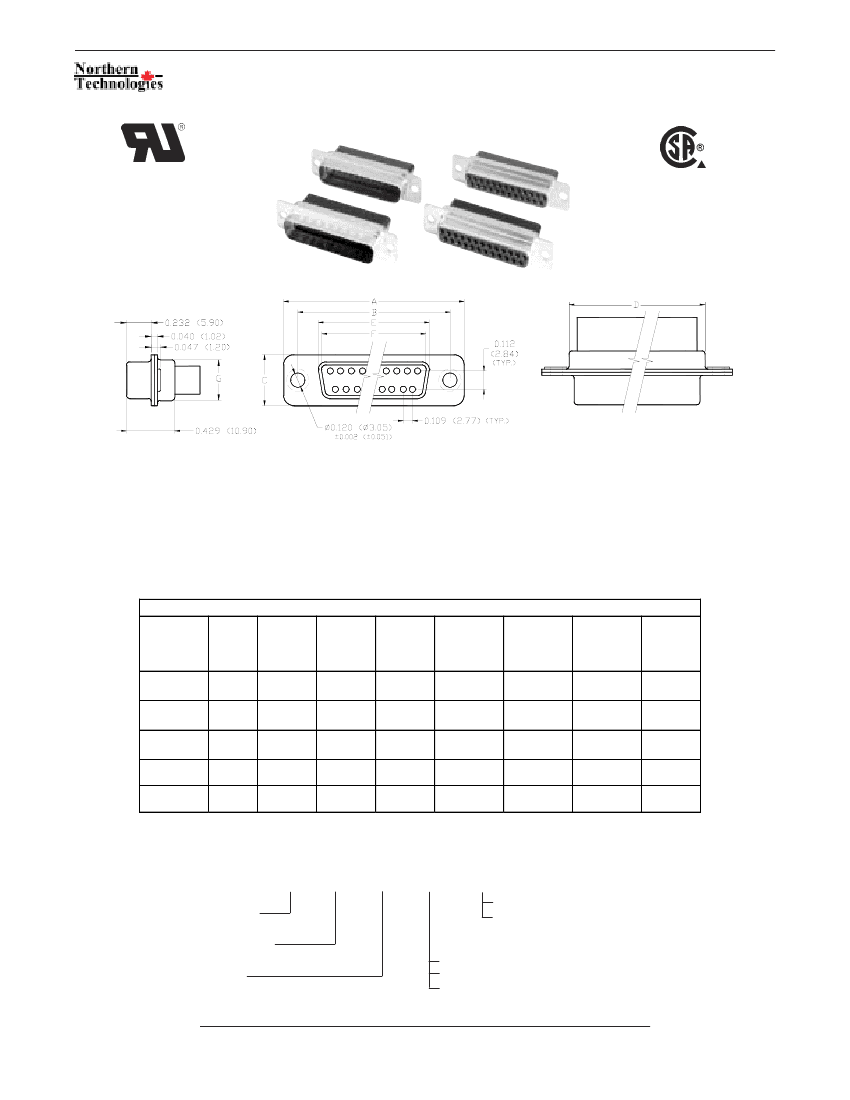

CRIMP CONNECT ORS - DC SERIES
UL Listing No. E196862
CSA File No. 213637
SPECIFICATIONS:
MECHANICAL
Shell:
Steel
Finish:
Yellow Zinc Chromate or Tin Plated.
Insulator:
Glass Filled PBT UL94V-0.
Temperature Range: -55
0
to +105
0
C.
Contacts:
See Page 30
ELECTRICAL
Voltage Rating:
Current Rating:
IR:
CR:
300 VDC.
3 Amps.
> 3000 Meg OHms.
< 15 Milliohms.
CRIMP CONNECTORS - DC SERIES - DIMENSIONS
No. of
Shell
A
B
C
D
Contacts
Size
±0.005
[±0.127]
±
0.005
±
0.005
±
0.005
[±0.127]
[±0.127]
[±0.127]
E
Max.
Female
±
0.005
INCHES [MM]
F
Min.
G
±
0.005
Male
±
0.005
[±0.127]
[±0.127]
[±0.127]
9
15
25
37
50
E
A
B
C
D
1.213
[30.81]
1.541
[39.14]
2.088
[53.04]
2.730
[69.34]
2.638
[67.00]
0.984
[24.99]
1.310
[33.27]
1.850
[46.99]
2.500
[63.50]
2.406
[61.11]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.605
[15.37]
0.759
[19.28]
1.089
[27.65]
1.626
[41.30]
2.261
[57.44]
2.178
[55.32]
0.643
[16.33]
0.971
[24.66]
1.511
[38.38]
2.159
[54.84]
2.064
[52.43]
0.666
[16.92]
0.994
[25.25]
1.534
[38.96]
2.182
[55.42]
2.079
[52.81]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.533
[13.54]
ORDER INFORMATION
DC
SERIES NAME
No OF CONTACTS
P:
MALE
S:
FEMALE
Tin Plated Shell w/ Ground Indents(Male Only)
TE:
T:
Tin Plated / No Indents (Female)
EMPTY:
Yellow Zinc Chromate
25
P
TE
C
C:
Rear Mount Clinch Nuts 0.150 [3.80]
EMPTY:
No Options
Consult Factory For Other Mounting Options
Specifications subject to change without notice
