0436500703 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0436500703

0436500703: Description3.00mm (.118") pitch micro-fit 3.0? header, surface mount compatible, single row,right angle, with press-fit metal retention clip, 7 circuits, tin (Sn) Plating, glow wire compatible; CategoryThe connector The connector; File Size153KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0436500703 Overview

3.00mm (.118") pitch micro-fit 3.0? header, surface mount compatible, single row,right angle, with press-fit metal retention clip, 7 circuits, tin (Sn) Plating, glow wire compatible

0436500703 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Is Samacsys	N
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0436500703

Active

microfit_30

3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row,

Right Angle, with Press-fit Metal Retention Clip, 7 Circuits, Tin (Sn) Plating, Glow Wire

Compatible

Documents:

3D Model

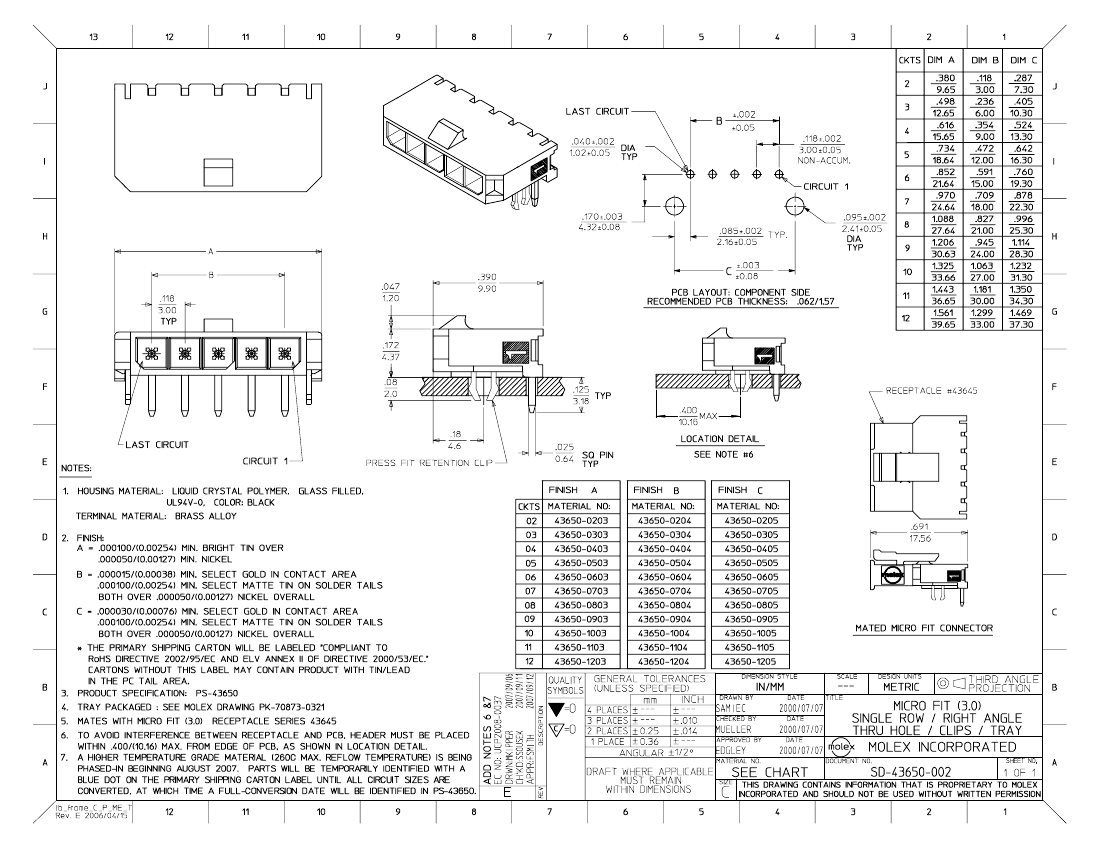

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-43650 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

General

Product Family

Series

Application

Comments

Overview

Product Literature Order No

Product Name

PCB Headers

43650

Wire-to-Board

High Temperature|Square Pin|Solder Type

microfit_30

USA-106

Micro-Fit 3.0™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Shrouded

Stackable

Black

94V-0

Yes

0.275 In

6.98 mm

Brass

Tin

High Temperature Thermoplastic

Right Angle

Yes

0.062 In

1.60 mm

Tray

0.118 In

3.00 mm

100

2.50

100

2.50

Yes

Fully

Search Parts in this Series

43650Series

Mates With

43645 Micro-Fit 3.0™ Receptacle Housing
