m
InI
-s
wITch
-m
ode
c
aPacITors
®
JDI’s Mini Switch-Mode
®

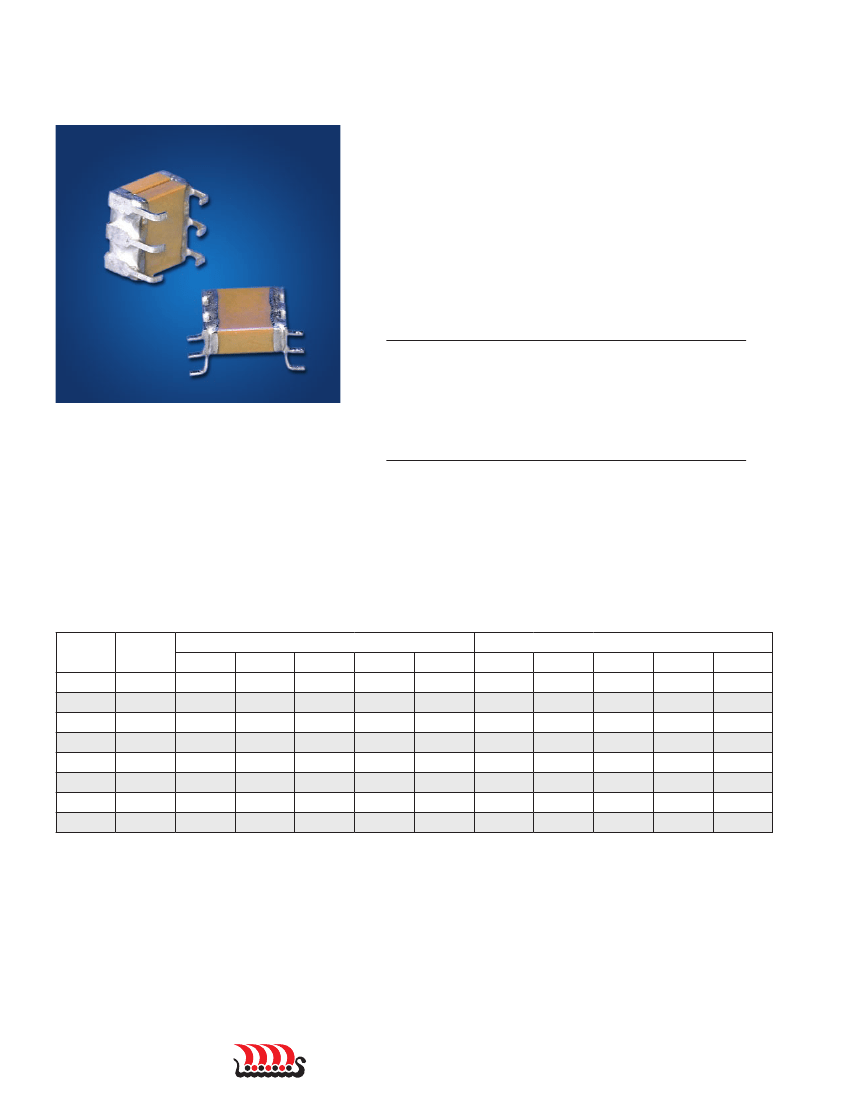

ceramic capacitors combine the
advantages of high capacitance found in tantalum capacitors
with very low ESR performance of ceramic capacitors. The “J”
and “L” lead configurations replace 1825 and 2225 SMT chips to
provide stress relief and prevent cracking due to thermal cycling
or mechanical board flexing. Another plus of the J-lead style is
that this configuration allows use of the same solder lands as
the SMT chips. See the Stacked Switch-Mode section for larger
values. See also the Technical Notes on soldering and handling
and suggested solder lands.
F
eatureS
• High Capacitance, Small Size
• Low ESR/ESL
• Leadframe reduces thermal & mechanical stress due to
board flexure and TCE mismatch
a
pplicationS
• DC-DC Converters
• Power Supply Input & Output Filters
c
apacitance
S
election
SIZE
CODE
P09
P29
P39
P49
P08
P28
P38
P48
EIA CHIP
SIZE
1825
1825
1825
1825
2225
2225
2225
2225
NP0 Max Capacitance (uF)
25V
0.056
0.11
0.16
0.22
0.068
0.13
0.20
0.27
50V
0.047
0.094
0.14
0.18
0.056
0.11
0.16
0.22
100V
0.039
0.078
0.11
0.15
0.047
0.094
0.14
0.18
200V
0.027
0.054
0.081
0.10
0.033
0.066
0.10
0.13
500V
0.018
0.036
0.054
0.07
0.027
0.054
0.081
0.10
25V
1.5
3.0
4.5
6.0
2.7
5.4
8.1
10
X7R Max Capacitance (uF)
50V
1.2
2.4
3.6
4.8
2.2
4.4
6.6
8.8
100V
0.75
1.5
2.2
3.0
1.5
3.0
4.5
6.0
200V
0.56
1.1
1.6
2.2
1.2
2.4
3.6
4.8
500V
0.27
0.54
0.81
1.0
0.39
0.78
1.1
1.5
24
www.johanson dielectrics.com
m
InI
-s
wITch
-m
ode
c
aPacITors
®
c
aSe
S
ize

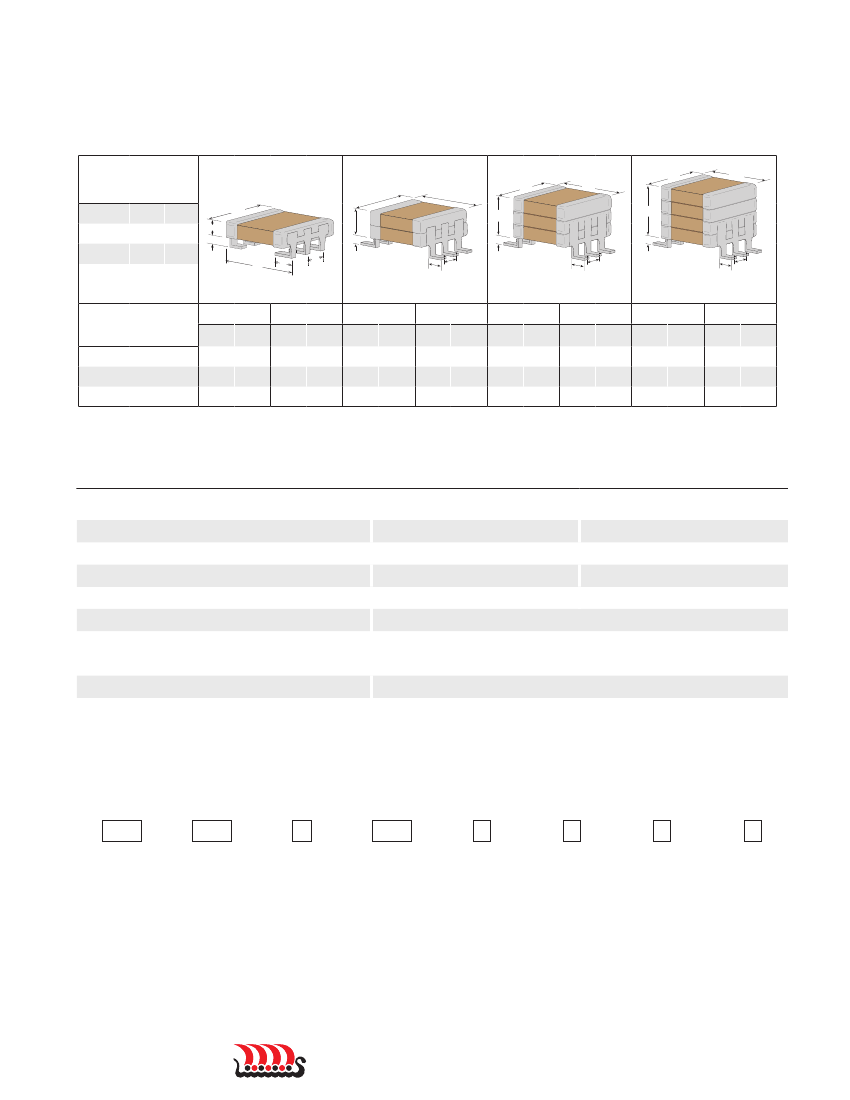

DIMENSIONS
APPLICABLE
TO ALL SIZES:
W
L
W
T
h
L
T
h
W
L
IN.
H ± .010
C TYP.
P ± .015
MM
T
h
W
.070 1.78
.100 2.54
.065 1.65
T
h
L
p
c
p
c
p
c
p
c
DIMENSIONS
APPLICABLE
TO SPECIFIC SIZES:
P08
IN.
.280
.270
.095
MM
7.11
6.86
IN.
P09
MM
6.1
6.86
IN.
0.24
0.27
P28
MM
7.11
6.86
4.83
IN.
0.28
0.27
0.19
P29
MM
6.1
6.86
IN.
0.24
0.27
0.19
P38
MM
7.11
6.86
IN.
0.28
0.27
P39
MM
6.1
6.86
IN.
0.24
0.27
P48
MM
7.11
6.86
9.65
IN.
0.28
0.27
0.38
P49
MM
6.1
6.86
9.65
0.24
0.27
0.38
L MAX
W MAX
T MAX
2.41 0.095 2.41
4.83 0.285 7.24 0.285 7.24
Note: J-Lead and L-Lead options are available on all sizes above
e
lectrical
c
HaracteriSticS
DIELECTRIC:
TEMPERATURE COEFFICIENT:
DISSIPATION FACTOR:
AGING:
INSULATION RESISTANCE (MIN. @ 25°C, WVDC)
DIELECTRIC STRENGTH:
TEST CONDITIONS:
OTHER:
NP0
0 ±30ppm/°C (-55 to +125°C)
0.1% max.
None
1000 ΩF or 100 GΩ, whichever is less
X7R
±15% (-55 to +125°C)
2.5% max.
-2.5% per decade hour
500 ΩF or 50 GΩ, whichever is less
For 500V Ratings: 750VDC, 25ºC, 50mA max
For 200V Ratings: 2xWVDC, 25ºC, 50mA max
For 25-100V Ratings: 2.5xWVDC, 25ºC, 50mA max
1kHz ±50Hz;1.0±0.2 VRMS
See page 78 for additional dielectric specifications.
H
ow to
o
rder
- m
ini
S
witcH
m
ode®
500
VOLTAGE
250
500
101
201
501
=
=
=
=
=
25 V
50 V
100 V
200 V
500 V
Part number written: 500P28W395KJ4U
P28
SIZE
See Chart
W
DIELECTRIC
N = NP0
W = X7R
395
CAPACITANCE
1st two digits are
significant; third digit
denotes number of
zeros.
103 = 0.01 μF
105 = 1.0 μF
106 = 10 uF
K
TOLERANCE
J = ±5%
K = ±10%
M = ±20%
Z = +80% -20%
J
TERMINATION
J = “J” Leads
(formed in)
L = “L” Leads
(formed out)
4
MARKING
3 = Standard
4 = Unmarked
U
PACKING
U = Tape and Reel
16mm, 13” Reel
NONE = Bulk pack
H = High Reliability
testing per customer
requirements
S = Special Part
www.johanson dielectrics.com
