Part Number:
Status:
Description:
5008090000
Active
Mini-HMC™ Shielded Panel-Mount I/O Receptacle Shell, 40 Circuits, 8 Rows,
Polarizing Key Type A
Documents:
3D Model

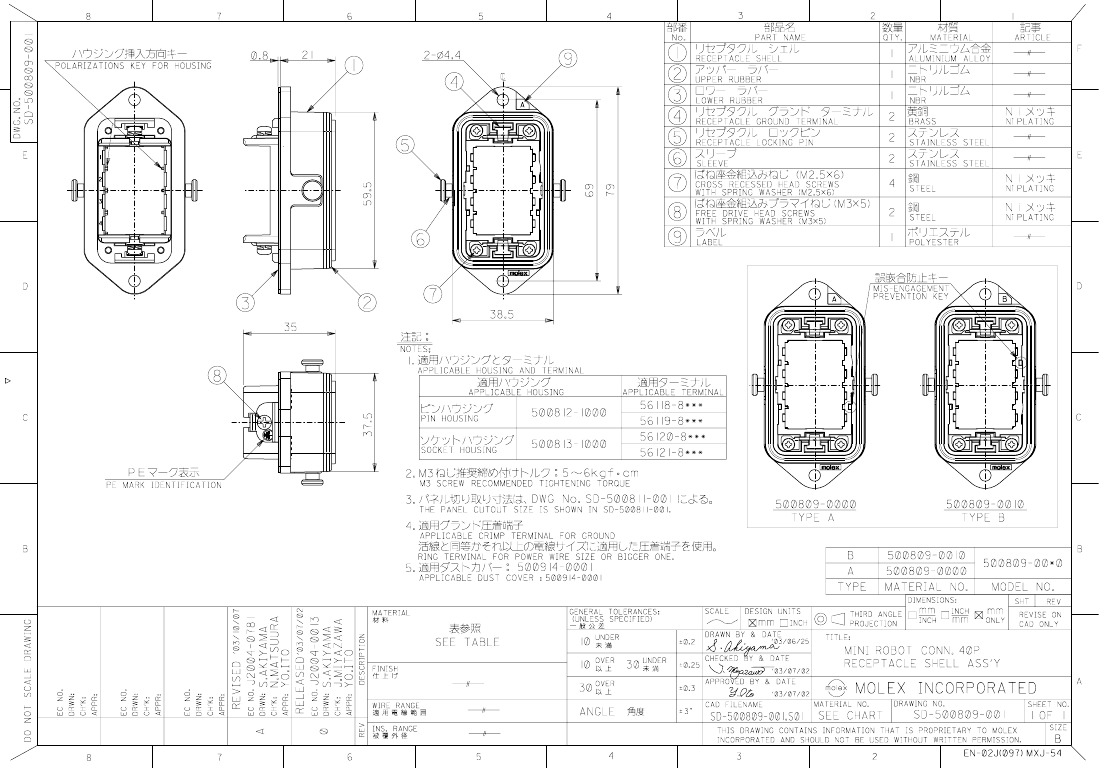

Drawing (PDF)
Product Specification PS-500810-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
I/O Connectors
500809
Panel-Mount, Wire-to-Wire
Panel Mount Shell
Mini-HMC™
N/A
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Waterproof / Dustproof Type
N/A
N/A
40
50
Receptacle
Yes
Yes
Brass
Copper
Copper
1
Vertical
Bag
Screws
0.000 In
0.00 mm
20
0.5
20
0.5
No
1
N/A
-55°C to +105°C
Surface Mount
Yes
IP65
Search Parts in this Series
500809Series
Mates With
500810-0000
Use With
500813-1000 , 56120-8428 , 56120-8528 ,
56121-8428 , 56121-8528
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
2.5A
Full Shield
Yes
250V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
PS-500810-001, RPS-500810-001
