EX311-12.0MHZ-STBY3-TOL1-TEMP1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> EX311-12.0MHZ-STBY3-TOL1-TEMP1

Preview

EX311-12.0MHZ-STBY3-TOL1-TEMP1: DescriptionSeries - Fundamental Quartz Crystal, 12MHz Nom; CategoryPassive components Crystal/resonator; File Size85KB，1 Pages; ManufacturerINFICON EDC Inc

Download Datasheet Parametric View All

EX311-12.0MHZ-STBY3-TOL1-TEMP1 Overview

Series - Fundamental Quartz Crystal, 12MHz Nom

EX311-12.0MHZ-STBY3-TOL1-TEMP1 Parametric

Parameter Name	Attribute value
Objectid	1529833035
Reach Compliance Code	unknown
Other features	AT STRIP
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.003%
frequency tolerance	10 ppm
Manufacturer's serial number	EX31
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L11.4XB4.5XH4.5 (mm)/L0.449XB0.177XH0.177 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

EDC

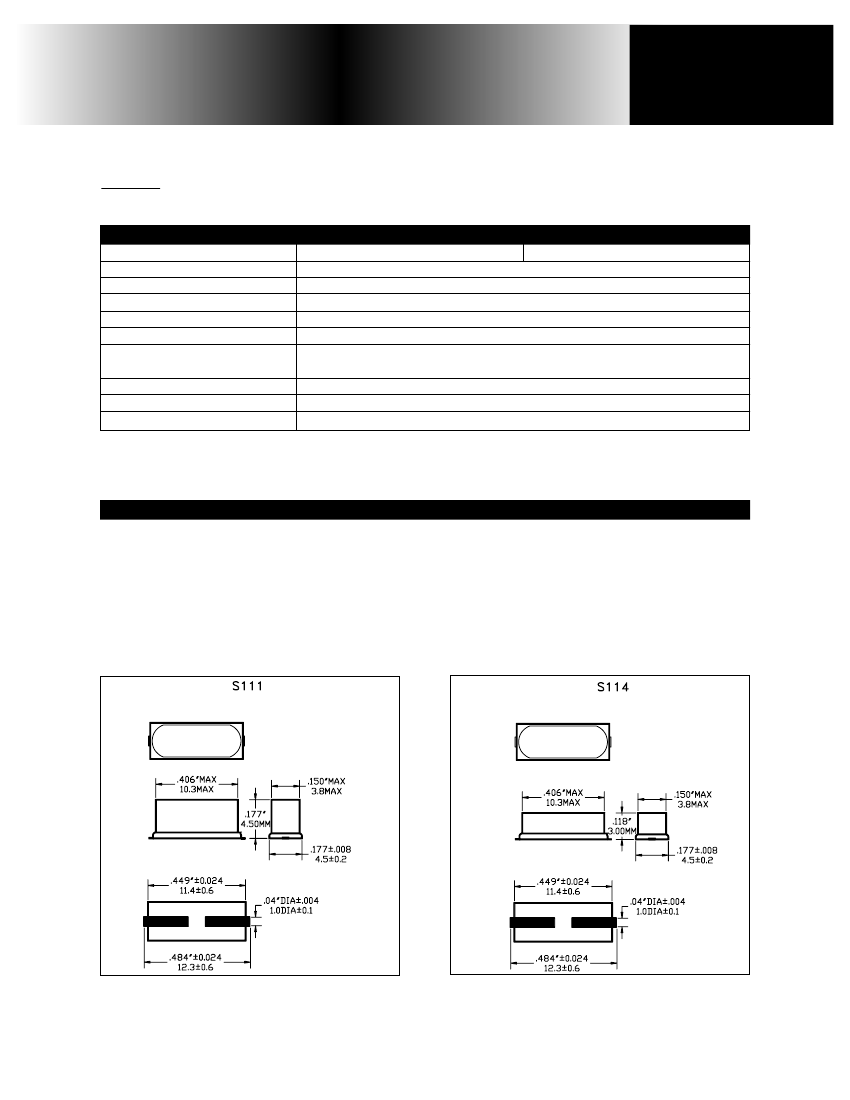

Features: Low Profile, Fundamental, Tape & Reel Available, AT Strip

EX 31

Series

COMMERCIAL

SMD Crystal

PARAMETERS

Package Part#

Frequency Range (MHz)

Overtone

Frequency Calibration (ppm)

Frequency Stability (ppm)

Operating Temp. Range (C)

Max. Resistance Level (ohms)

Resonance Type

Maximum Drive Level (uW)

Test Drive Level (uW)

EX311

S111

EX312

S114

3.5 ~ 24

Fundamental

+/- 30

+/- 50

0 ~ +70

3.5MHz~ 150, 4.0MHz~ 120, 5.0MHz~ 100

6.0MHz~ 75, 12.0MHz~ 60, 15.0MHz~ 50

Series or Parallel (Specify 10 ~ 50 pF)

500

50

STANDARD AVAILABLE OPTIONS

Frequency Calibration (ppm): +/- 10, 14, 20, 25, 50

Frequency Stability (ppm): +/- 20, 25, 50 (Frequency and Temp. Range Dependent)

Operating Temp. Range (C): Downward to -40 and upward to +105 (Frequency Range Dependent)

Max. Resistance Level (ohms): Lower values are available (Frequency Range Dependent)

All specifications subject to change. Please contact factory for current specifications. 9/98
