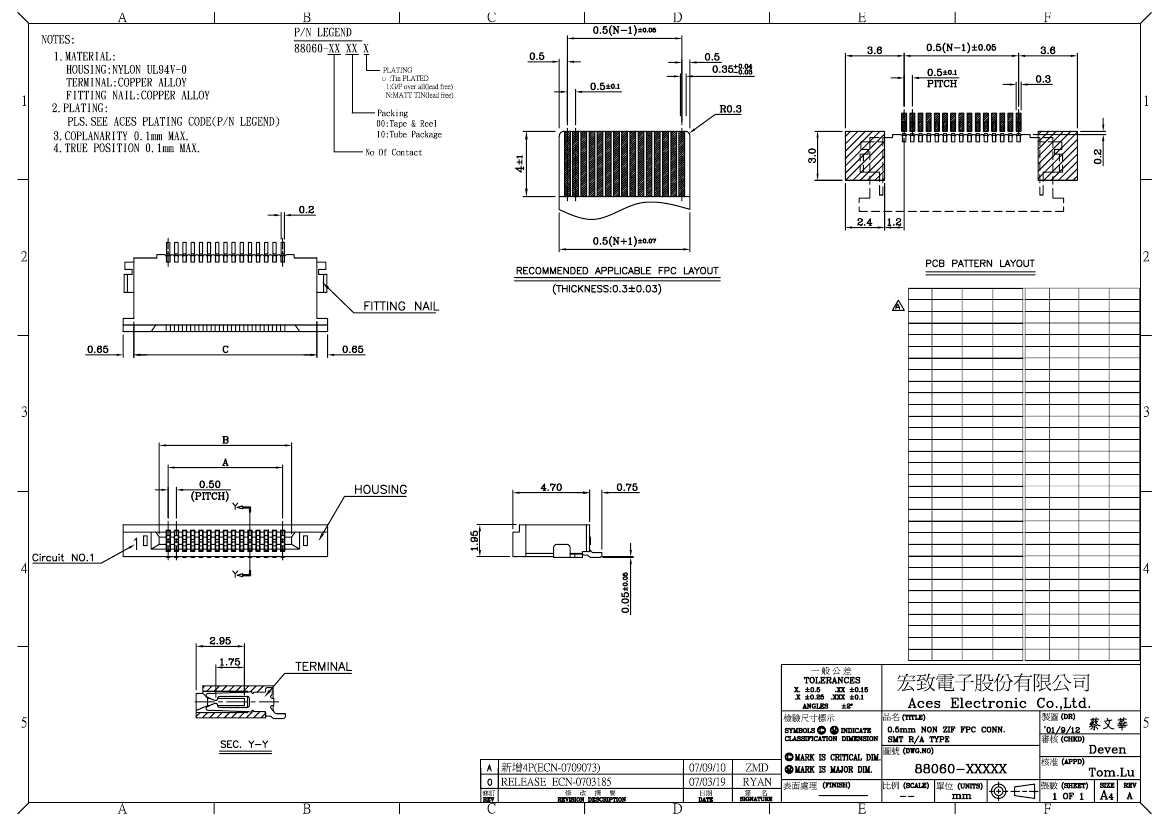

88060-4310N: DescriptionCard Edge Connector, 43 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size219KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

88060-4310N Overview

Card Edge Connector, 43 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

88060-4310N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305615814
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.077 inch
subject depth	0.215 inch
body length	0.992 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Matte Tin (Sn)
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	43

Preview

Download Datasheet

View All

CKT Dim A

4

1.5

5

2.0

6

2.5

7

3.0

8

3.5

9

4.0

10

4.5

11

5.0

12

5.5

13

6.0

14

6.5

15

7.0

16

7.5

17

8.0

18

8.5

19

9.0

20

9.5

21

10.0

22

10.5

23

11.0

24

11.5

25

12.0

26

12.5

27

13.0

28

13.5

29

14.0

30

14.5

31

15.0

32

15.5

33

16.0

34

16.5

Dim B

2.6

3.1

3.6

4.1

4.6

5.1

5.6

6.1

6.6

7.1

7.6

8.1

8.6

9.1

9.6

10.1

10.6

11.1

11.6

12.1

12.6

13.1

13.6

14.1

14.6

15.1

15.6

16.1

16.6

17.1

17.6

Dim C

5.7

6.2

6.7

7.2

7.7

8.2

8.7

9.2

9.7

10.2

10.7

11.2

11.7

12.2

12.7

13.2

13.7

14.2

14.7

15.2

15.7

16.2

16.7

17.2

17.7

18.2

18.7

19.2

19.7

20.2

20.7

CKT Dim A Dim B

35

17.0

18.1

36

17.5

18.6

37

18.0

19.1

38

18.5

19.6

39

19.0

20.1

40

19.5

20.6

41

20.0

21.1

42

20.5

21.6

43

21.0

22.1

44

21.5

22.6

45

22.0

23.1

46

22.5

23.6

47

23.0

24.1

48

23.5

24.6

49

24.0

25.1

50

24.5

25.6

51

25.0

26.1

52

25.5

26.6

53

26.0

27.1

54

26.5

27.6

55

27.0

28.1

56

27.5

28.6

57

28.0

29.1

58

28.5

29.6

59

29.0

30.1

60

29.5

30.6

61

30.0

31.1

62

30.5

31.6

63

31.0

32.1

64

31.5

32.6

65

32.0

33.1

Dim C

21.2

21.7

22.2

22.7

23.2

23.7

24.2

24.7

25.2

25.7

26.2

26.7

27.2

27.7

28.2

28.7

29.2

29.7

30.2

30.7

31.2

31.7

32.2

32.7

33.2

33.7

34.2

34.7

35.2

35.7

36.2
