095B19-C0B000 datasheet, PDF - EEWORLD Datasheet

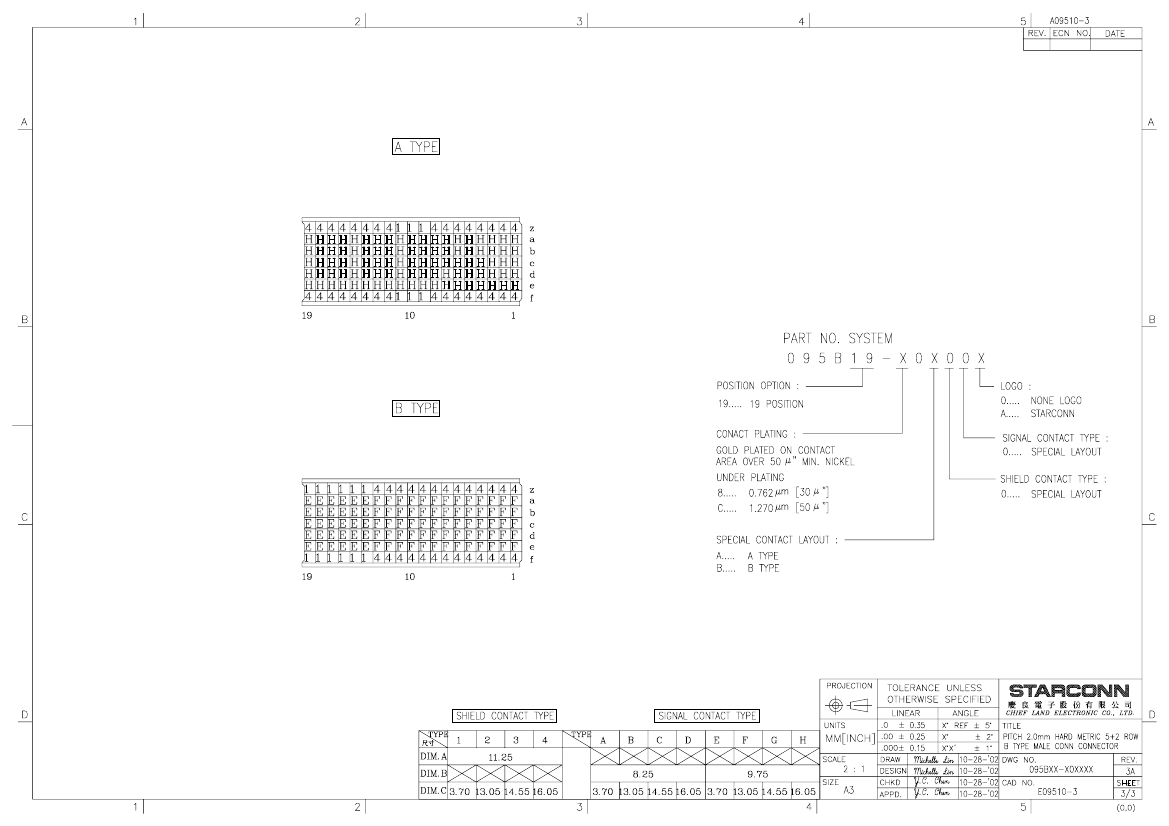

095B19-C0B000: DescriptionBoard Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Locking, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerStarconn Connectors

Download Datasheet Parametric View All

095B19-C0B000 Overview

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Locking, Gray Insulator, Receptacle

Parameter Name	Attribute value
Objectid	303884153
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/O LOGO, SPL PIN LAYOUT
body width	0.606 inch
subject depth	0.53 inch
body length	1.508 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
maximum insertion force	.4448 N
Insulation resistance	10000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	095B
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.514 inch
Terminal pitch	2.0066 mm
Termination type	WIRE WRAP
Total number of contacts	133
Evacuation force-minimum value	.139 N
