Specifications

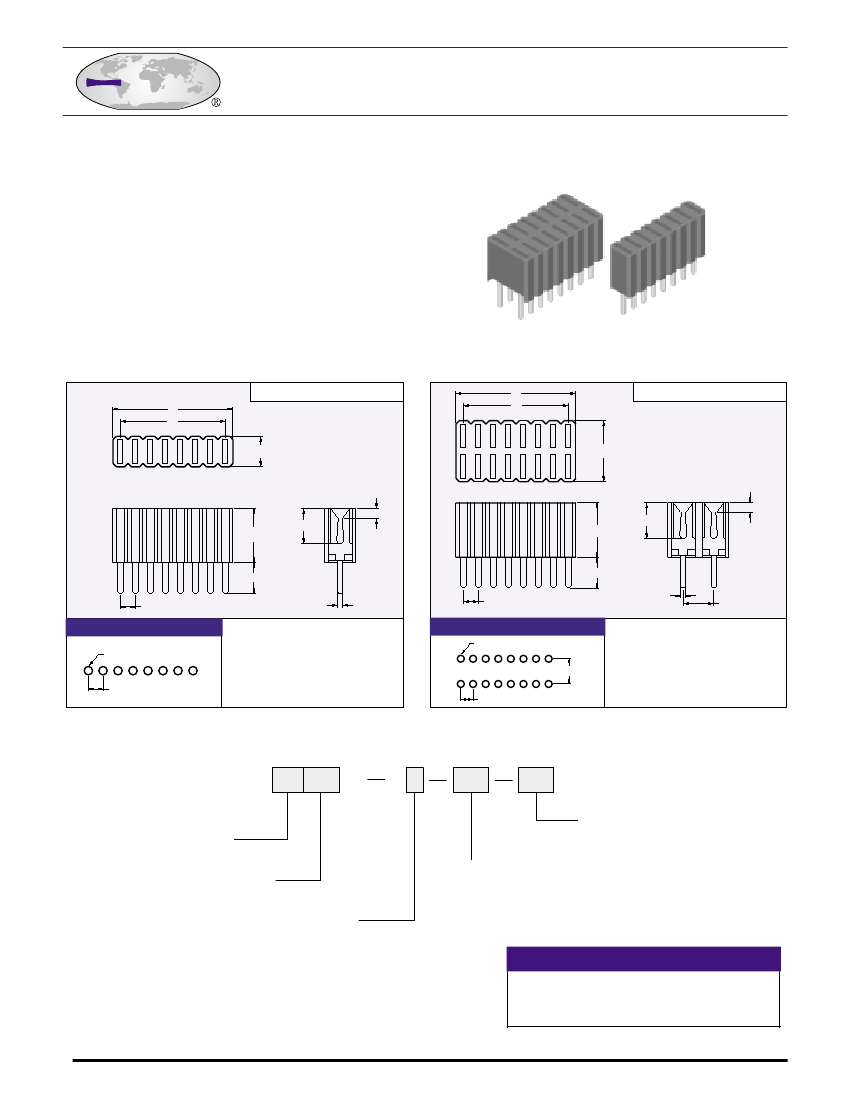

.050 [1.27] Low Profile Socket
9600S Series Sockets
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Contact Resistance:
20 m ohms max.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max Operating Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
SINGLE ROW
A
B
.102 [2.60]
A
B
DOUBLE ROW
.197 [5.00]
.181 [4.6]
.118 [3.0]
.033 [.85]
.181 [4.6]
.118 [3.0]
.033 [.85]
TAIL LENGTH
.050 [1.27]
Ø .018 [.46]
.050 [1.27]
TAIL LENGTH
Ø .018 [.46]
.100 [2.54]
PCB LAYOUT
Ø.028+.003 [0.7+.05]
PCB LAYOUT
A
= .050 x No. of Pos.
B
= .050 x (No. of Cont. -1)
Ø.028+.003 [0.7+.05]
.100 [2.54]
A
= .050 x No. of Pos.
B
= .050 x (No. of Cont./2 -1)
.050 [1.27]
DIMENSIONS ARE IN INCHES [MM]
.050 [1.27]
PART NUMBERING
96 XX
S
SERIES CODE
.050 SOCKETS
A X
XX
XX
CONTACT PLATING
.000050” Nickel underplate
MATING
TAIL
00
= 100µ”Sn
100µ”Sn
03
= Au Flash
Au Flash
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
NO. OF CONTACTS
SINGLE ROW =
03 - 40
DOUBLE ROW =
06 - 98
100 =
01
TAIL LENGTH
01
= .094 [2.40] STANDARD
02
= .060 [1.50]
03
= .118 [3.00]
BODY STYLE
1
= SINGLE ROW
2
= DOUBLE ROW
CONSULT FACTORY FOR OTHER TAIL LENGTH OPTIONS
SUGGESTED MATING CONNECTORS
SINGLE ROW:
96XX-AX-01-XX
(F-05)
96XX-BX-01-XX
(F-06)
96XX-CX-01-XX-XXX (F-07)
DOUBLE ROW:
96XX-JX-X1-XX
(F-14)
96XX-K1-01-XX
(F-15)
96XX-C2-01-XX-XXX (F-07)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
