This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0878320623
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-
free, 6 Circuits, 0.76µm (30µ") Gold (Au) Plating, with Pick-and-Place Cap, without
Locking Window, with Center Polarization Slot, PCB Locator, Tube
Documents:
Drawing (PDF)
Product Specification PS-87831-027 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
87832
Wire-to-Board
With Cap|Contact Molex for application in automotive
industry
milligrid
Milli-Grid™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Shrouded
No
6
6
Black
No
94V-0
No
No
Yes
No
Phosphor Bronze
Gold
Tin
Nylon
2
Vertical
Yes
None

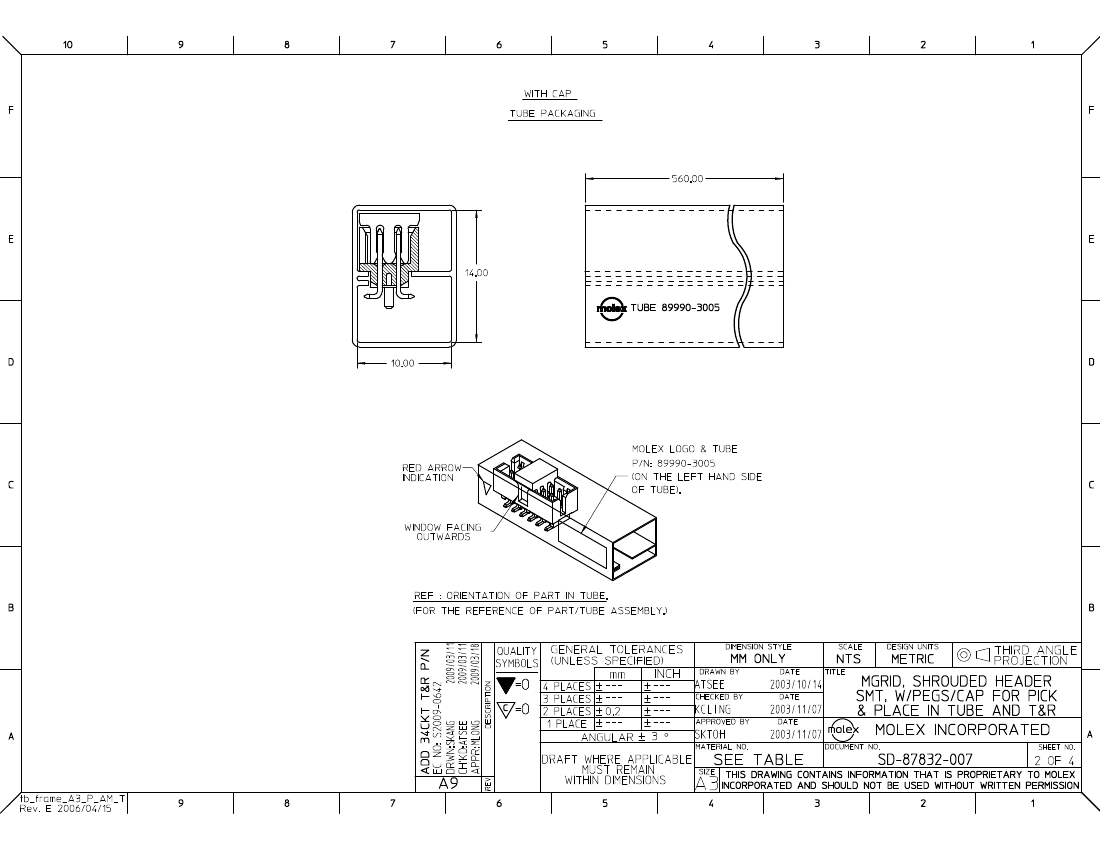

Tube
0.079 In
2.00 mm
0.079 In
2.00 mm
30
0.76
75
1.88
Center Slot
No
Pick and Place Cap
Fully
Search Parts in this Series
87832Series
Mates With
50394 Wire-to-Board Terminals. 51110
Wire-to-Board Crimp Housing. 87568 Wire-
to-Board IDT Housings. 79107 Board-to-
Board Top Entry Through Hole Receptacle.
79108 Board-to-Board FFC/FPC Top Entry
Through Hole Receptacle. L
Stackable
Temperature Range - Operating
Termination Interface: Style
No
-55°C to +105°C
Surface Mount
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
Reflow Capable (SMT only)
1
260
Material Info
Reference - Drawing Numbers
Product Specification

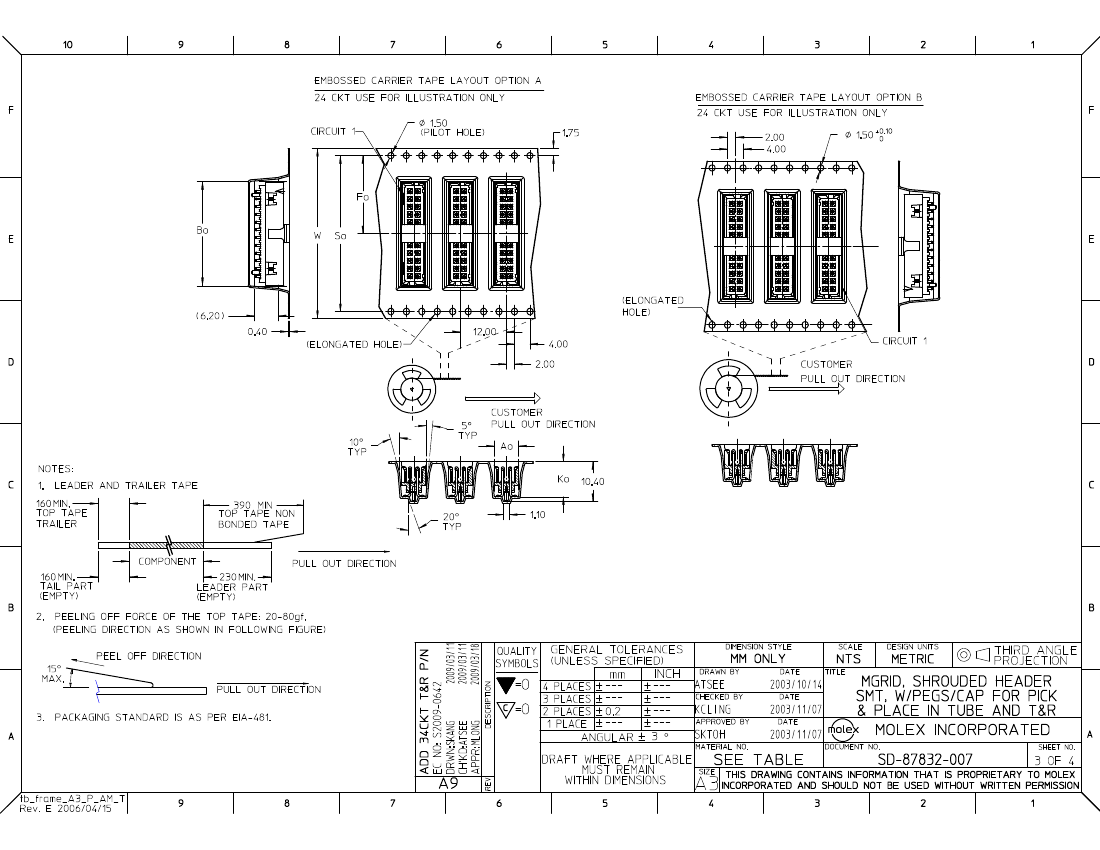

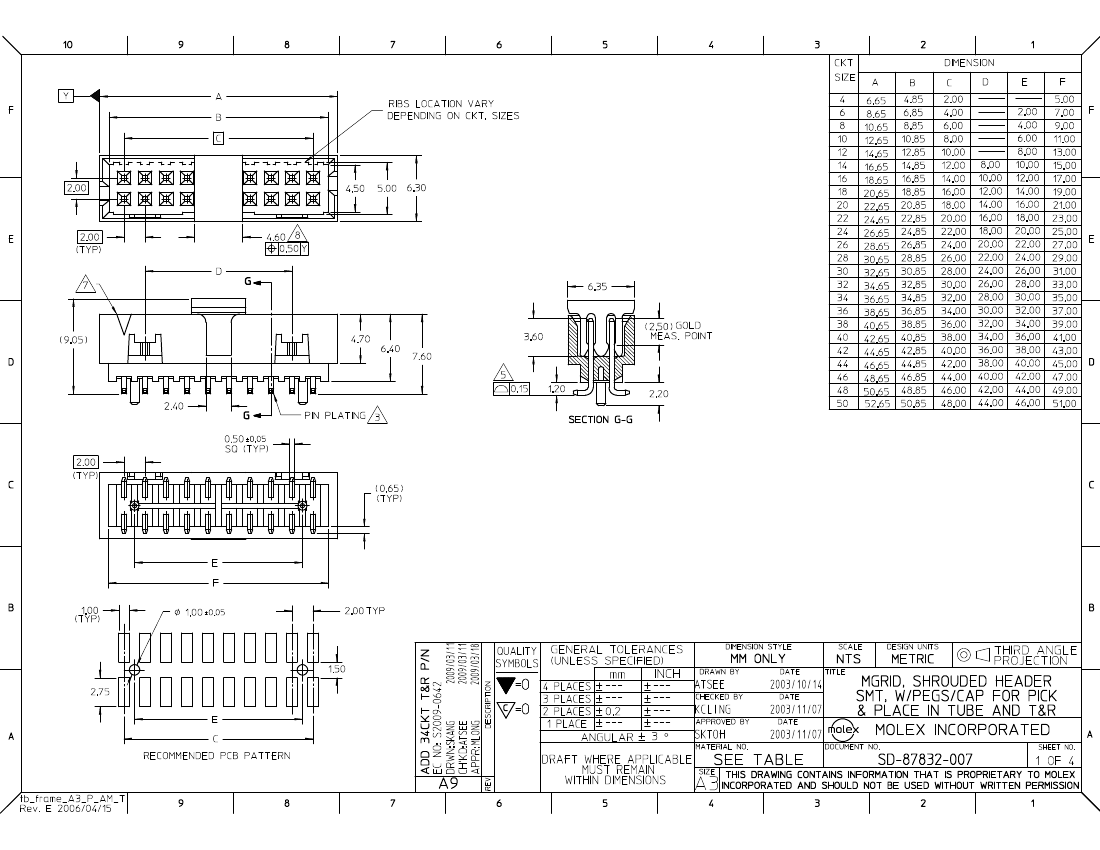

Sales Drawing
PS-87831-027
SD-87832-007
This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
