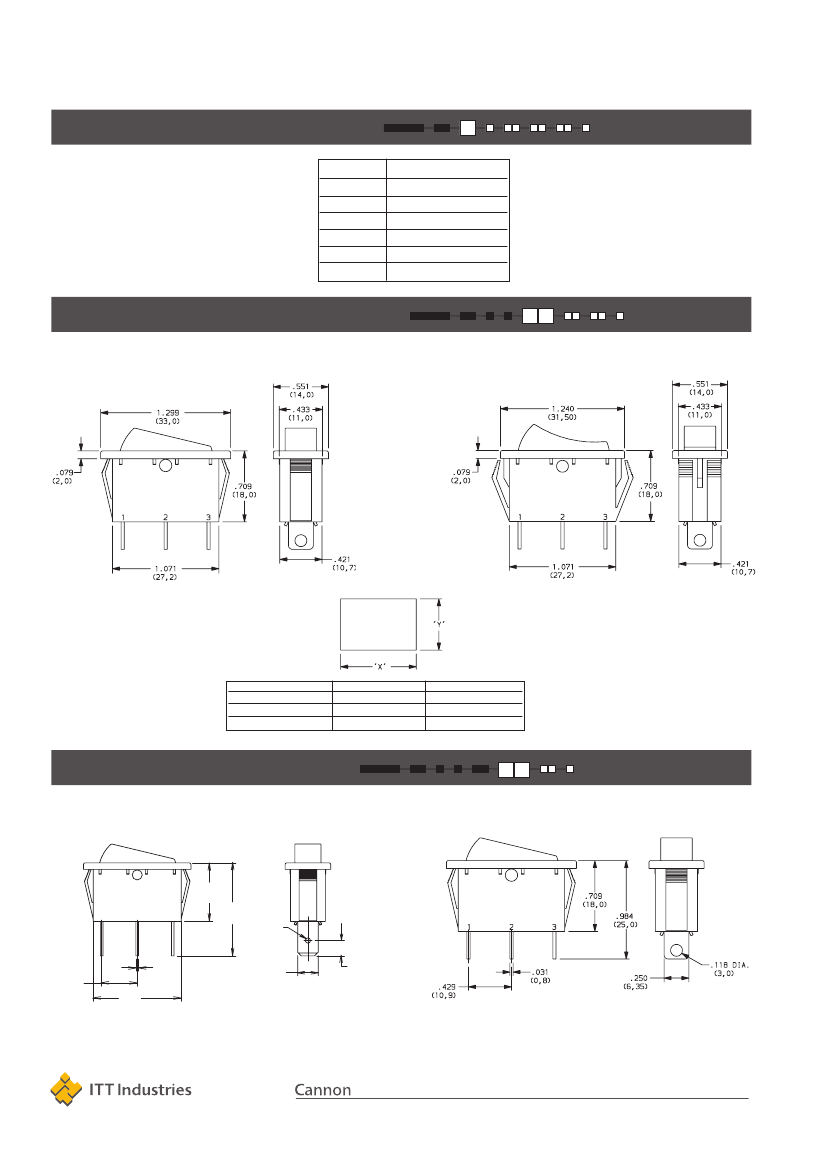

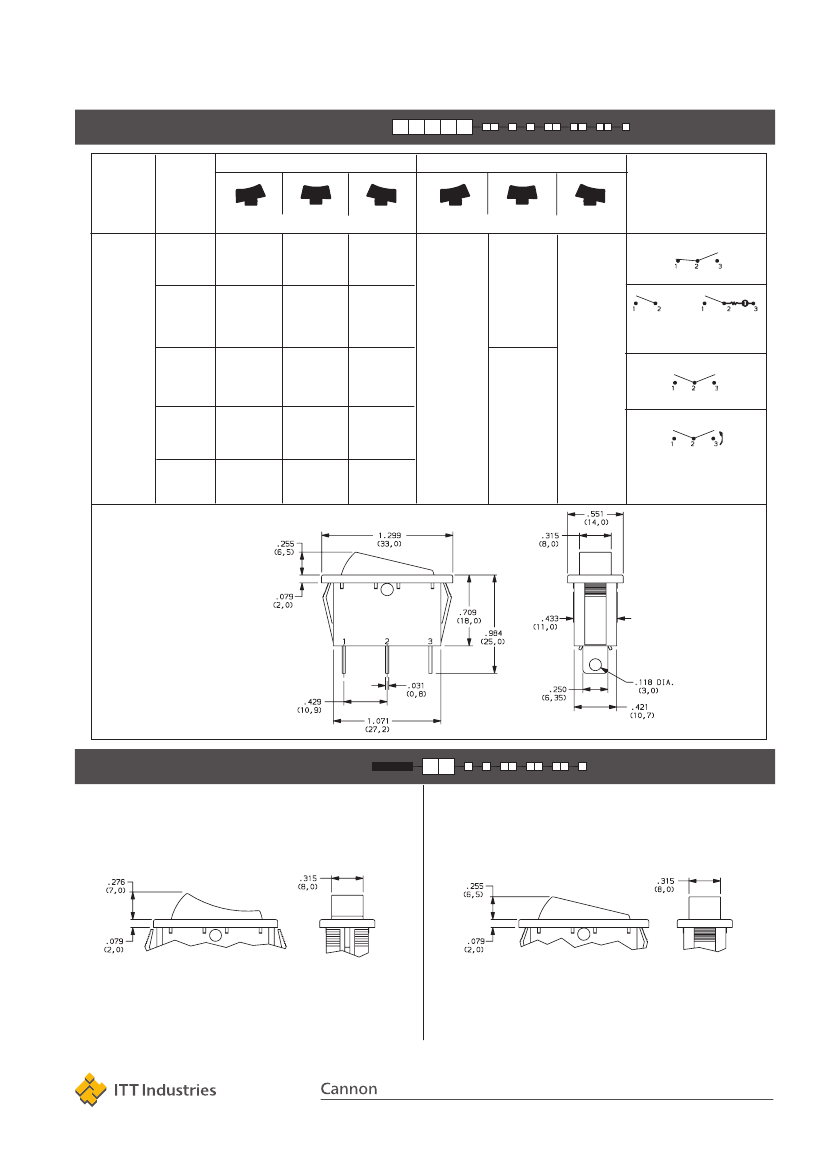

C&K CM Series
Single Pole Power Rocker Switches
Features/Benefits
•
Illuminated versions available
•
Easy to install snap-in design
•
Multiple actuator and termination
styles to choose from
Typical Applications
•
•
•
•
Computers and peripherals
Power supplies
Industrial equipment
Small appliances
Specifications
CONTACT RATING:
UL/CSA: 16 AMPS @ 125 VAC, 1/8 HP;
10 AMPS @ 250 VAC, 1/3 HP.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, gloss or
matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, gloss or matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

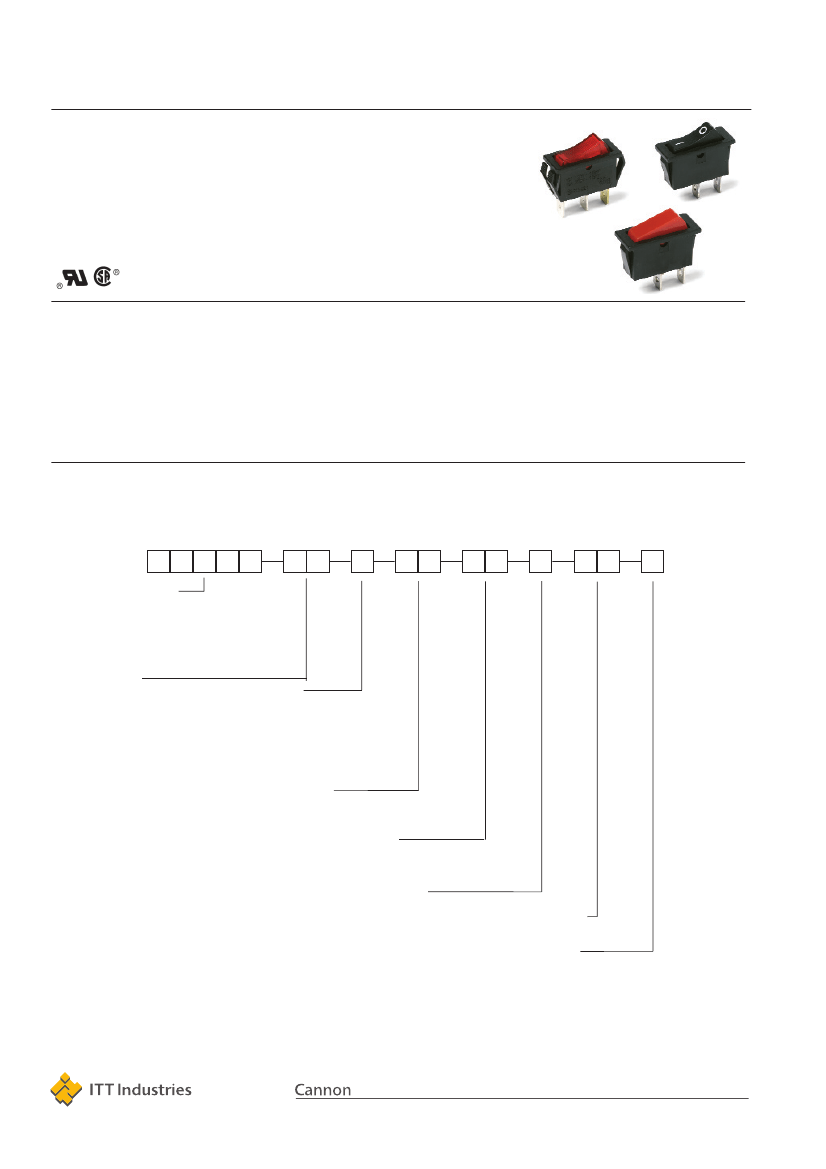

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages 20 thru 22. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CM101
SPDT On-None-On
CM102
SPST On-None-Off
CM103
SPDT On-Off-On
CM107
SPDT On-Off-Mom.
CM12
*
SPST On-None-Off
Actuator
J1
Rocker
J3
Illuminated rocker
J6
Rocker
J8
Illuminated rocker
Actuator Color
2
(STD). Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
(STD.) Snap-in, black
S4
(STD.) Snap-in, black
S1
Snap-in, white
Termination
S3
Snap-in, white
05
(STD.) .250” quick connect
07
Solder lug
Actuator Marking
(NONE)
(STD.) No marking
D
ON-OFF
H
”O l” - international ON-OFF
P
”O -” international ON-OFF
*
CM12 - for switches with both marking and illumination
Contact Rating
QA
(STD.) Silver
Lamp Rating
(NONE)
(STD.) No lamp
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inch (mm)
Dimensions subject to change
20
www.ittcannon.com
C&K CM Series
Single Pole Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CM101
ON
NONE
ON
N/A
CM102
ON
NONE
OFF
OR
For Illuminated
Version
2-3
SP
2-1
CM103
ON
OFF
ON
OPEN
CM107
ON
OFF
MOM.
CM12 *
ON
NONE
OFF
*
CM12 - for switches with both
marking and illumination
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J6
J8
ROCKER
ILLUMINATED ROCKER
NOTE:
J3 actuator available with CM102 switch function only.
NOTE:
J8 actuator available with CM102 switch function only.
Dimensions are shown: Inch (mm)
Dimensions subject to change
21
www.ittcannon.com
C&K CM Series
Single Pole Power Rocker Switches
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
(STD.) BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
2
1
3
R
A
G
MOUNTING STYLE/COLOR
S2
S1
(STD.) SNAP-IN, BLACK
SNAP-IN, WHITE
S4
S3
(STD.) SNAP-IN, BLACK (SHORT FRAME)
SNAP-IN, WHITE
PANEL
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
1.189-.004 (30,2-0,1)
1.197-.004 (30,4-0,1)
1.212-.004 (30,8-0,1)
“Y”
0.441+.004 (11,2+0,1)
0.441+.004 (11,2+0,1)
0.441+.004 (11,2+0,1)
TERMINATION
05
(STD.) .250” QUICK CONNECT
07
SOLDER LUG
.709
(18,0)
1
2
3
1.124
(28,55)
.063 DIA.
(1,6ø)
.185
(4,7)
.429
(10,9)
.031
(0,8)
1.071
(27,2)
.250
(6,35)
NOTE:
Available with CM101 & CM102 switch functions only.
Dimensions are shown: Inch (mm)
Dimensions subject to change
22
www.ittcannon.com
C&K CM Series
Single Pole Power Rocker Switches
ACTUATOR MARKING
NONE
(STD.) NO MARKING
D
ON-OFF
H
P
O-
Ol
NOTE:
Orientation of actuator marking and terminals.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/8 HP
10 AMPS @ 250 VAC, 1/3 HP (UL/CSA).
QA
(STD.)
LAMP RATING
(NONE)
NO LAMP
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
NOTE:
Lamp rating for J3 & J8 actuator option.
Dimensions are shown: Inch (mm)
Dimensions subject to change
23
www.ittcannon.com
