A-43009-0014: Description2.54mm (.100) pitch KK? solid header, vertical, 5 circuits, with kinked PC tails; File Size133KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-43009-0014 Overview

2.54mm (.100) pitch KK? solid header, vertical, 5 circuits, with kinked PC tails

Preview

Download Datasheet

View All

This document was generated on 03/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

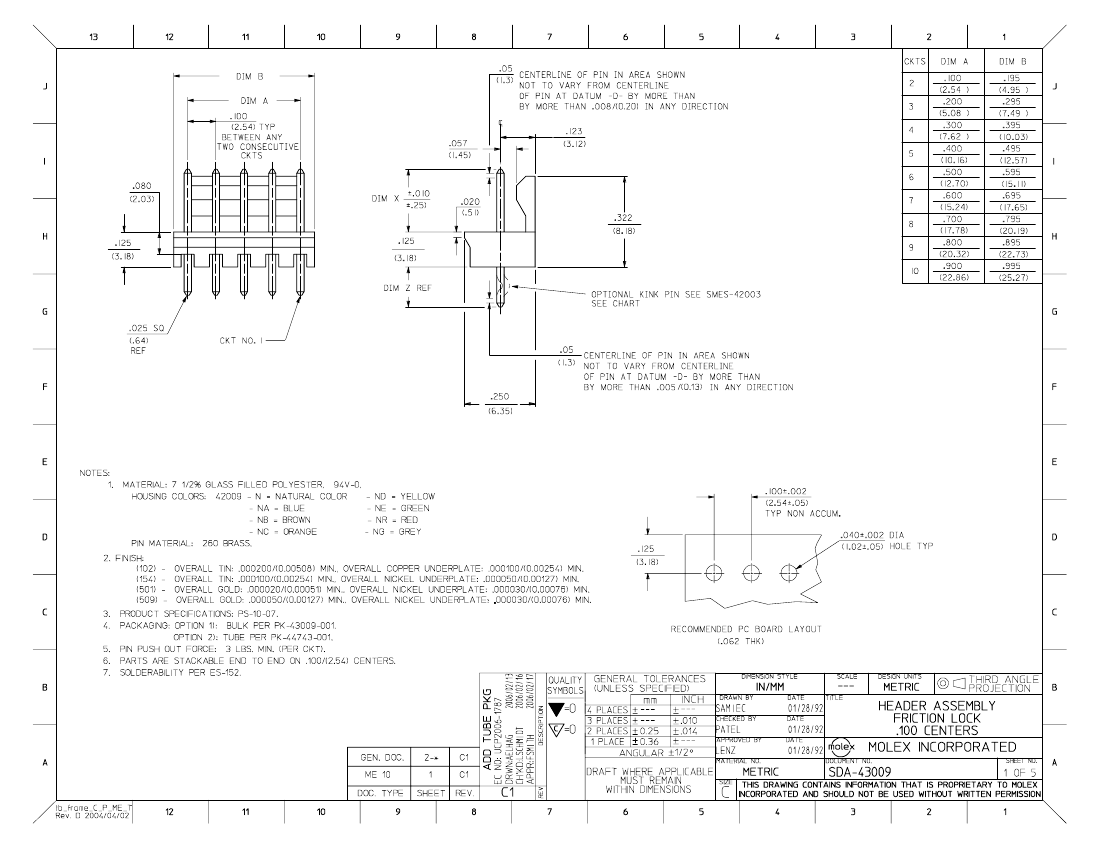

Drawing (PDF)

0022235021

Active

2.54mm (.100") Pitch KK® Solid Header, Vertical, 2 Circuits, with Kinked PC Tails

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Application

Product Name

PCB Headers

43009

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

Yes

Brass

Tin

Polyester

Vertical

0.140 In

3.56 mm

Yes

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

200

0°C to +75°C

Through Hole

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

43009Series

Mates With

2695 , 6471 , 7880 , 4455 , 7720 , 40555

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V
