41792-0020: Description3.96mm (.156") pitch KK solid header, right angle, with friction lock, 3 circuits, gold (Au) plating; File Size204KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

41792-0020 Overview

3.96mm (.156") pitch KK solid header, right angle, with friction lock, 3 circuits, gold (Au) plating

Preview

Download Datasheet

View All

This document was generated on 04/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0026615030

Active

KK®

3.96mm (.156") Pitch KK® Solid Header, Right Angle, with Friction Lock, 3 Circuits,

Gold (Au) Plating

Documents:

3D Model

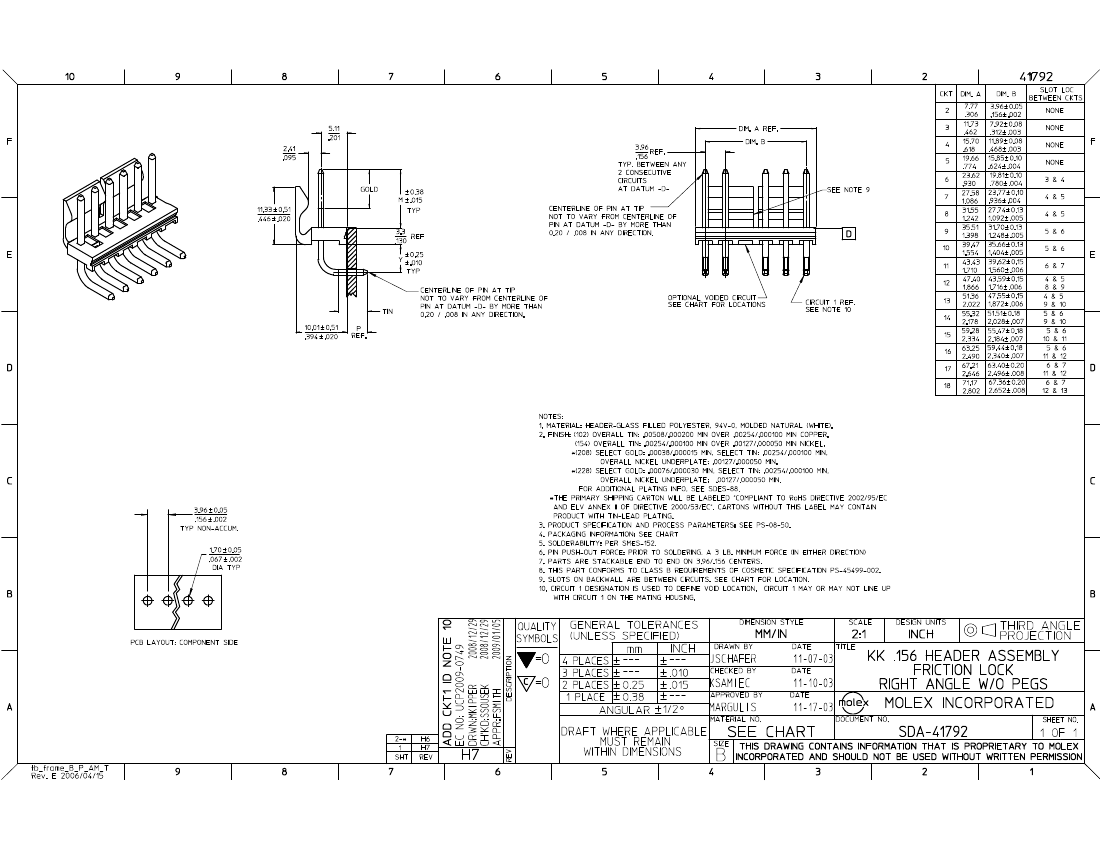

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

41792

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

Yes

Brass

Gold

Polyester

Right Angle

0.156 In

3.96 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.5

Yes

Partial

Yes

0°C to +75°C

Through Hole

Search Parts in this Series

41792Series

Mates With

3069 , 2139 , 2145 , 6442 , 7674 , 7675 ,

41695 , L ink:41815

41792-0020 Related Products

	41792-0020	41792-0021	41792-0034	41792-0035	41792-0032
Description	3.96mm (.156") pitch KK solid header, right angle, with friction lock, 3 circuits, gold (Au) plating	3.96mm (.156") pitch KK? solid header, right angle, with friction lock, 4 circuits, gold (Au) plating	3.96mm (.156") pitch KK solid header, right angle, with friction lock, 17 circuits, gold (Au) plating	3.96mm (.156") pitch KK? solid header, right angle, with friction lock, 18 circuits,gold (Au) plating	3.96mm (.156") pitch KK? solid header, right angle, with friction lock, 15 circuits, gold (Au) plating
