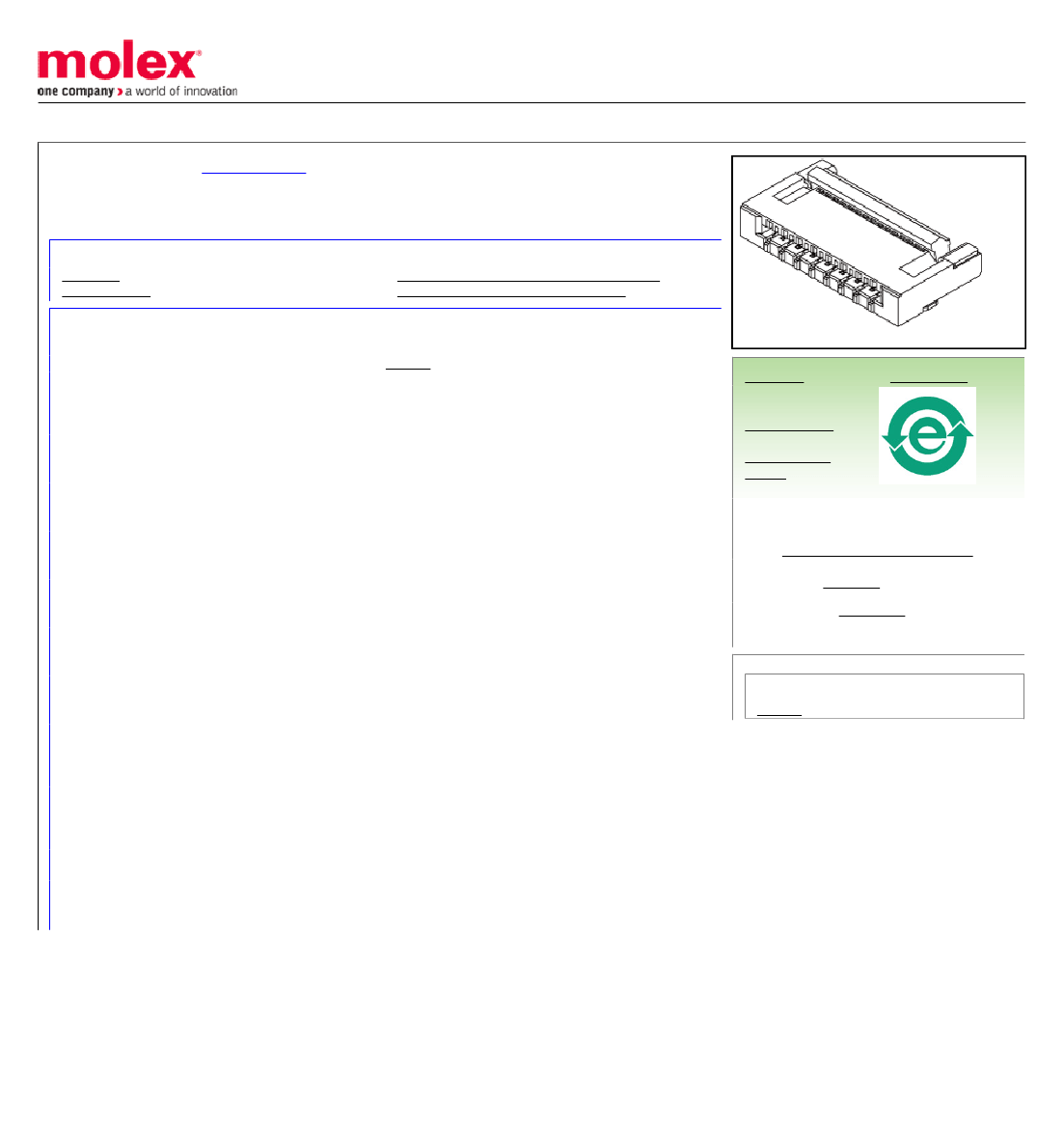

Part Number:
Status:
Description:
5016163985
Active
0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.10mm (.043") Mated Height,
Right Angle, SMT, ZIF, Top Contact Style, 39 Circuits, Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501616-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series
FFC/FPC Connectors
501616
Easy-On™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Product Name
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
39
Black, Gray
Top
10
90° Angle
0.043 In
1.10 mm
Copper Alloy
Gold
1
Right Angle
No
Yes
Embossed Tape on Reel
0.012 In
0.30 mm
Yes
No
-40°C to +85°C
Surface Mount
FPC only
Search Parts in this Series
501616Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.2A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-501616-003, RPS-501616-004, RPS-501616-008,
RPS-501616-009

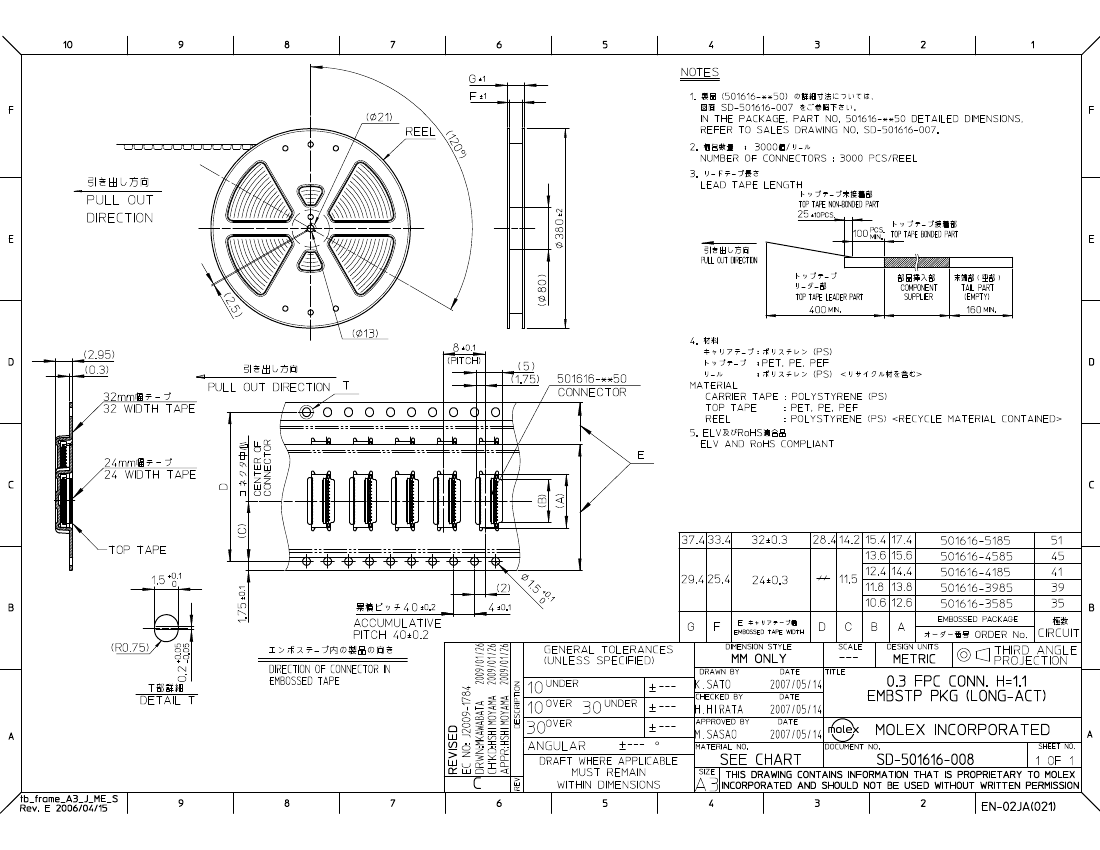

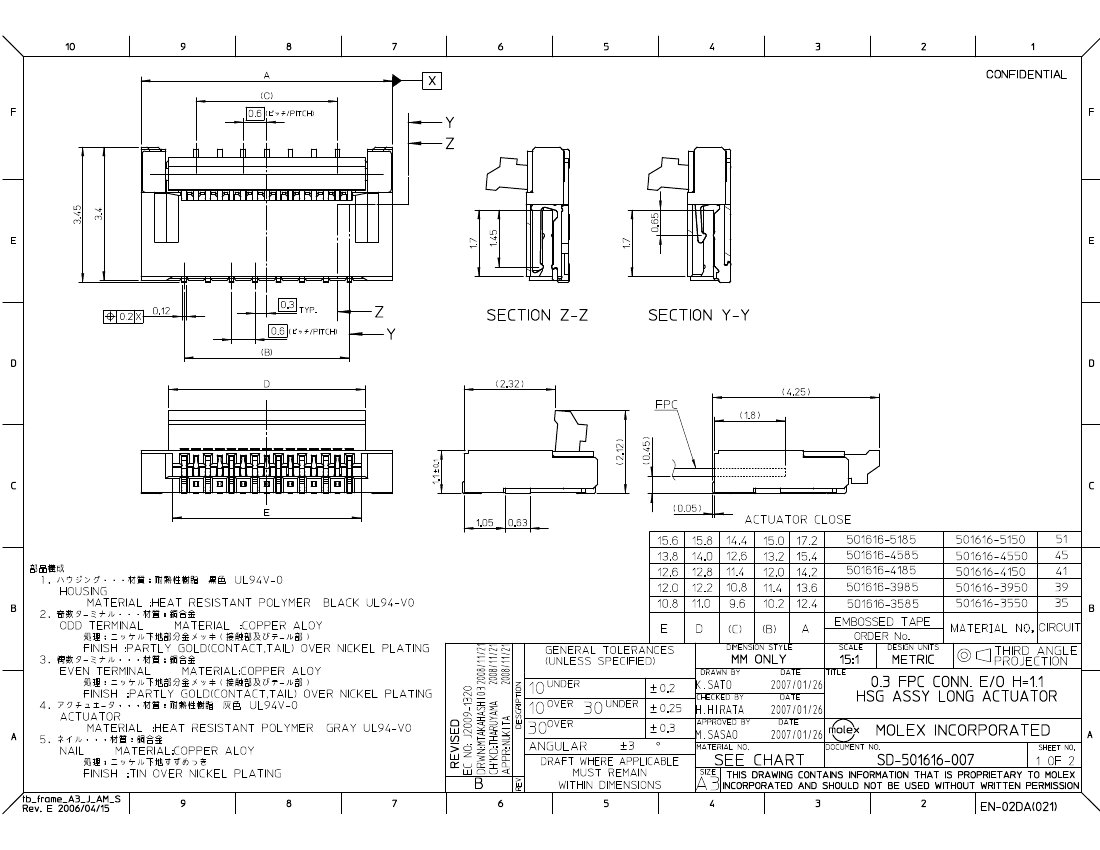

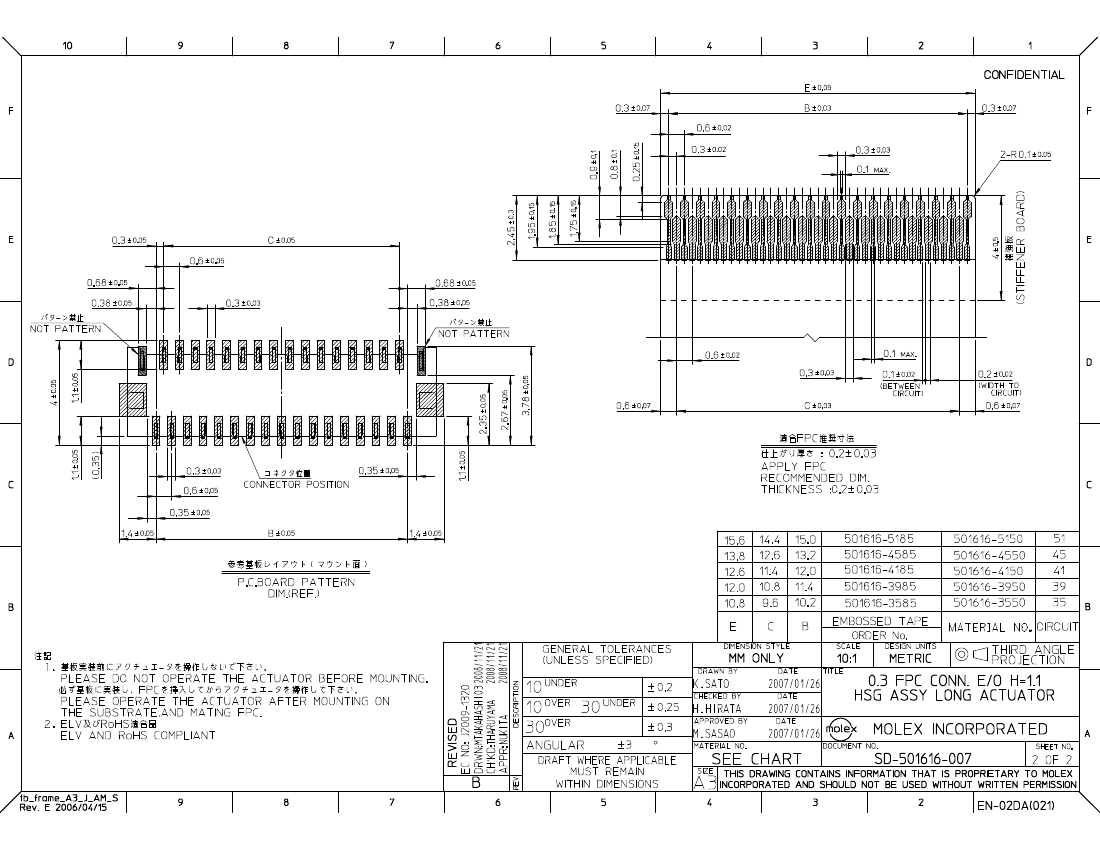

SD-501616-007, SD-501616-008
