NETWORKS
KOA´S INTEGRATED PASSIVE COMPONENTS
THIN FILM ON SILICON (TFOS)
KPC
3
2

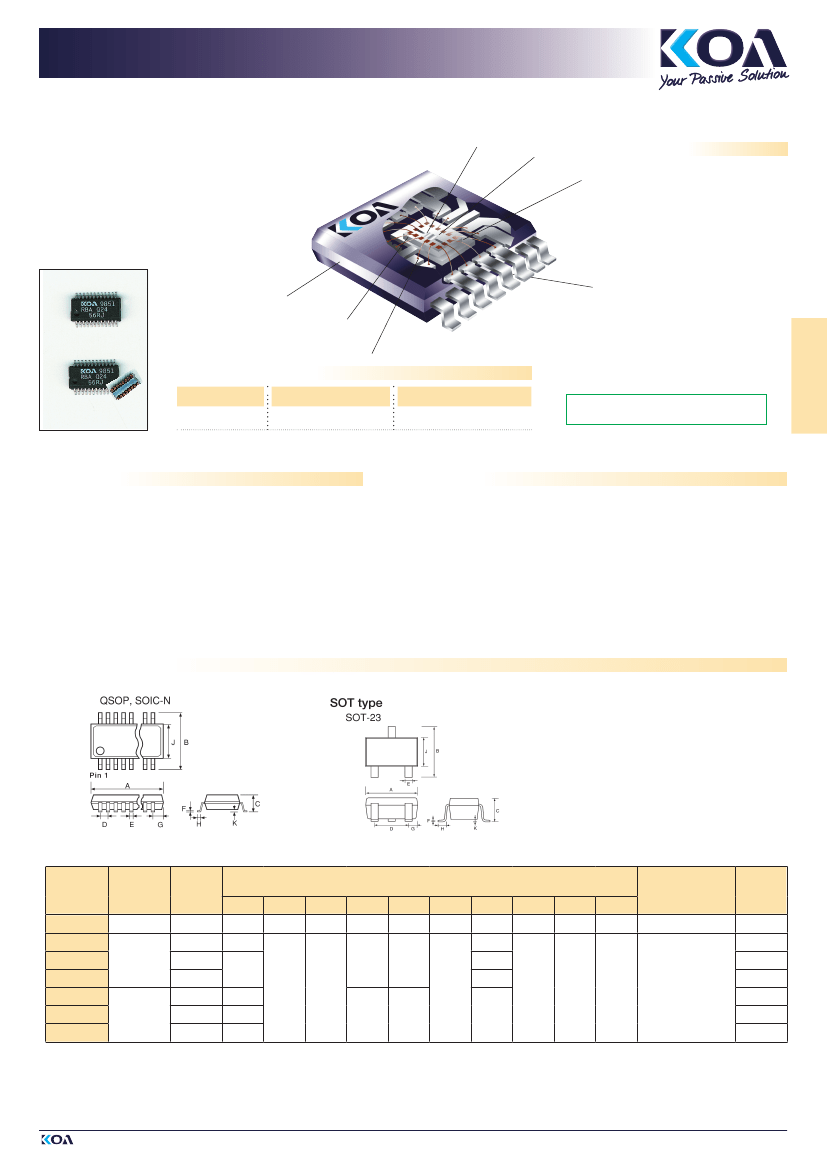

STRUCTURE
1
1 2
3
4
5
6
7
Die pad
Silicon substrate
Circuit
Bonding pad
Lead
Mold resin
Gold wire bonding
6
IDENTIFICATION
TYPE
KPC
Contact our sales representatives before you use our products for applications including
automotives, medical equipment and aerospace equipment. Malfunction or failure of the
products in such applications may cause loss of human life or serious damage.
4
COATING COLOR
Black
MARKING
White Ink or Laser
Products with Pb-free terminations meet
EU-RoHS and China-RoHS requirements
FEATURES
■
Excellent performance and reliability due to thin film
on silicon wafer technology and molded construction
■
Excellent resistance matching, TCR tracking and stability characteristics
■
High integration saves board space and reduces overall assembly costs
■
Excellent reliability with standard molded IC package
■
Wide variations of standard packages like QSOP, SOIC, SOT
■
Meets or exceeds IEC 60115-1, JIS C 5201-1, JIS C 5101-1
■
Suitable for reflow soldering
■
Customer specific circuits on request
APPLICATIONS
■
■
■
■
Highly accurate peripheral resistors for analog operational amplifiers
Automotives, Analog instrumentations, IC-testers
Computers, Data communications, Network systems
Operational amplifiers, Terminations, Pull-up/Pull-down
DIMENSIONS (mm)
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order/or use.
Package
Symbol
S03
Q16
Q20
Q24
N08
N14
N16
Package
SOT-23
QSOP
Number
of Pins
3
16
20
24
8
Dimensions（mm）
A±0.2 B±0.2 C±0.2 D±0.1 E±0.1 F±0.1 G±0.1 H±0.2 J±0.2
2.92
4.90
8.66
4.83
8.66
9.91
5.99
1.60
1.27
0.41
0.635
0.25
0.20
2.3
0.95
1.91
0.44
0.13
0.51
0.20
1.47
0.84
0.52
0.66
3.81
0.53
1.3
Weight
Taping & Q’ty/Reel
（g）
TE
1000pcs
K±0.1
0.11
3,000
9
76
125
0.18
2,500
129
73
150
153
SOIC-N
14
16
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
47
Revision: 07. Mar. 2011
NETWORKS
(PASSIVE COMPONENTS)
7
5
NETWORKS
KOA´S INTEGRATED PASSIVE COMPONENTS
THIN FILM ON SILICON (TFOS)
KPC

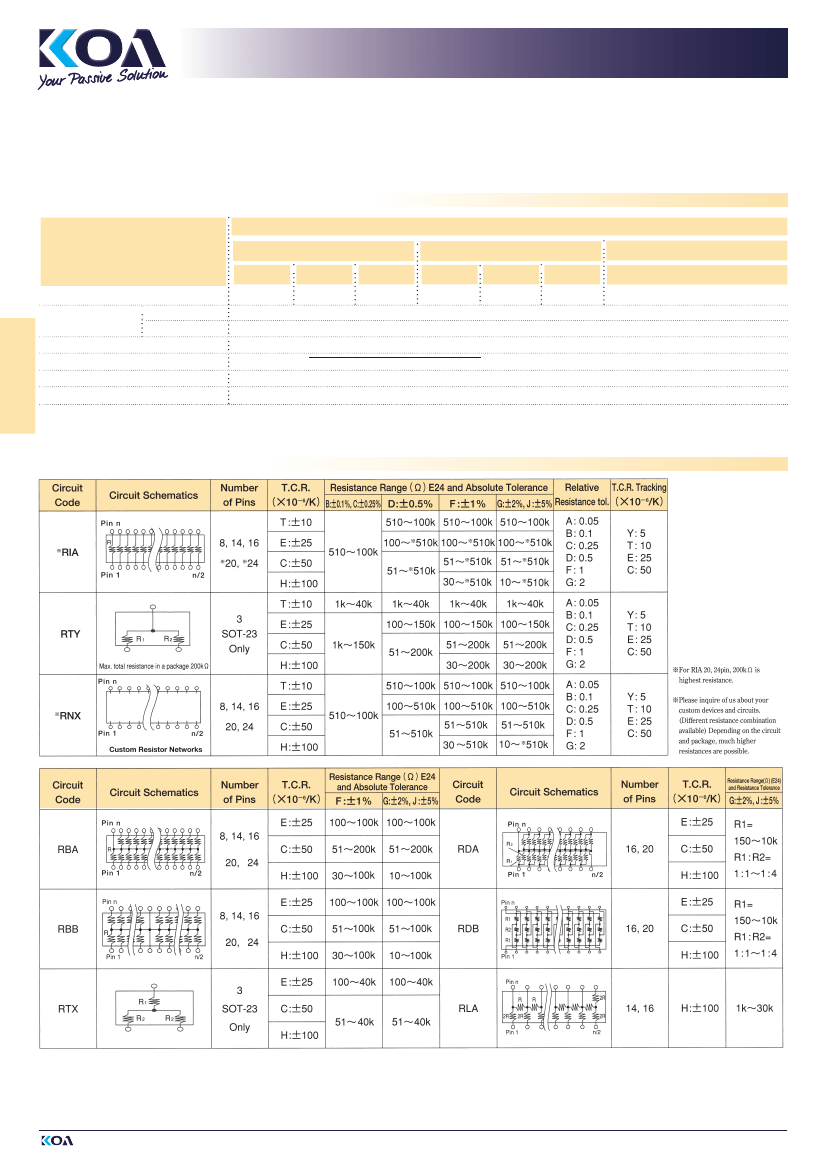

GENERAL RATINGS FOR RESISTOR NETWORKS
PACKAGE / PIN COUNT
QSOP
Q16
PACKAGE POWER RATING
RESISTANCE
10 Ω ~ 1 kΩ
RANGE
R
6
1.1 kΩ
MAX. WORKING VOLTAGE
RATED VOLTAGE
RATED AMBIENT TEMP.
OPERATING TEMP. RANGE
0.8 W
Q20
1.0 W
Q24
1.0 W
N08
SOIC
N14
N16
SOT-23
S03
NETWORKS
(PASSIVE COMPONENTS)
0.4 W
0.6 W
0.8 W
0.2 W
Power Rating 200 mW / Resistor Element*
Power Rating 50 mW / Resistor Element*
100 V
√ Rated Power x Nominal Resistance Value, Rated Voltage should not exceed Max. Working Voltage.
+ 70° C
– 55° C … + 125° C**
Above ratings are based on the thermal resistances using a multi-layer circuit board (EIA / JESD51). For mounting on a mono-layer board, power derating shall be needed. Please inquire of us about conditions.
* Total power consumption of all elements should not exceed the package power rating.
** Operating temperature range -55° C … +155° C can be provided as custom devices. Please contact KOA for this.
STANDARD RESISTOR NETWORKS
Tolerance & T.C.R.
combinations
upon request
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
48
Revision: 07. Mar. 2011
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order/or use.
Contact our sales representatives before you use our products for applications including
automotives, medical equipment and aerospace equipment. Malfunction or failure of the
products in such applications may cause loss of human life or serious damage.
NETWORKS
KOA´S INTEGRATED PASSIVE COMPONENTS
THIN FILM ON SILICON (TFOS)
KPC

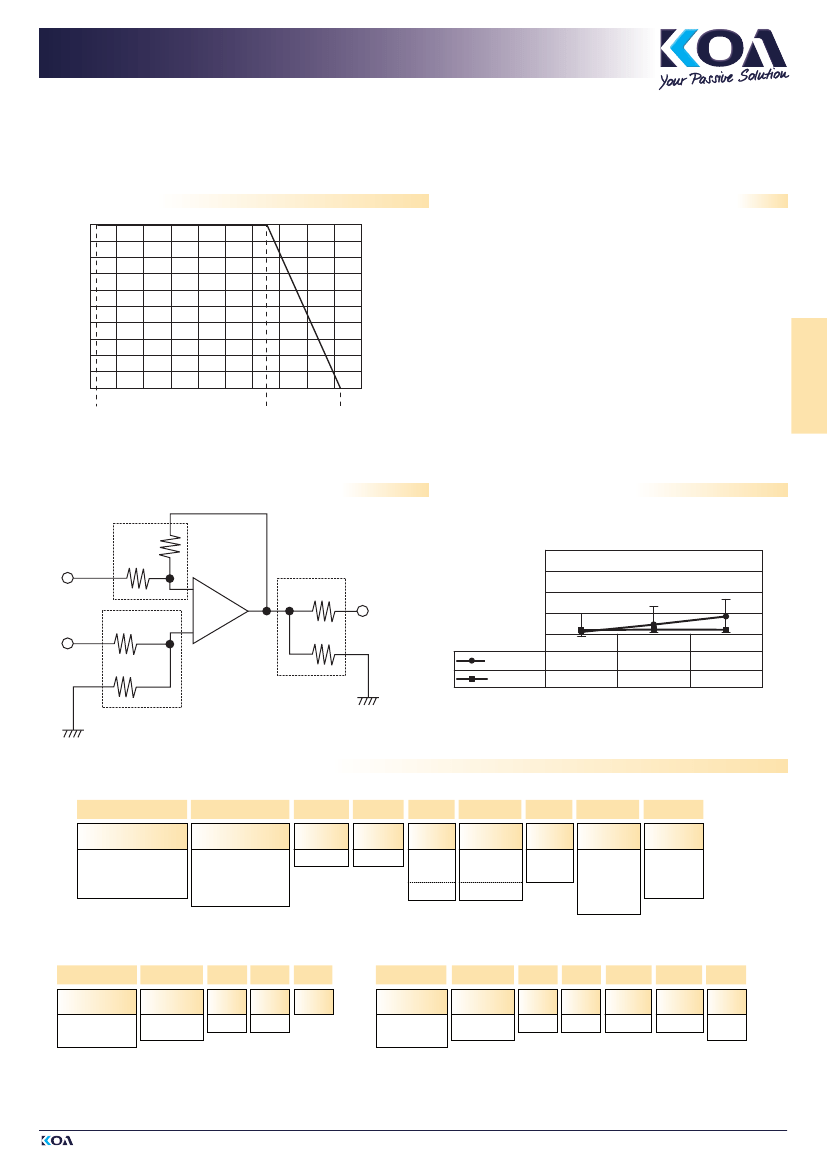

DERATING CURVE
100
Percent rated power (%)
Percent rated power
-6
MERIT OF THIN FILM RESISTOR NETWORKS
Metal thin film resistors formed by sputtering method have very similar
characteristic among pair resistors. When their characteristic of T.C.R., aging,
etc. for relative precision is requested, it`s very suitable to apply thin film resistor
networks to utilize the characteristic as below.
R1
R1
R2
R2
80
60
40
20
0
-60 -40 -20 0 20 40 60 80 100120 140
-55
70
125
Ambient temperature
（℃）
＋
＋
IN
IN
NETWORKS
(PASSIVE COMPONENTS)
−
−
IN
IN
Contact our sales representatives before you use our products for applications including
automotives, medical equipment and aerospace equipment. Malfunction or failure of the
products in such applications may cause loss of human life or serious damage.
For resistors operated at an ambient temperature of +70°C or above, the power
rating shall be derated in accordance with the above derating curve.
APPLICATION ExAMPLES OF PAIR RESISTORS
10kΩ
IN +
1kΩ
TYPICAL CHARACTERISTICS
Rated Load at 70°C (Typical: 1kΩ, 8 resistors/package)
＋
−
＋
1kΩ
1kΩ
IN-
10kΩ
−
10kΩ
0.100
0.100
0.075
0.075
0.050
0.050
0.025
0.025
0.000
0.000
High precision
High precision
⊿R/R（％）
⊿R/R（％）
絶対 abs.
絶対
abs.
abs.
相対
relative
相対
relative
relative
250Hr
250Hr
0.0024
0.0024
0.0047
0.0047
500Hr
500Hr
0.0110
0.0110
0.0052
0.0052
1000Hr
1000Hr
0.0209
0.0209
0.0050
0.0050
TYPE DESIGNATION (HOW TO ORDER)
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order/or use.
Resistor Networks：RIA, RBA, RBB
Resistor Networks：RIA, RBA, RBB
RIA
RIA
Circuit
Circuit
Code
Code
RIA : Isolated resistor network
RIA : Isolated resistor network
RBA: Bussed resistor network
RBA: Bussed resistor network
RBB: High speed bussed network
RBB: High speed bussed network
Q20
Q20
Package
Package
Symbol
Symbol
Package type symbol＋
Package type symbol＋
Number of pins
Number of pins
T16, T20, T24 : TSSOP
T16, T20, T24 : TSSOP
Q16, Q20, Q24 : QSOP
Q16, Q20, Q24 : QSOP
N08, N14, N16 : SOIC Narrow
N08, N14, N16 : SOIC Narrow
T
T
Terminal
Terminal
Surface Material
Surface Material
T : Sn
T : Sn
（ L : Sn/Pb）
（ L : Sn/Pb）
TE
TE
Taping
Taping
TE: Plastic
TE: Plastic
embossed
embossed
1002
1002
Nominal
Nominal
Resistance
Resistance
4 digits
4 digits
3 digits
3 digits
B
B
Absolute
Example 1
Absolute
Example
Tolerance
Resistance
1
Resistance Tolerance
B :±0.1%
R2
B :±0.1%
C:±0.25%
R2
C:±0.25%
R1
D:±0.5%
R1
D:±0.5%
F :±1%
F :±1%
−
G:±2%
−
G:±2%
J :±5%
J :±5%
＋
＋
E
E
T.C.R.
T.C.R.
（×10
−6
/K）
（×10
−6
/K）
−6
T : ±10
T : ±10
E : ±25
E : ±25
C: ±50
C: ±50
H: ±100
H: ±100
B
B
Relative
Example 2
Relative
Example
Tolerance
Resistance
2
Resistance Tolerance
＋
A : 0.05%
A : 0.05%
＋
B : 0.1%
B : 0.1%
C : 0.25%
C : 0.25%
−
D : 0.5%
D : 0.5%
−
F : 1%
F : 1%
G : 2%
G : 2%
'Blank': Not specified
'Blank':
R2
specified
Not
T
T
T.C.R. Tracking
T.C.R. Tracking
（×10
−6
/K）
（×10
−6
/K）
−6
Y : 05
Y : 05
T : 10
T : 10
E : 25
E : 25
C : 50
C : 50
'Blank': Not specified
'Blank': Not specified
Example 3
Example 3
R2
R2
R1
R1
＋
＋
−
−
R3
R3
R2
R1
R1
R3
R3
R4
R4
Resistor Networks：RNX, RTX, RTY
Resistor Networks：RNX, RTX, RTY
RNX
RNX
Circuit
Circuit
Code
Code
Resistor Networks：RDA, RDB
Resistor Networks：RDA, RDB
T
T
TE
TE
5001
5001
Custom
Custom
Code
Code
Q20
Q20
Package
Package
Symbol
Symbol
RDA
RDA
Circuit
Circuit
Code
Code
RDA: Dual terminator network
RDA: Dual terminator network
RDB: Differential terminator network
RDB: Differential terminator network
Q20
Q20
T
T
TE
TE
471J
471J
511J
511J
H
H
Terminal
Terminal
Taping
Taping
Surface Material
Surface Material
T : Sn
TE: Plastic
T : Sn
TE: Plastic
RNX: Dual terminator network Package type symbol＋
RNX: Dual terminator network Package type symbol＋
（ L : Sn/Pb）
embossed
（ L : Sn/Pb）
embossed
Number of pins
RTX,RTY: SOT-23 Resistor network
Number of pins
RTX,RTY: SOT-23 Resistor network
Terminal
T.C.R.
Package
Nominal Resistance Nominal Resistance
T.C.R.
Package
Terminal
Nominal Resistance Nominal Resistance
Taping
Taping
Surface Material
Symbol
& Tolerance of R1
& Tolerance of R2 （×10
−6
/K）
Surface Material
Symbol
& Tolerance of R1
& Tolerance of R2 （×10
−6
/K）
−6
Same as above
3 digits J : ±5%
3 digits J : ±5%
E :±25
T : Sn
TE: Plastic
Same as above
3 digits J : ±5%
3 digits J : ±5%
E :±25
T : Sn
TE: Plastic
(Except T24, Q24, N14, N08) （ L Sn/Pb）
C:±50
embossed
G: ±2%
G: ±2%
(Except T24, Q24, N14, N08) （ L :
:
Sn/Pb）
C:±50
embossed
G: ±2%
G: ±2%
H:±100
H:±100
ネットワーク抵抗器
ネットワーク抵抗器
ネットワーク抵抗器
Network Resistors
Network Resistors
Network Resistors
Resistor/Capacitor
Networks：ACB, ACC,
ACD, TFA, LFA, CTX
Resistor/Capacitor
KOA about product names and
ACD, TFA, LFA, CTX
which are not mentioned above.
Please contact
Networks：ACB, ACC,
ordering codes for products
RCD Networks
with ESD protection：TFB,
EAA
with ESD protection：TFB,
"PACKAGING" at the back pages.
RCD Networks
information on taping, please refer to
EAA
For further
ACB
ACB
Code
Code
Contact us when you have control request for environmental hazardous material other than the substance specified by EU-RoHS.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0)
Capacitance
89 89 • Internet: www.koaeurope.de
48 21/ 89
Circuit
Package
Terminal
Nominal Resistance
Nominal Capacitance
Circuit
Package
Terminal
Nominal Resistance
Nominal
Taping
15k
15k
Symbol
Symbol
15k
Surface Material
計6セット
Surface Material
T : Sn
Taping
TE: Plastic
20k5k
20k5k
Q20
Q20
