15-666000-00 Overview

soic-to-sowic adapter

15-666000-00 Parametric

Parameter Name	Attribute value
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Device slot type	IC SOCKET
Manufacturer's serial number	666000

Preview

Download Datasheet

View All

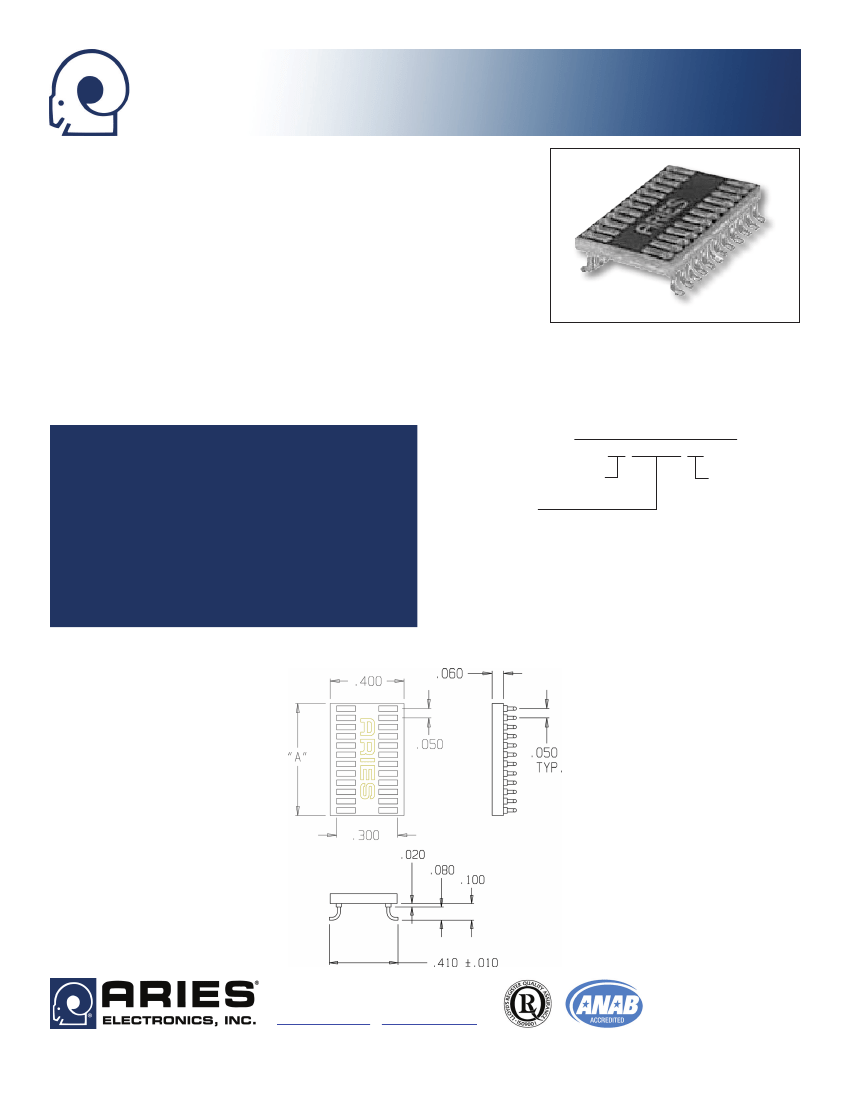

P/N XX-666000-00

SOIC-to-SOWIC Adapter

FEATURES

• Allows the use of a narrow package IC in place of a wide one.

GENERAL SPECIFICATIONS

• LEADS: mechanically fastened and soldered to adapter’s PCB subtrate

• PCB: FR-4, 0.062 [1.56] or 0.094 [2.39] thick manufactured to IPC 600E Class

2 standards

• MALE PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M

• MALE PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ

[2.54µ] Ni per SAE AMS-QQ-N-290

• OPERATING TEMPERATURE: 221°F [105°C]

MOUNTING CONSIDERATIONS

• Standard SMT mounting to PCB

• SMT Package can be IR reflowed, vapor phased, or simply hand soldered

CUSTOMIZATION:

In addition to the standard products shown

on this page, Aries specializes in custom design and production.

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

right to change product general specifications without notice.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

PADS ARE 0.076 [1.93] x 0.024 [0.61]

“A” DIMENSION = 1/2 x TOTAL PIN COUNT x 0.050 [1.27] + 0.030

[0.76]

ALL CAC’s ARE MANUFACTURED AND INSPECTED TO IPC- 610B

CLASS 2 GUIDELINES

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

ORDERING INFORMATION

XX-666000-00

No. of Conductors

8-24

Series

Surface Mount

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

18044

Rev. AA
