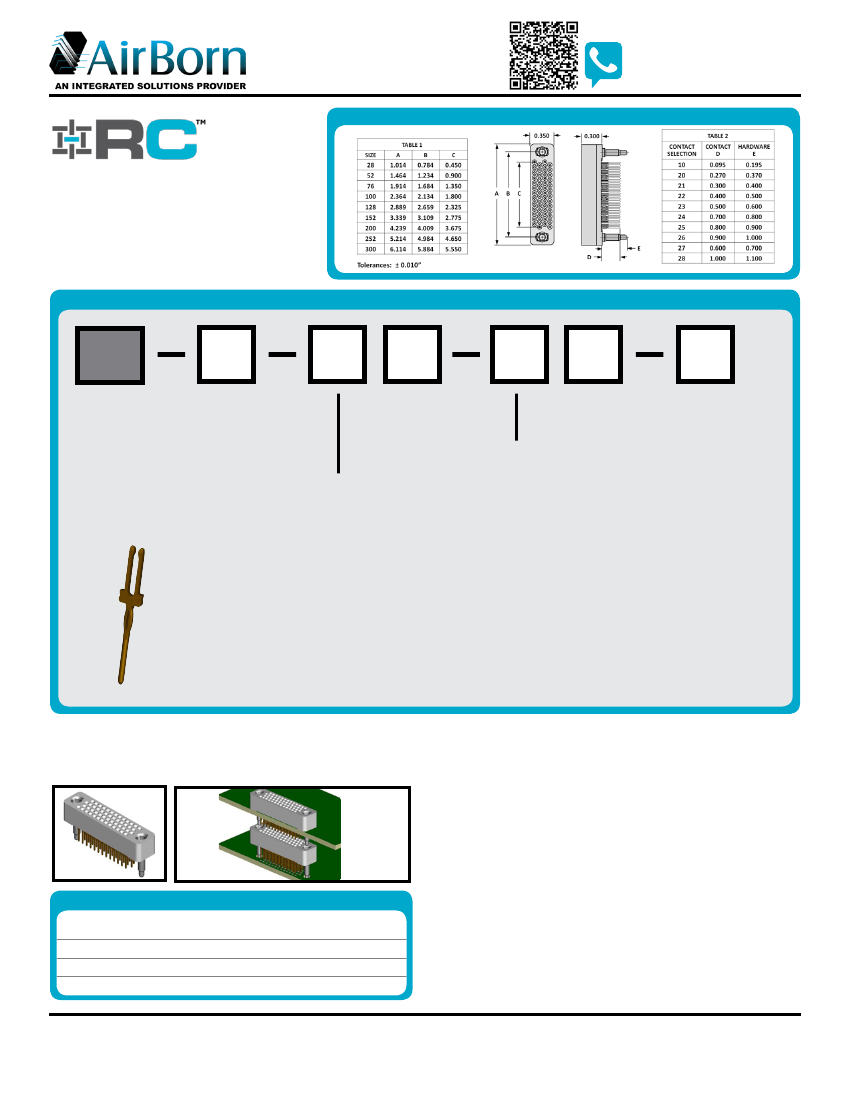

DIMENSIONS
CONTACT CUSTOMER SERVICE
Stackable, Press-Fit, Compilant
Pin/Socket
Contact spacing: 0.075” (1.91 mm)
A high-density press-fit mounted connector
using patented stacking contacts consisting of
a female/compliant/male configuration used in
board-to-board stacking applications.
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
Sample Part Number Format: RC422-052-211-4000
RC422
SERIES
Stackable
Compliant
Full-Profile
4 Rows
0.075” Spacing
CONFIGURATION
028 – 4 Rows/7 Columns
052 – 4 Rows/13 Columns
076 – 4 Rows/19 Columns
100 – 4 Rows/25 Columns
128 – 4 Rows/32 Columns
152 – 4 Rows/38 Columns
200 – 4 Rows/50 Columns
252 – 4 Rows/63 Columns
300 – 4 Rows/75 Columns
PLATING
1
–
50 µ” Au
3
–
30 µ” Au
7
–
50 µ” Au / 20 µ” Au
9
–
30 µ” Au / 20 µ” Au
TYPE
00
–
None
FT
–
Female thread
MT
–
Male thread
(#39 hardware, only)
HARDWARE
30
–
0.195” Long (use with #10 contact)
39
–
0.370” Long (use with #20 contact)
40
–
0.400” Long (use with #21 contact)
41
–
0.500” Long (use with #22 contact)
42
–
0.600” Long (use with #23 contact)
43
–
0.800” Long (use with #24 contact)
44
–
0.900” Long (use with #25 contact)
45
–
1.000” Long (use with #26 contact)
46
–
0.700” Long (use with #27 contact)
47
–
1.100” Long (use with #28 contact)
VARIATION
Blank
–
None
XXX
–
Consult factory
CONTACT
10 – 0.095” Long
20
–
0.270” Long
21
–
0.300” Long
22
–
0.400” Long
23
–
0.500” Long
24
–
0.700” Long
25
–
0.800” Long
26
–
0.900” Long
27
–
0.600” Long
28
–
1.000” Long
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATED HEIGHT
The connector body height is 0.300” and, when used with the -20 or -30 (0.270”) contact, the
mounting is flush (board-bottom-mounted to connector top). This board-bottom to connector-top
spacing can be modified based on the contact selected by approximately the difference in pin
length (see Table 2 in top window) .
MATERIALS and FINISHES
Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . . BeCu per ASTM B768 (BeCu C17410 brush alloy 174)
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . Gold per MIL-G-45204 over nickel per IAW QQ-N-290
Molded Insulator: . . . . . . . . . . . . . . . . .
Glass-filled polyphenylene sulfide (PPS) per MIL-M-24519
Hardware: . . . . . . . . . . . . . . . . . . . . . . . Stainless steel per ASTM A582, passivated per ASTM 967
Guide Pin/Socket:
. . . . . . . . . . . . . . . . . . .
BeCu per ASTM B196/197, nickel-plated per QQ-N-290
NOTE: AirBorn can manufacture special configurations to your exact specifications.
PERFORMANCE
SI DATA – Differential 100 Ohm
1
2
3
4
Diff . Insertion Loss
Diff . Return Loss
NEXT
FEXT
5 .0 GHz @ -3 dB
2 .0 GHz @ -8 dB
4 .0 GHz @ -25 dB
4 .0 GHz @ -35 dB
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 amperes
Operating Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65° C to +125° C
Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC
Durability: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles
Contact Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 5 milliohms (contact length-dependent)
Contact Engagement Force: . . . . . . . . . . . . . . . . . . . . .
4.0 oz (113 g) max. w/0.0246” dia. test pin
Contact Separation Force: . . . . . . . . . . . . . . . . . . . . . . . .
0.5 oz (14 g) min. w/0.0226” dia. test pin
Compliant Insertion Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 .5 lb (10 .21 Kg) max . per contact
Compliant Removal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 .5 lb (2 .04 Kg) min . per contact
