TT54HC109/BEAJC datasheet, PDF

TT54HC109/BEAJC: DescriptionJ-K Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, CDIP16; Categorylogic logic; File Size320KB，5 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

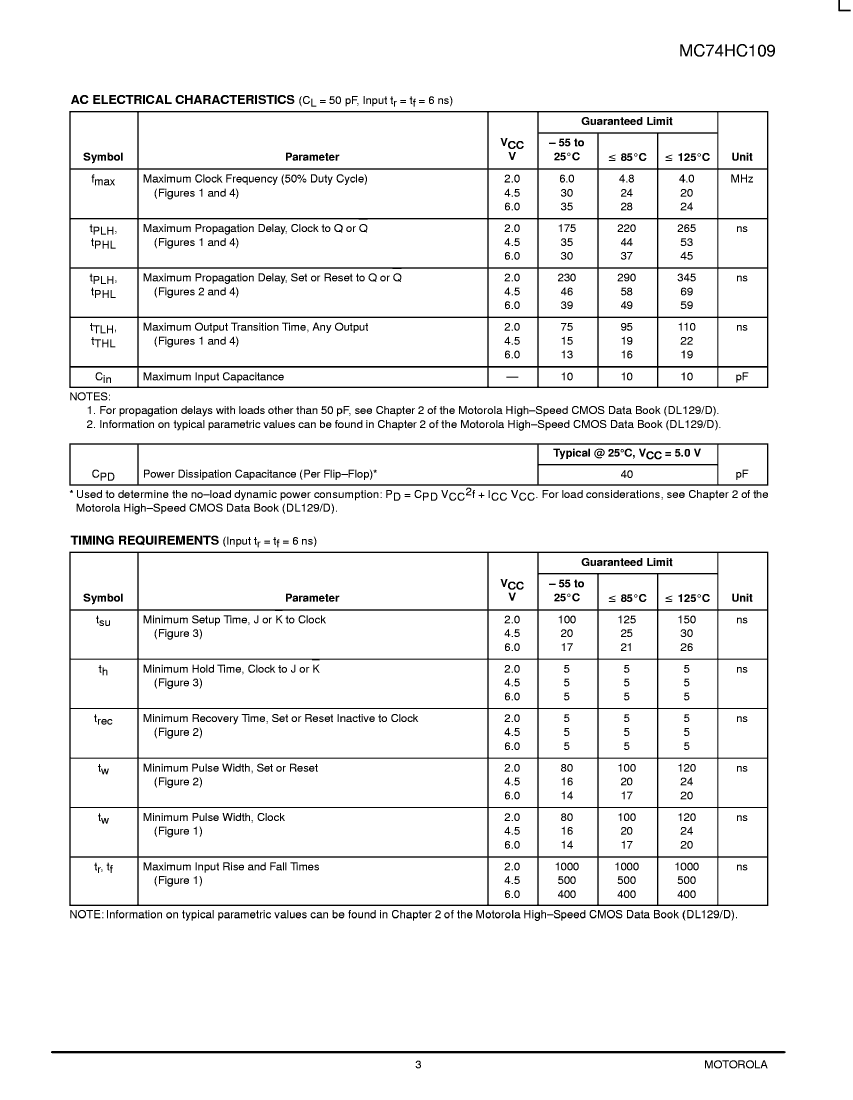

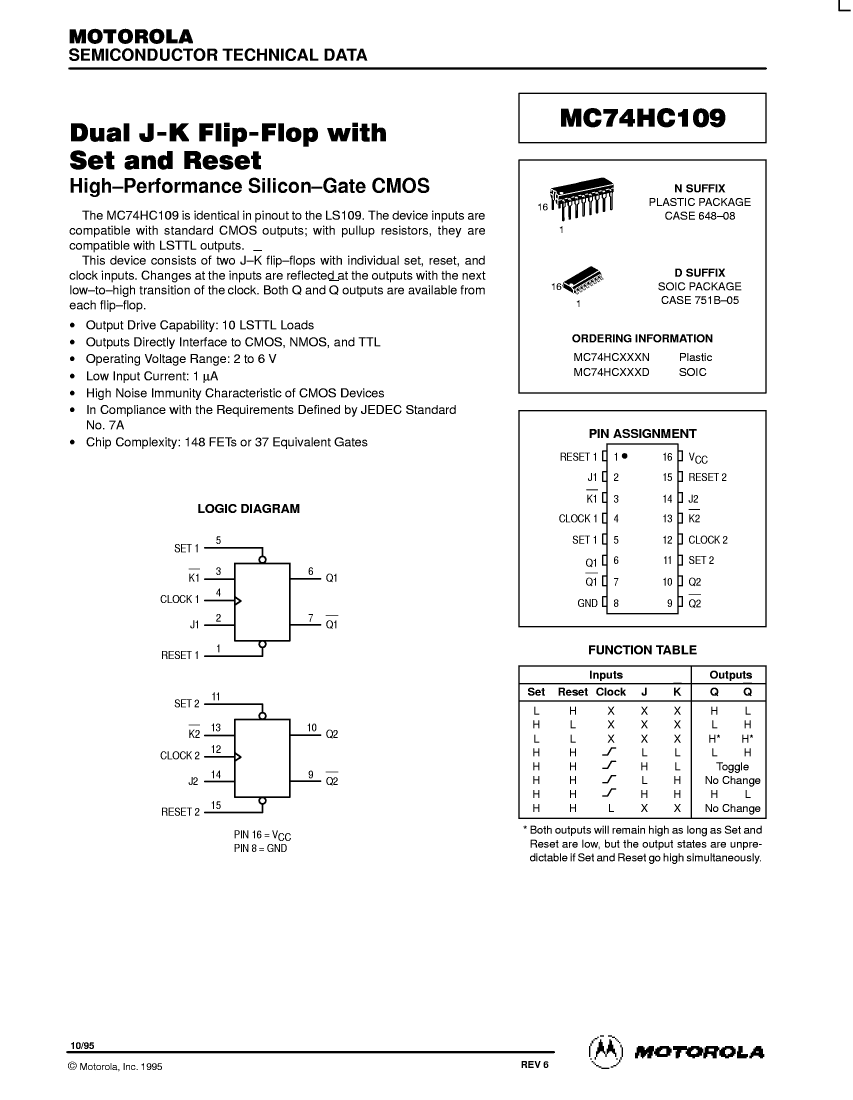

TT54HC109/BEAJC Overview

J-K Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible

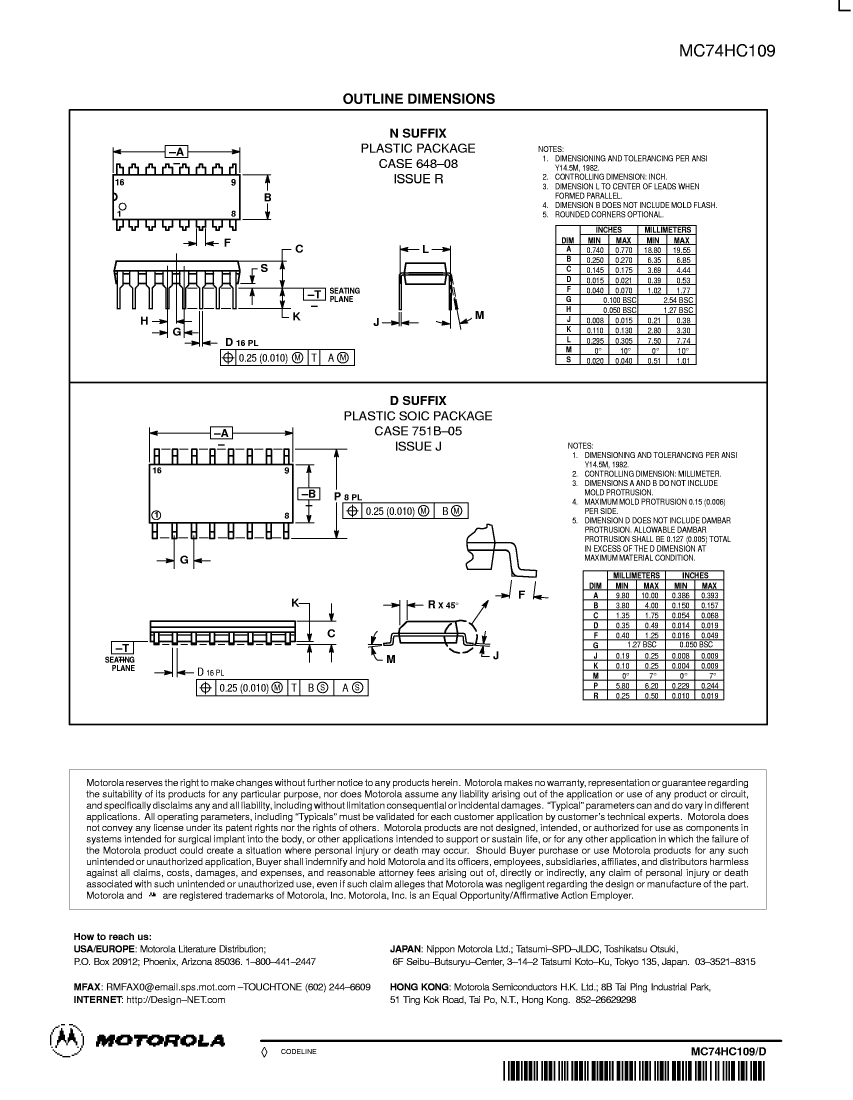

package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
JESD-30 code	R-XDIP-T16

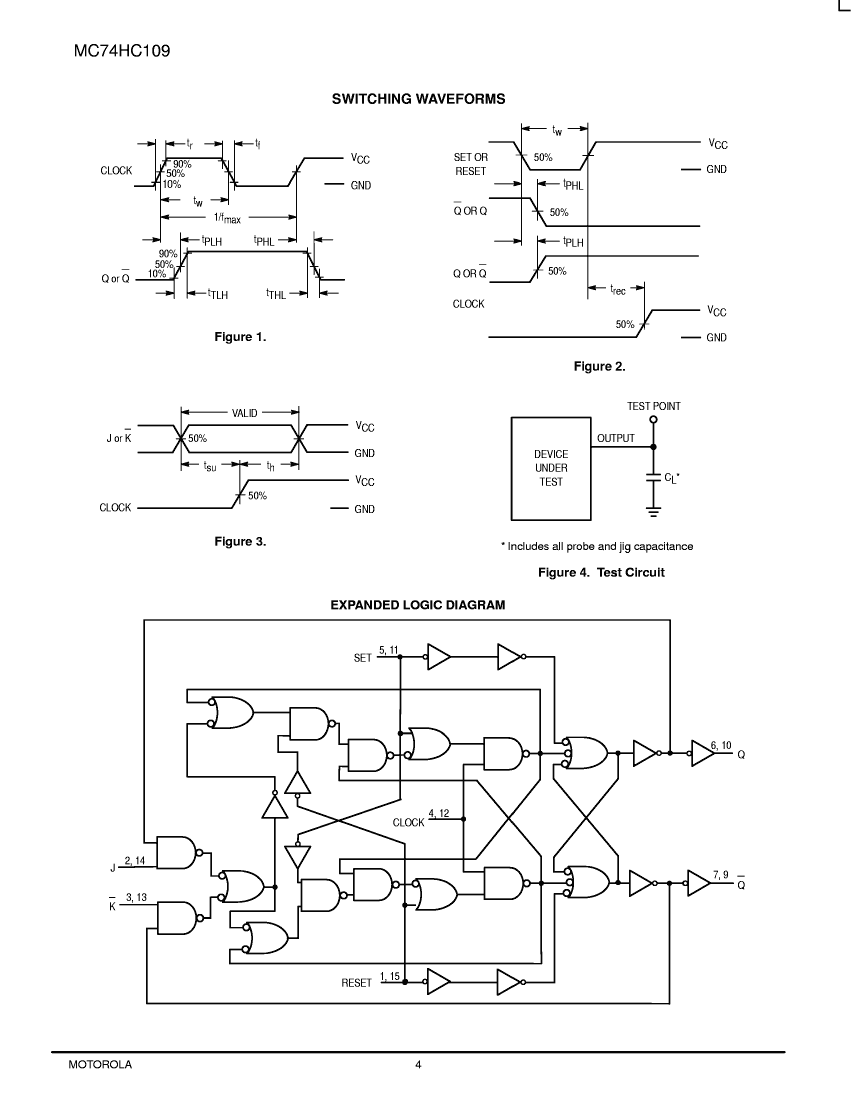

Logic integrated circuit type	J-K FLIP-FLOP
Number of functions	2
Number of terminals	16

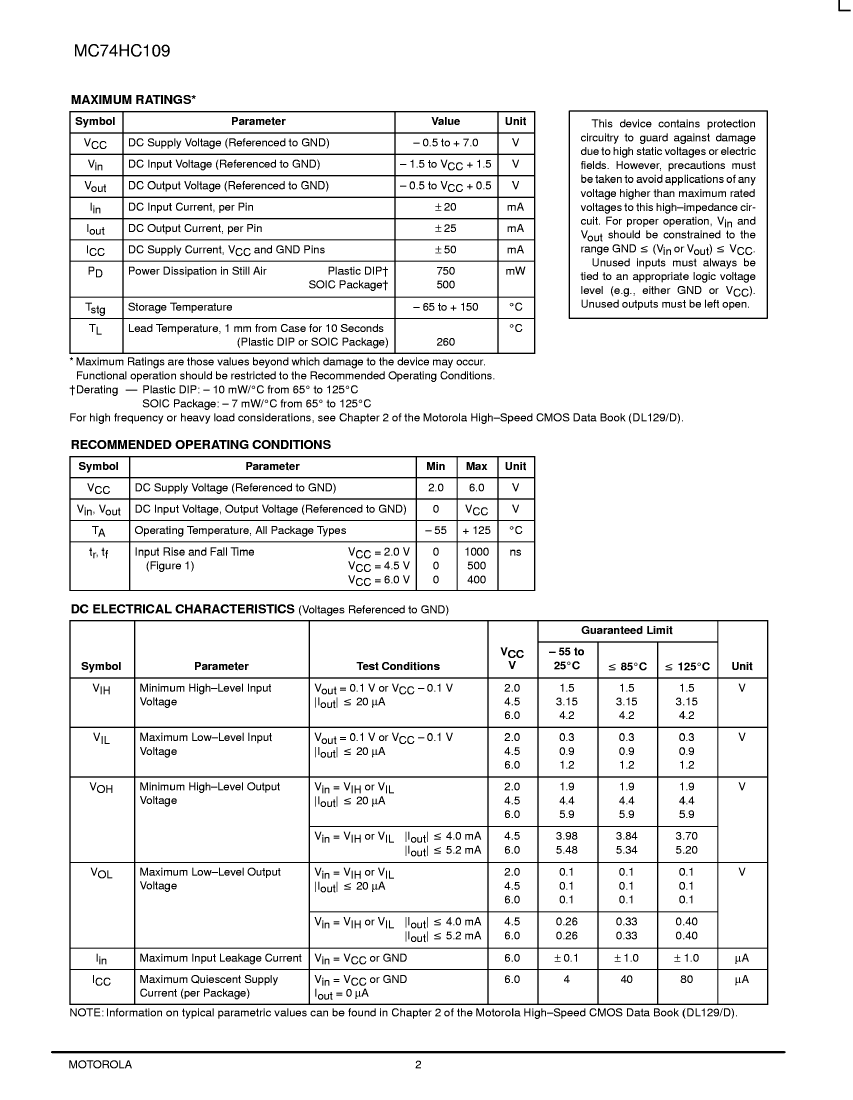

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1
