K99-9S-K-BLU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> K99-9S-K-BLU

K99-9S-K-BLU: DescriptionClass D micro connector idc 9P recpt metal blue W/bushing; CategoryThe connector; File Size170KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K99-9S-K-BLU Overview

Class D micro connector idc 9P recpt metal blue W/bushing

K99-9S-K-BLU Parametric

Parameter Name	Attribute value
Maker	Kycon
RoHS	no
Number of locations/contacts	9
Current rating	1 A
Contact plating	Gold over Nickel
Shell plating	Ti
Type	Female
Installation style	Cable
Termination type	Clam
Contact material	Phosphor Bronze
Shell material	PBT Thermoplastic
range of working temperature	- 55 C to + 125 C

Preview

Download Datasheet

View All

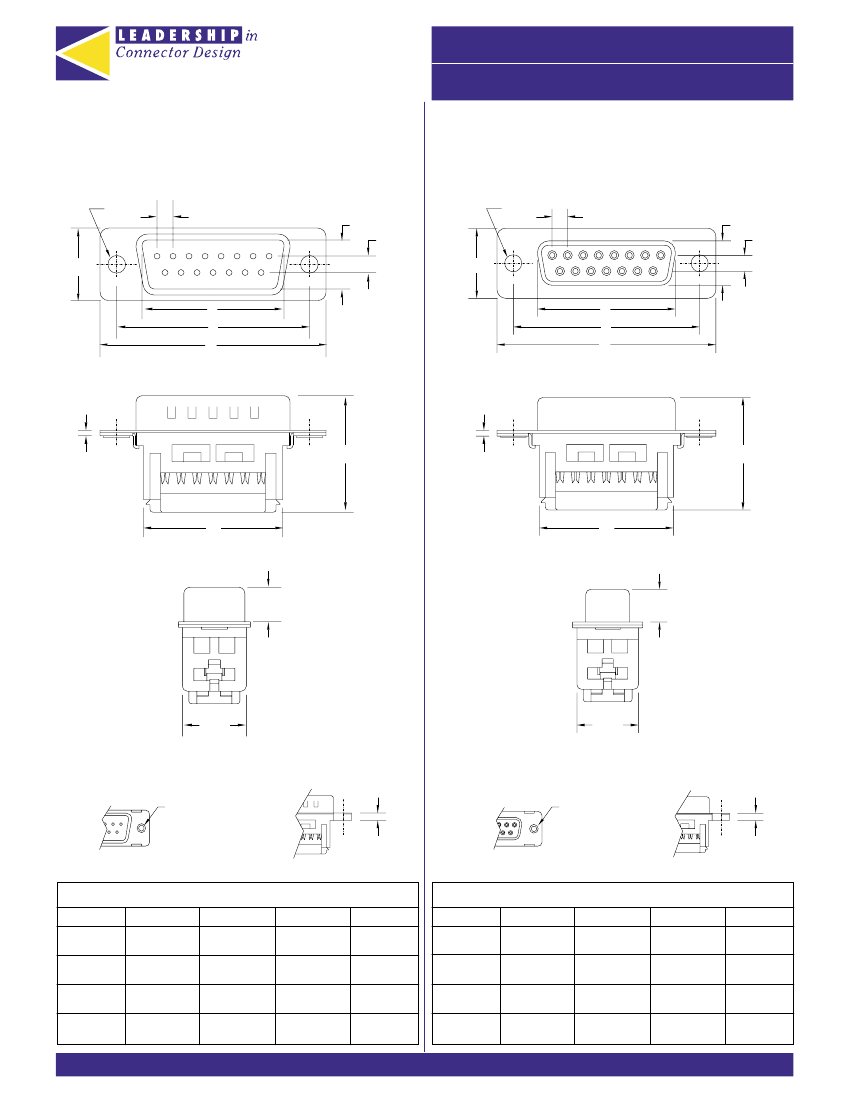

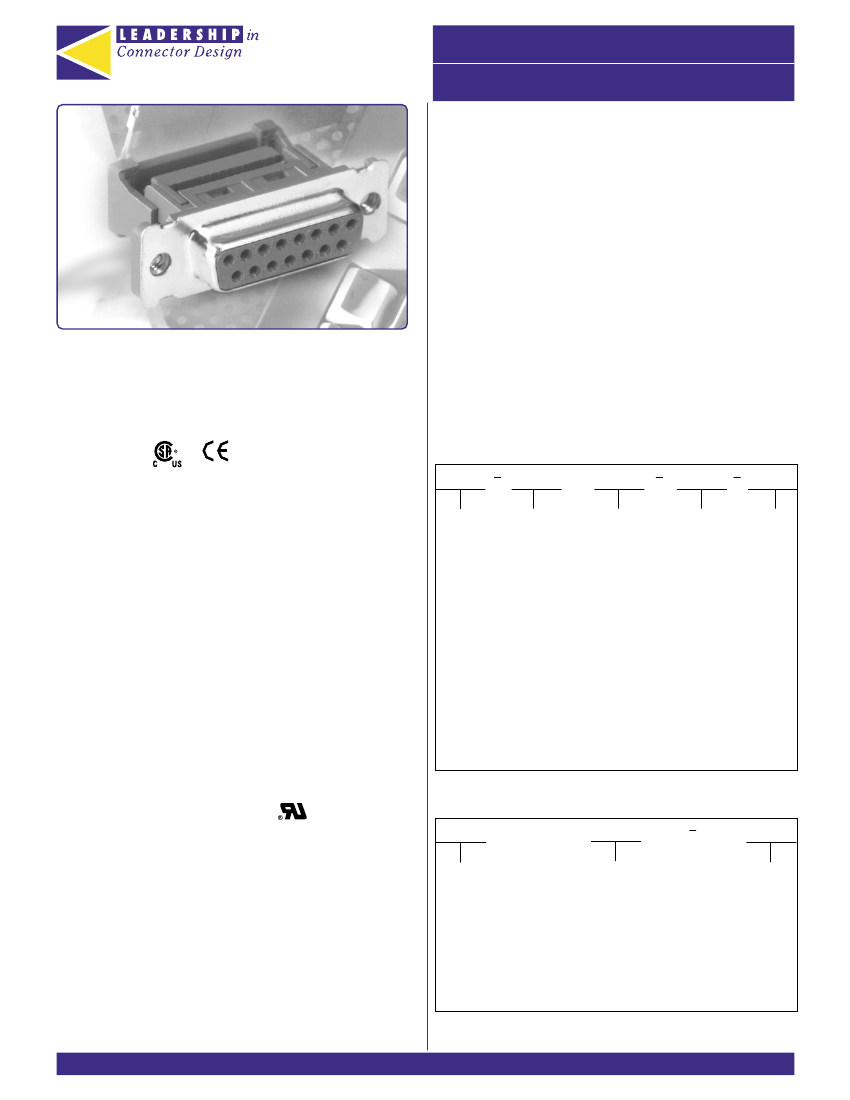

D-SUBMINIATURE CONNECTORS

KYCON

K99 Series

Mechanical Characteristics

Contact Separation Force

4 Oz. Min

Contact Engagement Force

9 Oz. Min

Electrical Characteristics

Contact Current Rating

1 Amp

Contact Resistance

8 Milliohms Max

Dielectric Withstanding Voltage

1000 V AC Min

Insulation Resistance

1000 Megohms Min

Temperature Rating

-55ºC to +125ºC

Wire Accommodation

Flat Cable or Discrete Wire 26 or 28 AWG Stranded or Solid, and

30 AWG Solid Wires on .050 (1.27) Centers

K99 Series

IDC Termination

D-Subminiature

Features

LR78160

Ordering Information: Connector

K99

Series

• Applications Include Computer Peripherals, Data Processing,

Telecommunications, Industrial Controls and Local Area

Networks

• Bright Tin Shells for Exceptional Conductivity, Grounding

and EMI/RFI Shielding

• Indentations (Dimples) on Metal Plug Shells for Exceptional

Grounding and Mating Retention

• Plastic Strain Relief Available Separately

• Flat Cable can be Connected to a Single Connector or

Daisy Chained.

• Automatic Assembly Machine Compatible

• Design Meets the Requirements of MIL-C-24308, EIA RS-232

and RS-449.

Number of

Contacts

Contact

Type

Mounting

Options

BLK

Color

Options

Performance Specifications

Materials and Finish

Shell

K99 Series: Steel Material, Tin Finish

SR Series: PBT Thermoplastic

Contact Material

Pin: Brass .040 (1.02) Diameter

Socket: Phosphor Bronze

Contact Finish

0.000005 (0.000127) Gold on Contact Wiping Area, All Other

Areas are 0.0001 (0.00254) Tin Over 0.0001 (0.00254) Nickel

Riveted Insert

Brass Material, Nickel Finish

Series

K99 - KYCON IDC D-Subminiature Connector,

Metal Construction

Number of Contacts

9, 15, 25, 37

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

Mounting Options

K - With Riveted Threaded (4-40) Bushing

Blank - No Mounting Hardware

Color Option

BLU: Blue Color

BLK: Black Color

Ordering Information: Strain Relief

Series

Number of

Contacts

BLK

Color

Options

Series

SR-Plastic Strain Relief for K99 Series Connector*

Number of Contacts

9, 15, 25, 37

Color Option

BLU: Blue Color

BLK: Black Color

*Contact factory for specifications. 888-KYCON-22

2002

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
