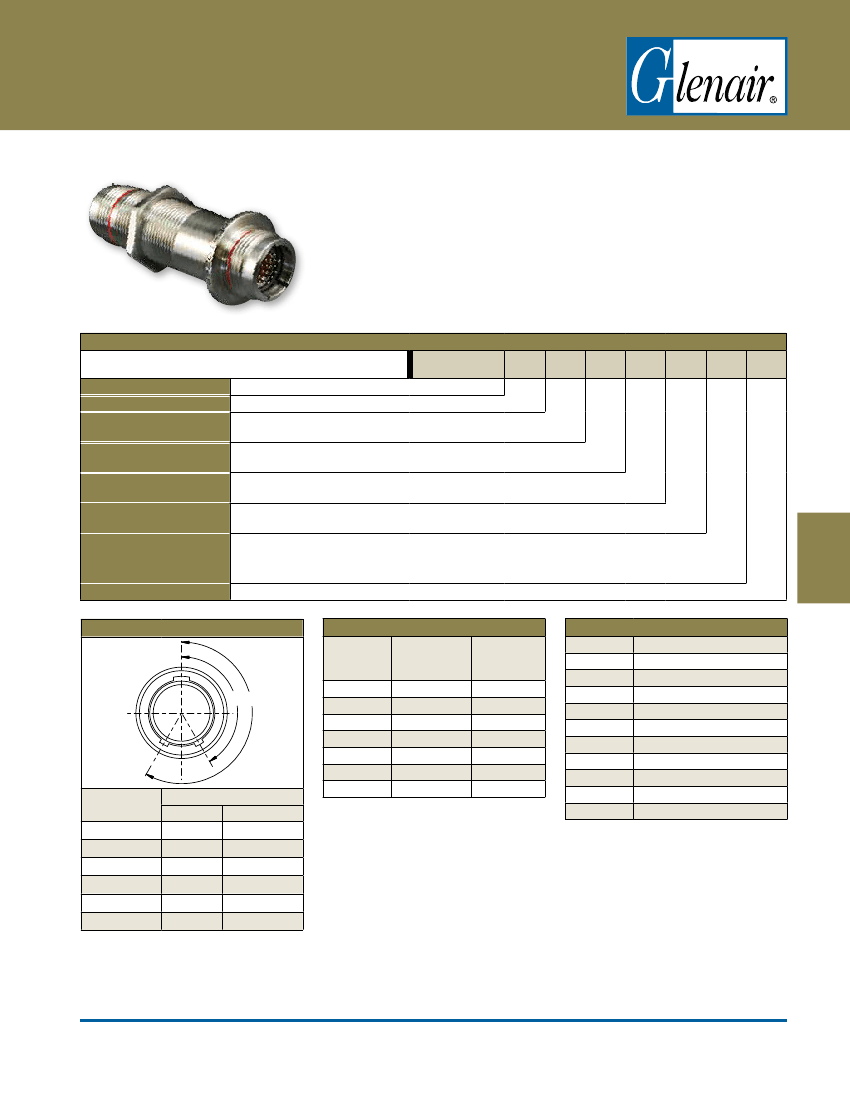

802-050 Ordering Information
Series 802 Hermetic Jam Nut Mount Bulkhead Feed–Thru Receptacles
feature
gold plated iron alloy contacts and compression glass dielectric material. The
316 series stainless steel connector shell provides excellent corrosion protection.
Available with pin to pin contacts. Power applied to a given contact on one end
will result in power to contact directly opposite, regardless of contact identification
letter. Contact DWV ratings are as follows and measured pin to pin and pin to shell
without breakdown: size #23 @ 750 VAC, size #20 @ 1000 VAC, size #16 and #12
@ 1800 VAC. Insulation resistance is rated at 20,000 megohms (test) @ 500 VDC
minimum. Hermeticity is rated at: 5 x 10
-8
sccHe/sec @ 1 atmosphere differential.
802-050 is designed to mate with Glenair 802 Series plugs
How To Order
Sample Part Number
Series
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Jam Nut Side
Contact Type
Opposite Side
Keyway Position
(See Table I)
Panel Thickness
(See Table II)
O-ring Material
802-050
802-050
= Bulkhead Feed–Thru Hermetic Receptacle
Z1
= 316 Stainless Steel / Passivated RoHS Compliant
See Table III
P
= Pin
P
= Pin
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
-02
= 1.000/1.500
-05
= 2.500/3.000
E
= Pos. E
Z1
12-37
P
P
A
01
N
F
= Pos. F
-01
= .500/1.000
-04
= 2.000/2.500
-07
= 3.500/4.000
-03
= 1.500/2.000
-06
= 3.000/3.500
V
= Viton
N
= Nitrile
NA
= No external o-rings supplied (suggested material: Nitrile)
Table I: Key Positions
Table II: Panel Thickness
Panel
Thickness
Code
-01
-02
-03
-04
-05
H Panel
Thickness
.500/1.000
1.000/1.500
1.500/2.000
2.000/2.500
2.500/3.000
3.000/3.500
3.500/4.000
J Maximum
Length
2.450
2.950
3.450
3.950
4.450
4.950
5.450
Table III: Insert Arrangements
Shell Size
5
6
7
8
9
10
12
14
15
21
Insert Arrangement(s)
-3
-1, -4, -6, -7, -23
-1, -10, -25
-1, -2, -13, -28, -200
-4, -19, -200, -201, -210
-2, -5, -26, -200, -201, -202
-2, -3, -7, -37, -200, -201, -220
-5, -12, -55, -235
-3, -7, -14, -85, -241
-12, -22, -130, -269
A° B°
Key Position
A
Normal
B
C
D
E
F
Key Rotation
A°
B°
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
-06
-07
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-21
E-Mail: sales@glenair.com
Series 802
Series 802 AquaMouse™ Hermetic
Jam Nut Mount Bulkhead Feed–Thru Receptacle
E
