Dual Channel, 12-Bit, 80 MSPS A/D Converter
with Analog Input Signal Conditioning
AD13280
and performance while still maintaining excellent isolation,
and providing for significant board area savings.
Multiple options are provided for driving the analog input,
including single-ended, differential, and optional series filtering.
The AD13280 also offers the user a choice of analog input
signal ranges to further minimize additional external signal
conditioning, while still remaining general purpose.
The AD13280 operates with
±
5.0 V for the analog signal condi-
tioning with a separate 5.0 V supply for the analog-to-digital
conversion, and 3.3 V digital supply for the output stage. Each
channel is completely independent allowing operation with
independent encode and analog inputs, and maintaining mini-
mal crosstalk and interference.
The AD13280 is packaged in a 68-lead ceramic gull wing package.
Manufacturing is done on Analog Devices, Inc. MIL-38534
Qualified Manufacturers Line (QML) and components are
available up to Class-H (–40°C to +85°C). The components are
manufactured using Analog Devices, Inc. high-speed comple-
mentary bipolar process (XFCB).
PRODUCT HIGHLIGHTS
FEATURES
Dual, 80 MSPS Minimum Sample Rate
Channel-to-Channel Matching, 1% Gain Error
90 dB Channel-to-Channel Isolation
DC-Coupled Signal Conditioning
80 dB Spurious-Free Dynamic Range
Selectable Bipolar Inputs ( 1 V and 0.5 V Ranges)
Integral Single-Pole Low-Pass Nyquist Filter
Two’s Complement Output Format
3.3 V Compatible Outputs
1.85 W per Channel
Industrial and Military Grade
APPLICATIONS
Radar Processing (Optimized for I/Q Baseband Operation)
Phased Array Receivers
Multichannel, Multimode Receivers
GPS Antijamming Receivers
Communications Receivers
PRODUCT DESCRIPTION
The AD13280 is a complete dual channel signal processing
solution including on board amplifiers, references, ADCs, and
output termination components to provide optimized system
performance. The AD13280 has on-chip track-and-hold circuitry
and utilizes an innovative multipass architecture to achieve 12-bit,
80 MSPS performance. The AD13280 uses innovative high-
density circuit design and laser-trimmed thin-film resistor networks
to achieve exceptional channel matching, impedance control,
1. Guaranteed sample rate of 80 MSPS.
2. Input signal conditioning included; gain and impedance match.
3. Single-ended, differential, or off-module filter options.
4. Fully tested/characterized full channel performance.
5. Compatible with 14-bit (up to) 65 MSPS family.

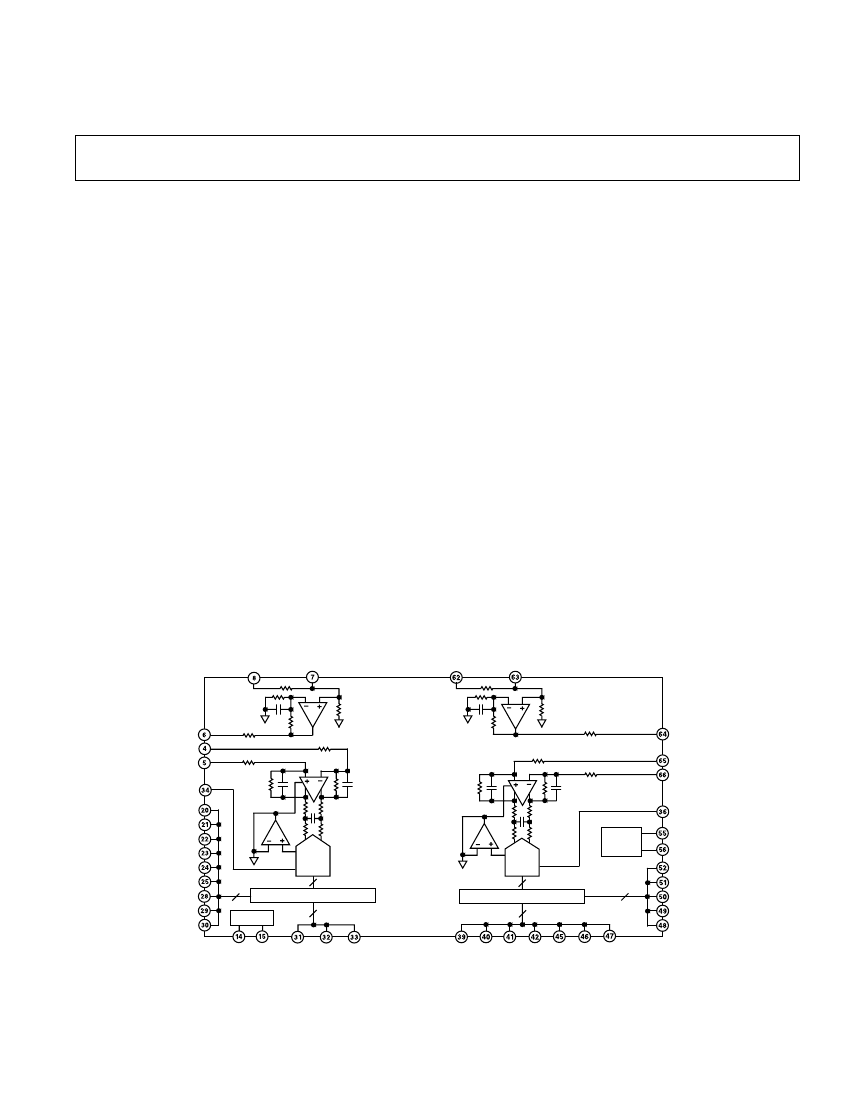

FUNCTIONAL BLOCK DIAGRAM
AMP-IN-A-2
AMP-IN-A-1
AMP-IN-B-2
AMP-IN-B-1
AMP-OUT-A
A–IN
A+IN
DROUTA
(LSB) D0A
D1A
D2A
D3A
D4A
D5A
D6A
D7A
D8A
TIMING
9
VREF
DROUT
12
100
OUTPUT TERMINATORS
3
100
VREF
DROUT
12
OUTPUT TERMINATORS
7
5
AMP-OUT-B
AD13280
B+IN
B–IN
DROUTB
ENC
TIMING
ENC
D11B (MSB)
D10B
D9B
D8B
D7B
D9A
D10A D11A
(MSB)
D0B D1B D2B D3B D4B D5B
(LSB)
D6B
ENC
ENC
REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
© Analog Devices, Inc., 2001
AD13280–SPECIFICATIONS
Parameter
RESOLUTION
DC ACCURACY
1
No Missing Codes
Offset Error
Offset Error Channel Match
Gain Error
2
Gain Error Channel Match
(AV
CC
= +5 V, AV
EE
= –5 V, DV
CC
= +3.3 V; applies to each ADC with Front-End
Amplifier unless otherwise noted.)
Temp
Test
Level
Mil
Subgroup
Min
AD13280AZ/BZ
Typ
Max
12
Full
25°C
Full
Full
25°C
Full
25°C
Max
Min
IV
I
VI
VI
I
VI
I
VI
VI
12
1
2, 3
1, 2, 3
1
2, 3
1
2
3
Guaranteed
±
1.0
±
1.0
±
0.1
–1.0
±
2.0
±
0.5
±
1.0
±
1.0
Unit
Bits
–2.2
–2.2
–1.0
–3
–5.0
–1.5
–3.0
–5
+2.2
+2.2
+1.0
+1
+5.0
+1.5
+3.0
+5
% FS
% FS
%
% FS
% FS
%
%
%
SINGLE-ENDED ANALOG INPUT
Input Voltage Range
AMP-IN-X-1
AMP-IN-X-2
Input Resistance
AMP-IN-X-1
AMP-IN-X-2
Capacitance
Analog Input Bandwidth
3
DIFFERENTIAL ANALOG INPUT
Analog Signal Input Range
A+IN to A–IN and B+IN to B–IN
4
Input Impedance
Analog Input Bandwidth
ENCODE INPUT (ENC,
ENC)
1
Differential Input Voltage
Differential Input Resistance
Differential Input Capacitance
SWITCHING PERFORMANCE
Maximum Conversion Rate
5
Minimum Conversion Rate
5
Aperture Delay (t
A
)
Aperture Delay Matching
Aperture Uncertainty (Jitter)
ENCODE Pulsewidth High at Max Conversion Rate
ENCODE Pulsewidth Low at Max Conversion Rate
Output Delay (t
OD
)
Encode, Rising to Data Ready, Rising Delay
SNR
1, 6
Analog Input @ 10 MHz
Full
Full
Full
Full
25°C
Full
V
V
IV
IV
V
V
12
12
99
198
±
0.5
±
1.0
100
200
4.0
100
101
202
7.0
V
V
Ω
Ω
pF
MHz
Full
25°C
Full
Full
25°C
25°C
Full
Full
25°C
25°C
25°C
25°C
25°C
Full
Full
25°C
Min
Max
25°C
Min
Max
25°C
Min
Max
25°C
Min
Max
25°C
Min
Max
25°C
Min
Max
V
V
V
IV
V
V
VI
IV
V
IV
V
IV
IV
V
V
I
II
II
I
II
II
I
II
II
I
II
II
I
II
II
I
II
II
12
0.4
±
1
618
50
V
Ω
MHz
V p-p
kΩ
pF
MSPS
MSPS
ns
ps
ps rms
ns
ns
ns
ns
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
dBFS
10
2.5
4, 5, 6
12
12
12
12
4.75
4.75
80
20
1.5
250
0.3
6.25
6.25
5
8.5
70
500
8
8
Analog Input @ 21 MHz
Analog Input @ 37 MHz
4
6
5
4
6
5
4
6
5
4
6
5
4
6
5
4
6
5
67.5
64.5
67.5
67.5
64
67.5
63.5
61.5
63.5
67
63.5
67
65
63
65
54.5
53
54.5
70
65
SINAD
1, 7
Analog Input @ 10 MHz
69
Analog Input @ 21 MHz
68.5
Analog Input @ 37 MHz
59
–2–
REV. 0
AD13280
Parameter
SPURIOUS-FREE DYNAMIC RANGE
1, 8
Analog Input @ 10 MHz
Temp
25°C
Min
Max
25°C
Min
Max
25°C
Min
Max
25°C
25°C
25°C
25°C
25°C
Min
Max
25°C
25°C
25°C
25°C
Test
Level
I
II
II
I
II
II
I
II
II
V
V
V
V
I
II
II
V
V
IV
V
4
6
5
4
4
12
90
25
CMOS
Full
Full
Full
Full
I
I
V
V
1, 2, 3
1, 2, 3
2.5
DVCC – 0.2
0.2
0.5
DVCC – 0.3
0.35
Two’s Complement
4.85
1, 2, 3
–5.25
1, 2, 3
3.135
1, 2, 3
1, 2, 3
1, 2, 3
5.0
310
–5.0
38
3.3
34
369
3.72
0.01
5.25
338
–4.75
49
3.465
46
433
4.05
V
V
V
V
75
71
75
Mil
Subgroup
4
6
5
4
6
5
4
6
5
AD13280AZ/BZ
Min
Typ
Max
75
70
75
68
67
68
56
55
56
80
Unit
dBFS
Analog Input @ 21 MHz
75
dBFS
Analog Input @ 37 MHz
62
dBFS
SINGLE-ENDED ANALOG INPUT
Passband Ripple to 10 MHz
Passband Ripple to 25 MHz
DIFFERENTIAL ANALOG INPUT
Passband Ripple to 10 MHz
Passband Ripple to 25 MHz
TWO-TONE IMD REJECTION
9
f
IN
= 9.1 MHz and 10.1 MHz
f
1
and f
2
are –7 dB
f
IN
= 19.1 MHz and 20.7 MHz
f
1
and f
2
are –7 dB
f
IN
= 36 MHz and 37 MHz
f
1
and f
2
are –7 dB
CHANNEL-TO-CHANNEL ISOLATION
10
TRANSIENT RESPONSE
DIGITAL OUTPUTS
11
Logic Compatibility
DVCC = 3.3 V
Logic “1” Voltage
Logic “0” Voltage
DVCC = 5 V
Logic “1” Voltage
Logic “0” Voltage
Output Coding
POWER SUPPLY
AV
CC
Supply Voltage
12
I (AV
CC
) Current
AV
EE
Supply Voltage
12
I (AV
EE
) Current
DV
CC
Supply Voltage
12
I (DV
CC
) Current
I
CC
(Total) Supply Current per Channel
Power Dissipation (Total)
Power Supply Rejection Ratio (PSRR)
0.05
0.1
0.3
0.82
80
dB
dB
dB
dB
dBc
77
60
dBc
dBc
dB
ns
Full
Full
Full
Full
Full
Full
Full
Full
Full
IV
I
IV
I
IV
I
I
I
V
V
mA
V
mA
V
mA
mA
W
% FSR/% V
S
NOTES
1
All ac specifications tested by driving ENCODE and
ENCODE
differentially. Single-ended input: AMP-IN-X-1 = 1 V p-p, AMP-IN-X-2 = GND.
2
Gain tests are performed on AMP-IN-X-1 input voltage range.
3
Full Power Bandwidth is the frequency at which the spectral power of the fundamental frequency (as determined by FFT analysis) is reduced by 3 dB.
4
For differential input: +IN = 1 V p-p and –IN = 1 V p-p (signals are 180
°
out of phase). For single-ended input: +IN = 2 V p-p and = –IN = GND.
5
Minimum and maximum conversion rates allow for variation in Encode Duty Cycle of 50%
±
5%.
6
Analog Input signal power at –1 dBFS; signal-to-noise ratio (SNR) is the ratio of signal level to total noise (first five harmonics removed). Encode = 80 MSPS. SNR
is reported in dBFS, related back to converter full scale.
7
Analog Input signal power at –1 dBFS; signal-to-noise and distortion (SINAD) is the ratio of signal level to total noise + harmonics. Encode = 80 MSPS. SINAD is
reported in dBFS, related back to converter full scale.
8
Analog Input signal at –1 dBFS; SFDR is ratio of converter full scale to worst spur.
9
Both input tones at –7 dBFS; two tone intermodulation distortion (IMD) rejection is the ratio of either tone to the worst third order intermod product.
10
Channel-to-channel isolation tested with A channel grounded and a full-scale signal applied to B Channel.
11
Digital output logic levels: DV
CC
= 3.3 V, C
LOAD
= 10 pF. Capacitive loads > 10 pF will degrade performance.
12
Supply voltage recommended operating range. AV
CC
may be varied from 4.85 V to 5.25 V. However, rated ac (harmonics) performance is valid only over the range
AV
CC
= 5.0 V to 5.25 V.
Specifications subject to change without notice.
REV. 0
–3–
AD13280
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL
AV
CC
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 7 V
AV
EE
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . –7 V to 0 V
DV
CC
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 7 V
Analog Input Voltage . . . . . . . . . . . . . . . . . . . . . V
EE
to V
CC
Analog Input Current . . . . . . . . . . . . . . –10 mA to +10 mA
Digital Input Voltage (ENCODE) . . . . . . . . . . . . . 0 to V
CC
ENCODE,
ENCODE
Differential Voltage . . . . . . . . 4 V max
Digital Output Current . . . . . . . . . . . . . . –10 mA to +10 mA
ENVIRONMENTAL
2
Operating Temperature (Case) . . . . . . . . . –40°C to +85°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 175°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . 300°C
Storage Temperature Range (Ambient) . . –65°C to +150°C
NOTES
1
Absolute maximum ratings are limiting values applied individually, and beyond
which the serviceability of the circuit may be impaired. Functional operability is not
necessarily implied. Exposure to absolute maximum rating conditions for an
extended period of time may affect device reliability.
2
Typical thermal impedance for “ES” package:
θ
JC
2.2°C/W;
θ
JA
24.3°C/W.
1
PIN CONFIGURATION
68-Lead Ceramic Leaded Chip Carrier
(ES-68C)
AMP-OUT-A
A+IN
B+IN
AMP-OUT-B
AMP-IN-A-2
AMP-IN-A-1
AMP-IN-B-1
AMP-IN-B-2
SHIELD
AGNDB
AGNDA
A–IN
AGNDA
AGNDA
AGNDB
9
8
7
6
5
4
3
2
1 68 67 66 65 64 63 62 61
PIN 1
IDENTIFIER
60
AGNDB
59
AV
EE
B
58
AV
CC
B
57
AGNDB
56
ENCODEB
55
ENCODEB
54
AGNDB
AGNDA
10
AV
EE
A
11
AV
CC
A
12
AGNDA
13
ENCODEA
14
ENCODEA
15
AGNDA
16
DV
CC
A
17
NC
18
NC
19
D0A(LSB)
20
D1A
21
D2A
22
D3A
23
D4A
24
D5A
25
DGNDA
26
AD13280
TOP VIEW
(Not to Scale)
AGNDB
53
DV
CC
B
52
D11B(MSB)
51
D10B
50
D9B
49
D8B
48
D7B
47
D6B
46
D5B
45
D4B
44
DGNDB
TEST LEVEL
I
100% Production Tested.
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
DROUTB
NC
NC
B–IN
D1B
D2B
D3B
D10A
D11A(MSB)
SHIELD
II 100% Production Tested at 25°C, and sample tested at
specified temperatures. AC testing done on sample basis.
III Sample Tested only.
IV Parameter is guaranteed by design and characterization
testing.
V Parameter is a typical value only.
VI 100% production tested with temperature at 25°C: sample
tested at temperature extremes.
ORDERING GUIDE
NC = NO CONNECT
Model
AD13280AZ
AD13280AF
5962-0053001HXA
AD13280/PCB
Temperature Range (Case)
–25°C to +85°C
–25°C to +85°C
–40°C to +85°C
25°C
Package Description
68-Lead Ceramic Leaded Chip Carrier
68-Lead Ceramic Leaded Chip Carrier
with Nonconductive Tie-Bar
68-Lead Ceramic Leaded Chip Carrier
Evaluation Board with AD13280AZ
D0B(LSB)
DROUTA
DGNDA
Package Option
ES-68C
ES-68C
ES-68C
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD13280 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
–4–
DGNDB
D6A
D7A
D8A
D9A
REV. 0
AD13280
PIN FUNCTION DESCRIPTIONS
Pin No.
1, 35
2, 3, 9, 10, 13, 16
4
5
6
7
8
11
12
14
15
17
18, 19, 37, 38
20–25, 28–33
26, 27
34
36
39–42, 45–52
43, 44
53
54, 57, 60, 61, 67, 68
55
56
58
59
62
63
64
65
66
Name
SHIELD
AGNDA
A–IN
A+IN
AMP-OUT-A
AMP-IN-A-1
AMP-IN-A-2
AV
EE
A
AV
CC
A
ENCODEA
ENCODEA
DV
CC
A
NC
D0A–D11A
DGNDA
DROUTA
DROUTB
D0B–D11B
DGNDB
DV
CC
B
AGNDB
ENCODEB
ENCODEB
AV
CC
B
AV
EE
B
AMP-IN-B-2
AMP-IN-B-1
AMP-OUT-B
B+IN
B–IN
Function
Internal Ground Shield between Channels
A Channel Analog Ground. A and B grounds should be connected as close to
the device as possible.
Inverting Differential Input (Gain = 1).
Noninverting Differential Input (Gain = 1).
Single-Ended Amplifier Output (Gain = 2).
Analog Input for A Side ADC (Nominally
±
0.5 V).
Analog Input for A Side ADC (Nominally
±
1.0 V).
A Channel Analog Negative Supply Voltage (Nominally –5.0 V or –5.2 V).
A Channel Analog Positive Supply Voltage (Nominally 5.0 V).
Complement of Encode; Differential Input.
Encode Input; Conversion Initiated on Rising Edge.
A Channel Digital Positive Supply Voltage (Nominally 5.0 V/ 3.3 V).
No Connect.
Digital Outputs for ADC A. D0 (LSB).
A Channel Digital Ground.
Data Ready A Output.
Data Ready B Output.
Digital Outputs for ADC B. D0 (LSB).
B Channel Digital Ground.
B Channel Digital Positive Supply Voltage (Nominally 5.0 V/ 3.3 V).
B Channel Analog Ground. A and B grounds should be connected as close to the
device as possible.
Encode Input; Conversion Initiated on Rising Edge.
Complement of Encode; Differential Input.
B Channel Analog Positive Supply Voltage (Nominally 5.0 V).
B Channel Analog Negative Supply Voltage (Nominally –5.0 V or –5.2 V).
Analog Input for B Side ADC (Nominally
±
1.0 V).
Analog Input for B Side ADC (Nominally
±
0.5 V).
Single-Ended Amplifier Output (Gain = 2).
Noninverting Differential Input (Gain = 1).
Inverting Differential Input (Gain = 1).
REV. 0
–5–
京公网安备 11010802033920号
EEWORLD
