SI533KC00100DG: Descriptiondual frequency crystal oscillator (XO) (10 mhz TO 1.4 ghz); File Size209KB，12 Pages; ManufacturerSilicon Laboratories Inc

Download Datasheet View All

SI533KC00100DG Overview

dual frequency crystal oscillator (XO) (10 mhz TO 1.4 ghz)

Preview

Download Datasheet

View All

Si533

EVISION

U A L

R E Q U E N C Y

R Y S TA L

S C I L L A T O R

(XO )

(10 M H

Z T O

1.4 G H

)

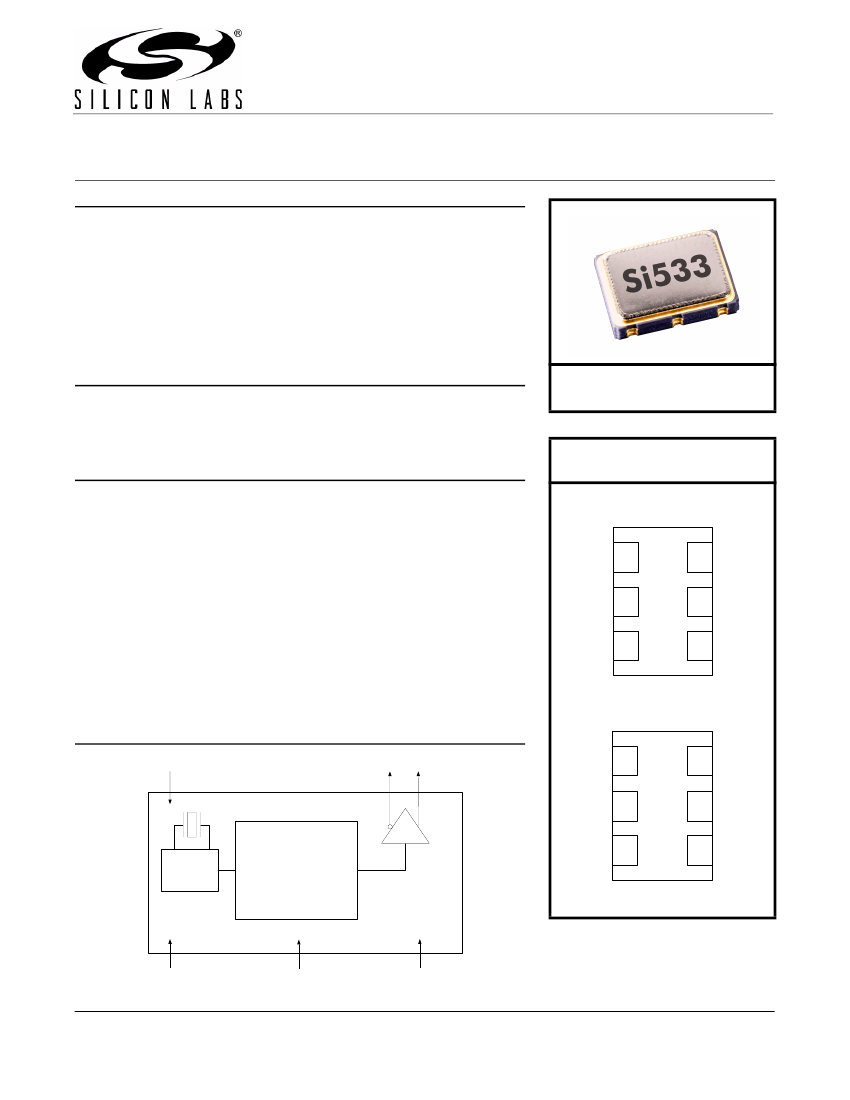

Features

Available with any-rate output

frequencies from 10 MHz to 945 MHz

and select frequencies to 1.4 GHz

2 selectable output frequencies

3rd generation DSPLL

with superior

jitter performance

3x better frequency stability than

SAW-based oscillators

Pin 1 output enable (OE)

Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Applications

SONET/SDH

Networking

SD/HD video

Clock and data recovery

FPGA/ASIC clock generation

Ordering Information:

See page 7.

Description

The Si533 dual frequency XO utilizes Silicon Laboratories’ advanced

DSPLL

circuitry to provide a low jitter clock at high frequencies. The Si533

is available with any-rate output frequency from 10 to 945 MHz and select

frequencies to 1400 MHz. Unlike a traditional XO, where a different crystal is

required for each output frequency, the Si533 uses one fixed crystal to

provide a wide range of output frequencies. This IC based approach allows

the crystal resonator to provide exceptional frequency stability and reliability.

In addition, DSPLL clock synthesis provides superior supply noise rejection,

simplifying the task of generating low jitter clocks in noisy environments

typically found in communication systems. The Si533 IC based XO is factory

configurable for a wide variety of user specifications including frequency,

supply voltage, output format, and temperature stability. Specific

configurations are factory programmed at time of shipment, thereby

eliminating long lead times associated with custom oscillators.

Pin Assignments:

See page 6.

(Top View)

GND

CLK–

CLK+

LVDS/LVPECL/CML

Functional Block Diagram

CLK– CLK+

CMOS

CLK+

Fixed

Frequency

Any-rate

10–1400 MHz

DSPLL®

Clock

Synthesis

GND

Rev. 1.1 6/07

Si533
