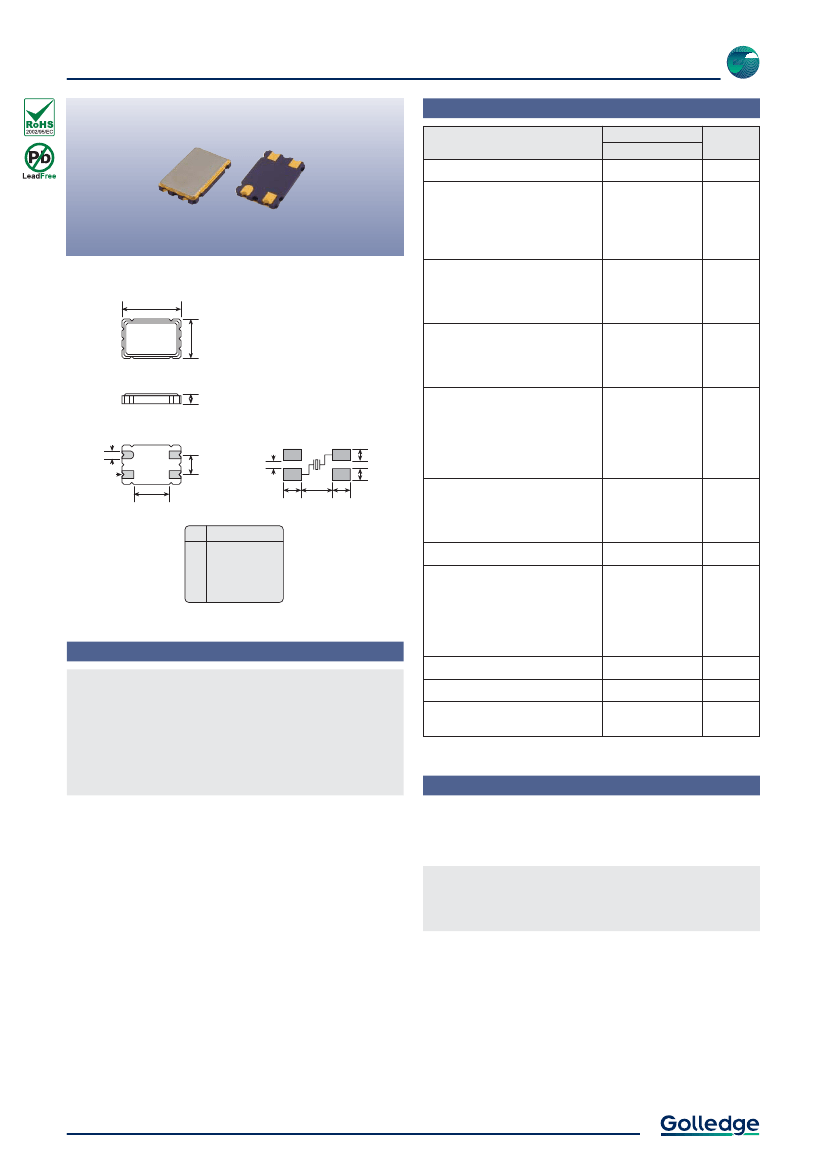

SM Crystal
Specifications
GSX-2
Parameters
Frequency range:
8.0 ~ 100.0MHz
Calibration tolerance:
±10ppm
±15ppm
±20ppm
±50ppm
Other values (±5ppm ~ ±100ppm)
±10ppm
±20ppm
±50ppm
Other values (±5ppm ~ ±100ppm)
Product
GSX-2
1
P
2
5
specify
1
2
5
specify
1
2
specify
D
E
F
J
S
specify
F
3
5
Option
Codes
Temperature stability:
7.50
(max)
5.00
(max)
Operating temperature range:
-10 to +60°C
-20 to +70°C
Other values
Circuit condition:
SOLDER PAD LAYOUT
16pF
18pF
20pF
30pF
Series resonant
Other values
1.10
(max)
1.00
1
0.60Ø
4
4.50
2
2.50
3
1
2.20
4.10
TOP VIEW
PAD
1
2
3
4
CONNECTION
Crystal
Ground & lid
Crystal
Ground & lid
2
2.20
1.40
1.14
4
3
1.40
Oscillation mode:
Fundamental (8.0 ~ 36.0MHz)
3rd overtone (28.0 ~ 84.0MHz)
5th overtone (84.0 ~ 160MHz)
Static capacitance (C
0
):
7pF max
Features
Equivalent series resistance (max):
60Ω (8.0~ 9.9MHz)
50Ω (10.0 ~ 15.9MHz)
40Ω (16.0 ~ 32.0MHz, fund)
60Ω (28.0 ~ 84.0MHz, 3rd OT)
80Ω (84.1 ~ 100MHz, 5th OT)
Ageing:
±5ppm max first year
100μW
Frequencies up to 100MHz
Tight specifications available
Metal lid can be grounded to minimise EMI
Low height for maximum space saving
Test drive level:
Soldering condition:
260°C, 10 sec x2 max
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + option codes + frequency
eg:
GSX-2/551DF 32.0MHz
50/50/10/16-F (standard)
GSX-2/121S3 72.0MHz
10/20/10/SR-3
Option code X (eg GSX-2/X) denotes a custom specification.
Available on T&R - 3k pcs per reel.
Refer to our website for T&R and soldering details.
GSX-1B or GSX-751 are more cost effective with same footprint if
height and specifications allow.
