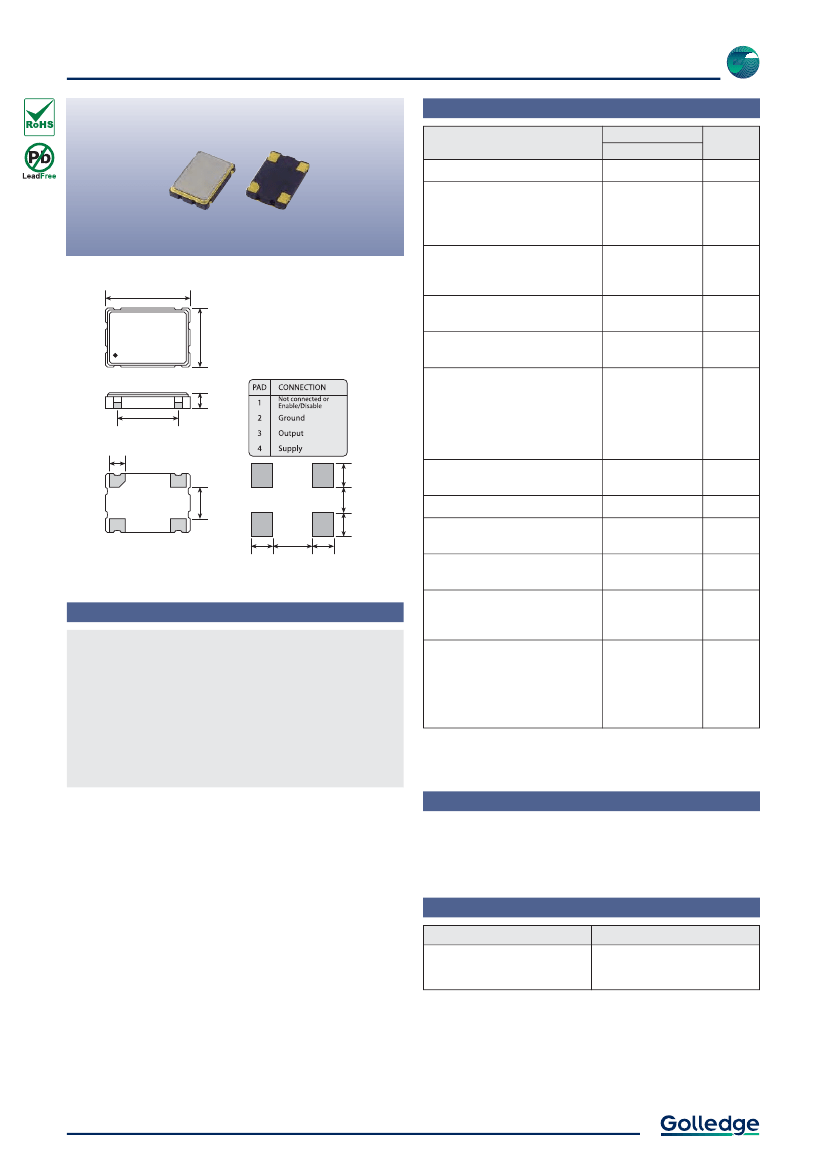

5V CMOS Oscillator
Specifications
2011/65/EU
GXO-7551
Parameters
Frequency range:
Frequency stability:
0.50 ~ 107MHz
±100ppm
±50ppm
±25ppm
±20ppm
Product
GXO-7551
N
B
A
D
Option
Codes
7.00
±0.20
Operating temperature range:
-10 to +70°C
-40 to +85°C
Storage temperature range:
-55 to +125°C
5.00
±0.20
I
Supply voltage (V
DD
):
+5.0V (±5%)
1.40
(max)
5.08
1.40
4
2.60
4
3
1
2
3
2.00
2.20
2.00
Supply current (max):
10mA (0.5 ~ 29.9MHz)
15mA (30.0 ~ 34.9MHz)
30mA (35.0 ~ 65.9MHz)
50mA (66.0 ~ 80.0MHz)
60mA (80.1 ~ 107MHz)
Logic levels:
‘0’ level = 10%V
DD
max
‘1’ level = 90%V
DD
min
Start up time:
10ms max
1
2
Waveform symmetry:
45:55 max
40:60 max (>50.0MHz)
Driving ability:
15pF CMOS (*see note)
Rise / fall time:
10ns max (<40MHz)
7ns max (40.0~99.9MHz)
5ns max (>100MHz)
Enable / disable function:
None (pad 1 not connected)
Standard tristate, no power saving
(E/D times 100ns / 100ns)
Power-saving, standby current 10μA
(E/D times 10ms / 100ns)
1.80
3.28
TOP VIEW
1.80
Features
Ceramic package with metal lid
Standard frequencies held in stock
Enable / disable tristate function
Power saving option
Competitive pricing
P
Standard.
Optional - Please specify required code(s) when ordering
* Note: will drive up to 50pF, but figures for rise/fall and supply current may vary from
those shown. For details, contact our sales office.
Ordering Information
Product name + option codes (if any) + frequency
eg:
GXO-7551 32.0MHz
5V, ±100ppm, -10+70°C
GXO-7551/BIP 40.0MHz
5V, ±50ppm, -40+85°C, power-saving
Option code X (eg GXO-7551/X) denotes a custom spec.
Enable / Disable Function
Input (pad 1)
Open
‘1’ level
‘0’ level
Output (pad 3)
Enabled
Enabled
High Impedance
Tel:
+44 1460 256 100
16 Jun 2015
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
Product Information
Construction
GXO-7551
Ceramic body with gold-plated pads
Metal lid, seam sealed
Composition
This product is lead-free, and is fully compliant with
the RoHS 2 directive 2011/65/EU
2011/65/EU
Packaging & Handling
Production quantities supplied on T&R, 1k pcs per reel.
Small quantities may be supplied on tape (no reel), or in bulk.
Static sensitive product. Observe proper handling precautions
Soldering Profile
°C
260
260°C ±5°C
10s max
Marking
GOLLEDGE
FREQUENCY
PARTNO DC
Pin 1
Marking type: Laser
DC = Date code in YM, eg “EC” = Mar 2015
200
5°C/s max
A
B
C
D
E
F
G H
J
K
L M
Y
1
2
3
4
5
6
7
8
9
0
M Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
100
5°C/s max
Tape & Reel Specification
5.8
±0.05
Preheat
140~160°C
1.50Ø
1.75
0
90s max
200s max
Heat
> 200°C
40s max
Slow
cooldown
Time
4.0 2.0
0.3
5°
6.75
±0.05
7.7
16.0
±0.3
MARK
2.5
8.0
2.0
120°
1.50
21Ø
200Ø
FEED
17.5
-1.5
+2.0
13Ø
80Ø
Not to scale. Dimensions in mm. Tolerances ±0.1mm unless otherwise stated.
