0850090103: Description2.54mm (.100") pitch din 41612 M style male header, right angle, through hole, 52 circuits; CategoryThe connector The connector; File Size140KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

0850090103 Overview

2.54mm (.100") pitch din 41612 M style male header, right angle, through hole, 52 circuits

0850090103 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARDS: DIN 41612, IEC 603-2, POLARIZED
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	85009
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	52
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850090103

Active

din_41612

2.54mm (.100") Pitch DIN 41612 M Style Male Header, Right Angle, Through Hole, 52

Circuits, without Mounting Clips, No Flux Proof

Documents:

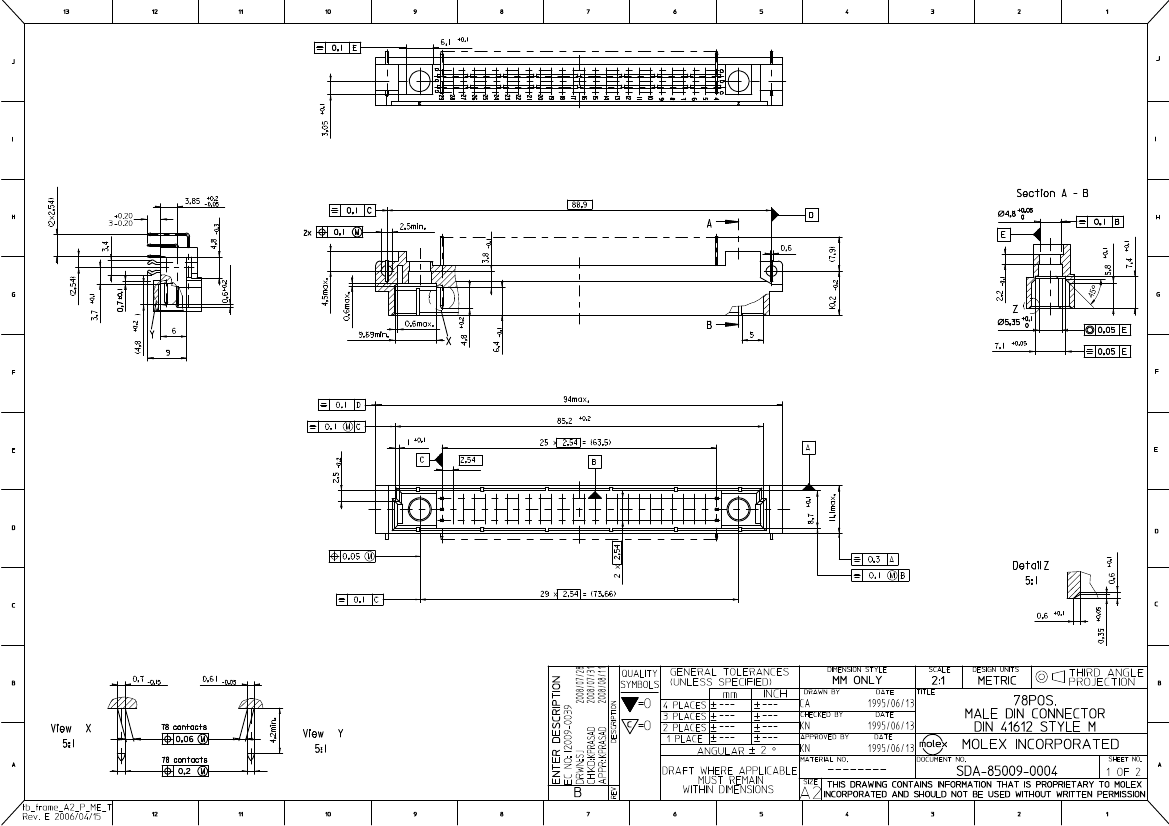

Drawing (PDF)

Product Specification PS-85003-0001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

85009

Backplane

No Mounting Clips. No Flux Proof

PCB Header

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

85009Series

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Standard Contacts at: A:a4-a29; C:c4-c29

400

94V-0

Yes

Brass

Gold

Tin

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

2.5

Yes

0850090103 Related Products

	0850090103	85009-0103
Description	2.54mm (.100") pitch din 41612 M style male header, right angle, through hole, 52 circuits	2.54mm (.100") pitch din 41612 M style male header, right angle, through hole, 52 circuits
