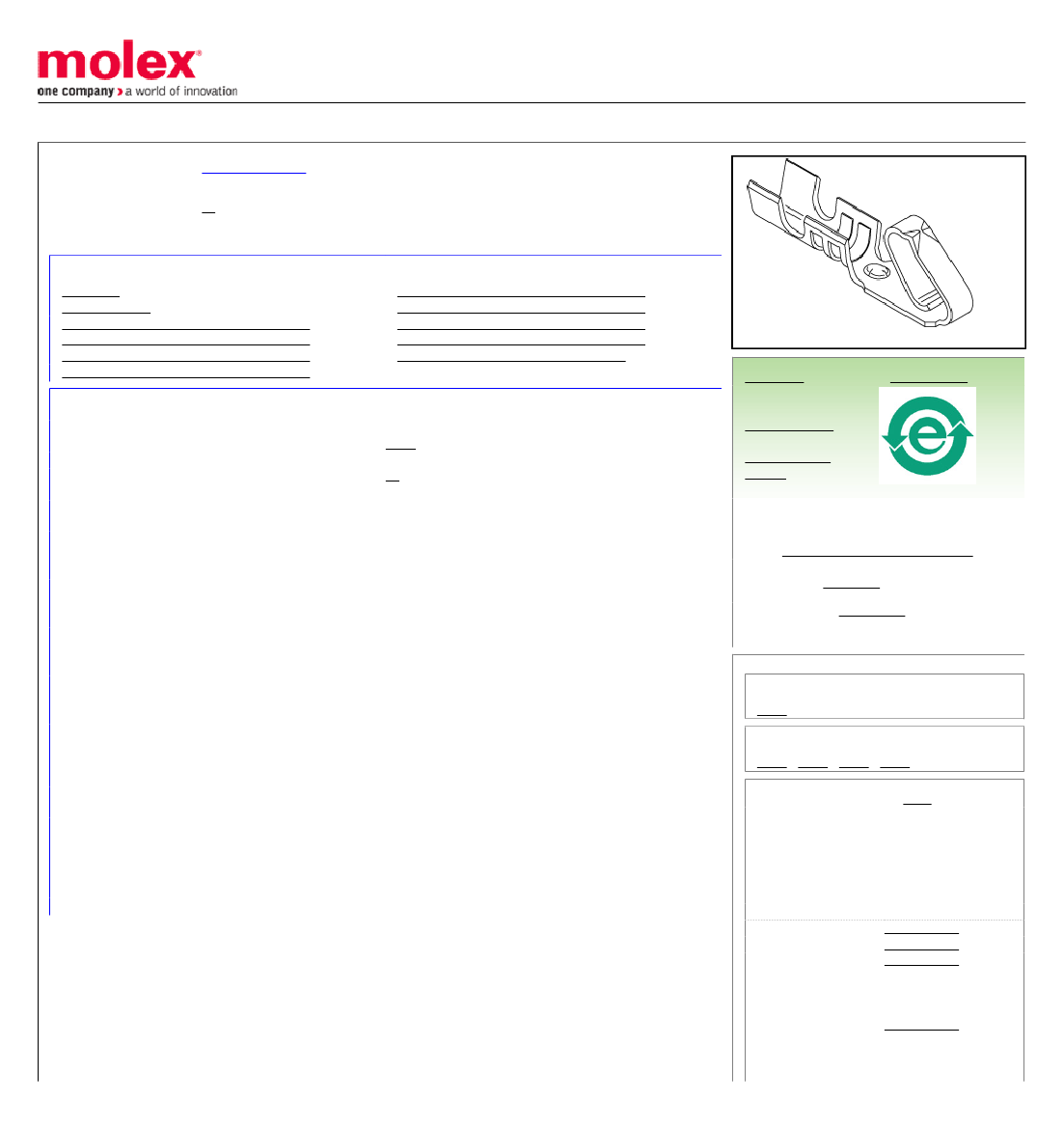

This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0008700064
Active
kk
KK® Cat Ear Crimp Terminal 5159, 22-28 AWG, Reel, Brass, Tin (Sn) over Copper
Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5045-001 (PDF)
Product Specification PS-5045-002 (PDF)
Product Specification PS-5047-001 (PDF)
Product Specification PS-5051-003 (PDF)
Product Specification PS-5051-004 (PDF)
Product Specification PS-5102-004 (PDF)
Product Specification PS-5159-001 (PDF)
Product Specification PS-5159-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5159
Yes
kk
Cat Ear, KK®
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
Reel
35
0.88
35
0.88
Crimp or Compression
1.20-1.70mm (.047-.067")
22, 24, 26, 28
N/A
Search Parts in this Series
5159Series
Use With
2695 , 5051 , 6471 , 3071
Material Info
Old Part Number
5159T
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-5159-001
PS-5045-001, PS-5045-002, PS-5047-001,
PS-5051-003, PS-5051-004, PS-5102-004,
PS-5159-001, PS-5159-002, RPS-3094-001,
RPS-5051-007
SD-5159*

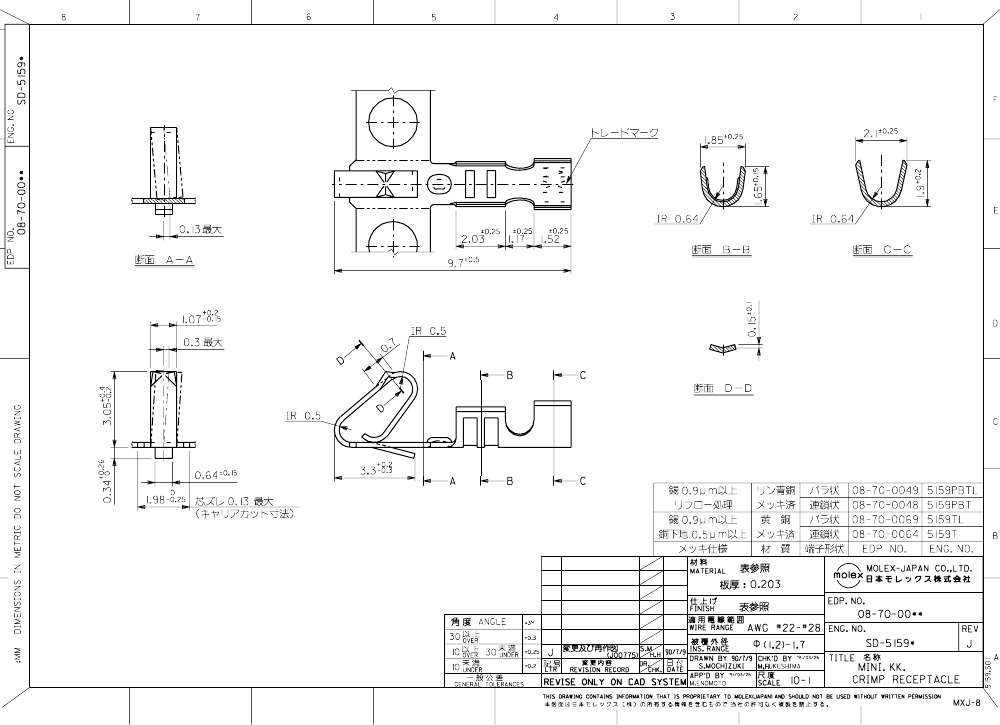

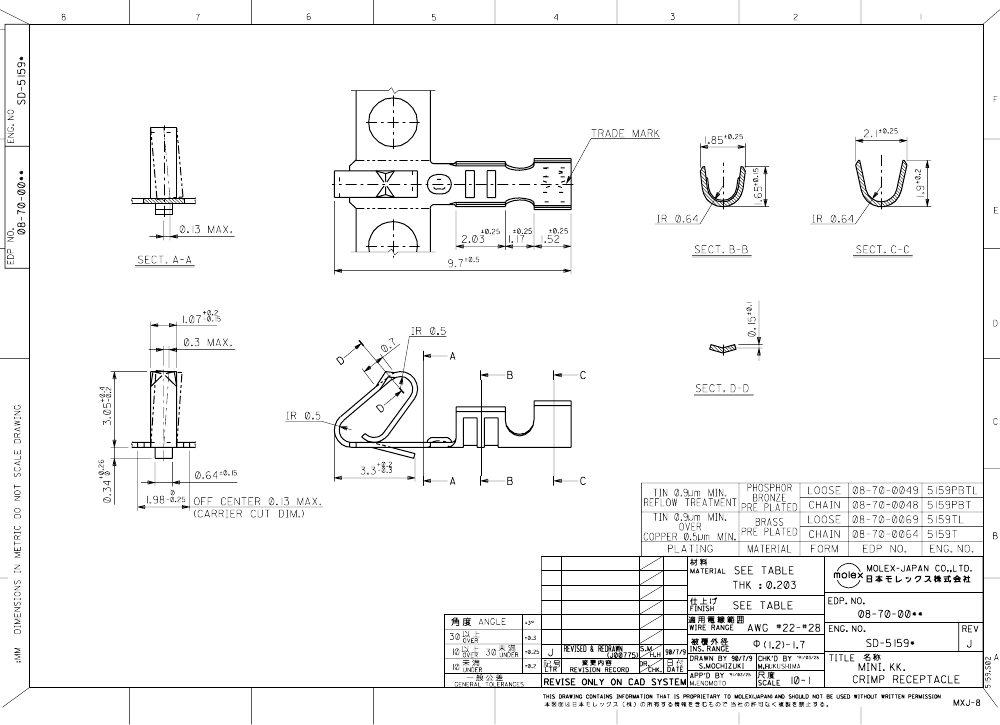

Sales Drawing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0011030022
Insertion Tool
0638120000
Mini-Mac™
0638882000
Applicator, Use with
Large Wire Insulation
Diameter
Mini-Mac™
0638882100
Applicator, Use with
Small Wire Insulation
Diameter
