M
ULTI
-L
AYER
H
IGH
-Q C
APACITORS

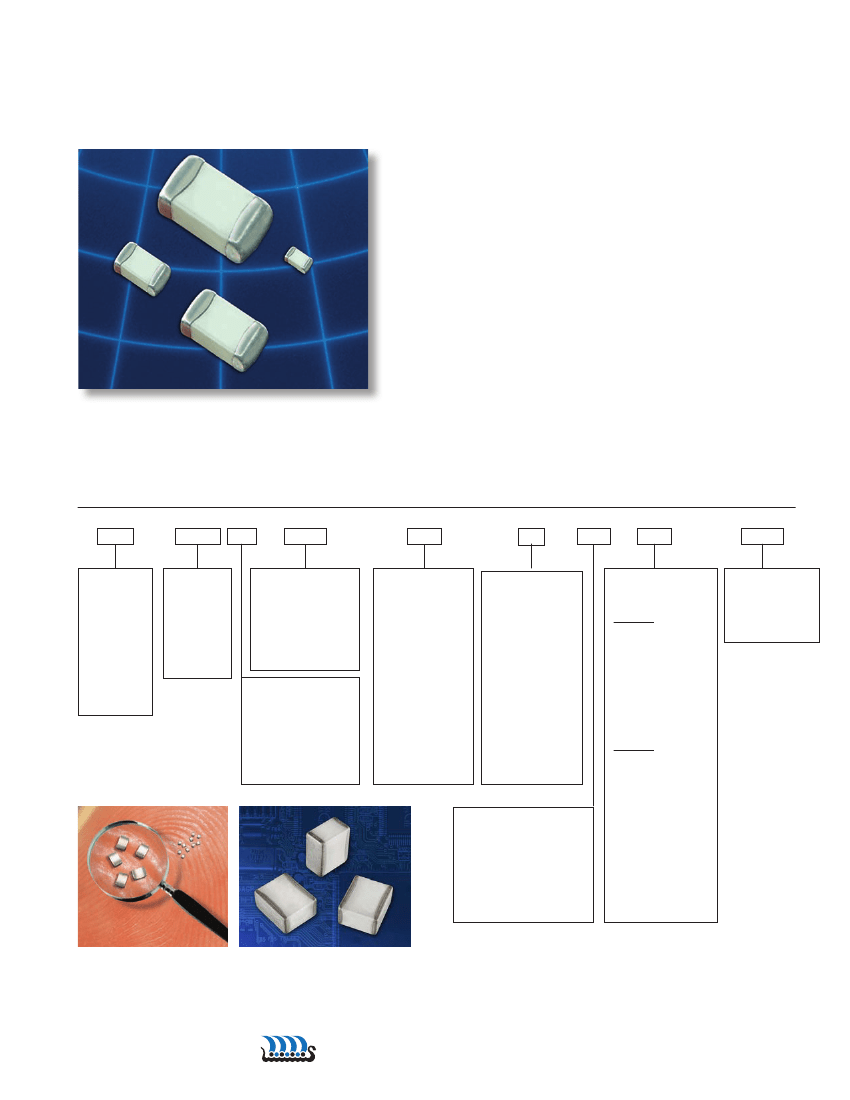

These lines of multilayer capacitors have been developed for
High-Q and microwave applications.
•
The S-Series (R07S, R14S, R15S) capacitors give an ultra-
high Q performance, and exhibit NP0 temperature characteris-
tics.
•
The L-Series (R05L) capacitors give mid-high Q performance,
and exhibit NP0 temperature characteristics.
•
The E-Series (S42E, S48E, S58E) capacitors give excellent
high-Q performance from HF to Microwave frequencies.
Typical uses are high voltage, high current applications. These are
o ered in various terminations styles.
•
RoHS compliance is standard for all unleaded parts (see
termination options box).
•
Automotive versions (AEC-Q200) of R05L, R07S, R14S,
R15S, and S42E series are available on request
H
OW TO
O
RDER
252
WVDC
2
250 = 25 V
500 = 50V
201 = 200 V
251 = 250 V
501 = 500 V
102 = 1000 V
152 = 1500 V
252 = 2500 V
362 = 3600 V
722 = 7200 V
S48
CASE SIZE
R05 (0201)
R07 (0402)
R14 (0603)
R15 (0805)
S42 (1111)
S48 (2525)
S58 (3838)
E
470
CAPACITANCE (pF)
1st two digits are
signi cant; third digit
denotes number of
zeros, R = decimal.
100 = 10 pF
101 = 100 pF
K
TOLERANCE
< 10pF
A = ± 0.05 pF
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
≥ 10pF
F = ±1 %
G = ±2%
J = ±5%
K = ± 10%
For tolerance
availability, see
chart.
V
TERMINATION
Nickel Barrier
V = Ni/Sn (Green)
T = Ni/SnPb
G = Ni/Au (Green)
Non-Mag
1
U = Cu/Sn (Green)
C = Cu/SnPb
Leaded (All Non-
Mag)
1
1 = Microstrip
2 = Axial Ribbon
3 = Axial Wire
4 = Radial Ribbon
5 = Radial Wire
4
E
PACKAGING
S = Bulk
W = Waffle Pack
0201 - 0603
Y = Paper 5” Reel
T = Paper 7” Reel
R
1
= Paper 13” Reel
J
1
= Paper 5” Reel -
Horizontally Oriented Electrodes
1
-AEC
QUALIFICATION
AEC-Q200
qualification
3
(optional)
DIELECTRIC
S = Ultra High Q NPO
L = High Q NPO
E = Ultra High Q NPO,
High Voltage, High
Power
G = Fully Oriented,
Ultra High-Q NPO
N = Paper 5” Reel -
L = Paper 7” Reel -
Vertically Oriented Electrodes
1
Horizontally Oriented Electrodes
1
V = Paper 7” Reel -
Part Number written:
252S48E470KV4E
Vertically Oriented Electrodes
0805 - 3838
Z = Embossed 5” Reel
E = Embossed 7” Reel
U
1
= Embossed 13” Reel
M
1
= Embossed 5” Reel -
Horizontally Oriented Electrodes
1
MARKING
3 = Cap Code
& Tolerance
4 = No Marking
6 = EIA Code
(Marking option is only available
on 0805 and larger case sizes)
Q = Embossed 5” Reel -
G = Embossed 7” Reel -
P = Embossed 7” Reel -
Tape specifications
conform to EIA RS481
Vertically Oriented Electrodes
1
Horizontally Oriented Electrodes
1
Vertically Oriented Electrodes
1
2
- Not available for all MLCC - Call factory for info.
- WVDC - Working Voltage DC.
3
-Quali cation required for automotive application, Not available for all series - Call factory for info.
www.johansontechnology.com
7
D
IELECTRIC
C
HARACTERISTICS
TEMPERATURE COEFFICIENT:
QUALITY FACTOR / DF:
INSULATION RESISTANCE:
NPO
0 ± 30ppm /°C, -55 to 125°C
Q
>1,000 @ 1KHz (C>1,000pF), Typical 10,000 (C<1,000 pF)
>100 G @ 25°C,WVDC
1
;
125°C IR is 10% of 25°C rating
1MHz
±
50kHz, 1.0
±
0.2VRMS for capacitance values ≤ 1,000pF
1kHZ
±
50Hz, 1.0
±
0.2VRMS for capacitance values > 1,000pF
TEST PARAMETERS:
DIELECTRIC STRENGTH:
500 V ≤ 2.5 X WVDC
1
Min., 25°C, 50 mA max
1000 V ≤ 1.5 X WVDC
1
Min., 25°C, 50 mA max
> 1500 = 1 X WVDC
1
Min., 25°C, 50 mA max
AVAILABLE CAPACITANCE:
Size 0201:
Size 0402:
Size 0603:
Size 0805:
0.2 - 100 pF
0.2 - 33 pF
0.2 - 100 pF
0.3 - 220 pF
Size 1111: 0.2 - 1000 pF
Size 2525: 1.0 - 2700 pF
Size 3838: 1.0 - 5100 pF
*ON REQUEST, WE CAN EXTEND THE HIGHEST TEMPERATURE TO +150° C FOR ANY OF OUR HIGH Q SERIES
M
ECHANICAL
& E
NVIRONMENTAL
C
HARACTERISTICS
SPECIFICATION
SOLDERABILITY:
RESISTANCE TO
SOLDERING HEAT:
Solder coverage ≥ 90% of metalized areas
No termination degradation
No mechanical damage
Capacitance change: ±2.5% or 0.25pF
Q>500 I.R. >10 G Ohms
DWV
2
: 2.5 x WVDC
1
Termination should not pull off.
Ceramic should remain undamaged.
No mechanical damage.
Capacitance change: 5% or
0.5pF whichever is greater.
MIL-STD-202, Method 108l
No mechanical damage
Capacitance change: ±3.0% or 0.3 pF
Q>500 I.R. >1 G Ohms
DWV
2
: 2.5 x WVDC
1
No mechanical damage.
Capacitance change: ±2.5% or 0.25pF
Q>2000 I.R. >10 G Ohms
DWV
2
: 2.5 x WVDC
1
No mechanical damage.
Capacitance change: ±5.0% or 0.50pF max.
Q>300 I.R. ≥ 1 G-Ohm
DWV
2
: 2.5 x WVDC
1
No mechanical damage.
Capacitance change: ±5.0% or 0.50pF max.
Q>300 I.R. = 1 G-Ohm min.
DWV
2
: 2.5 x WVDC
1
No mechanical damage.
Capacitance change: ±2.5% or 0.25pF
Q>1000 I.R. ≥ 10 G-Ohm
DWV
2
: 2.5 x WVDC
1
1
2
TEST PARAMETERS
Preheat chip to 120°-150°C for 60 sec., dip terminals in rosin flux
then dip in Sn62 solder @ 240°±5°C for 5±1 sec
Preheat device to 80°-100°C for 60 sec.
followed by 150°-180°C for 60 sec.
Dip in 260°±5°C solder for 10±1 sec.
Measure after 24±2 hour cooling period
Linear pull force
3
exerted on axial leads soldered to each terminal.
Glass epoxy PCB: 2 mm deflection
TERMINAL
ADHESION:
PCB DEFLECTION:
LIFE TEST:
Applied voltage: 200% of WVDC
1
for capacitors rated at 500 volts DC or less.
100% of WVDC
1
for capacitors rated at 1250 volts DC or less.
Temperature: 125°±3°C
Test time: 1000+48-0 hours
5 cycles of: 30±3 minutes @ -55°+0/-3°C,
2-3 min. @ 25°C, 30±3 min. @ +125°+3/-0°C,
2-3 min. @ 25°C
Measure after 24±2 hour cooling period
Relative humidity: 90-95%
Temperature: 40°±2°C
Test time: 500 +12/-0 Hours
Measure after 24±2 hour cooling period
Applied voltage: 1.5 VDC, 50 mA max.
Relative humidity: 85±2% Temperature: 40°±2°C
Test time: 240 +12/-0 Hours
Measure after 24±2 hour cooling period
Cycle performed for 2 hours in each of three perpendicular directions
Frequency range 10Hz to 55 Hz to 10 Hz traversed
in 1 minute. Harmonic motion amplitude: 1.5mm
THERMAL CYCLE:
HUMIDITY,
STEADY STATE:
HUMIDITY,
LOW VOLTAGE:
VIBRATION:
- WVDC - Working Voltage DC.
- DWV - Dielectric Withstanding Voltage.
3
- 0402
≥
2.0lbs, 0603
≥
4.0lbs (min)
.
AEC-Q200: Quali cation required for automotive application - Not available for all series - Call factory for info.
10
www.johansontechnology.com
M
ECHANICAL
C
HARACTERISTICS
Size
Units
In
mm
In
mm
In
mm
In
mm
Length
Width
Thickness
End Band
EIA 0201
Metric (0603)
EIA 0402
Metric (1005)
EIA 0603
Metric (1608)
EIA 0805
Metric (2012)
.024 ±.001
(0.60 ±0.03)
.040 ±.004
(1.02 ±0.1)
.062 ±.006
(1.57 ±0.15)
.080 ±.008
(2.03 ±0.20)
.012 ±.001
(0.30 ±0.03)
.020 ±.004
(0.51 ±0.1)
.032 ±.006
(0.81 ±0.15)
.050 ±.008
(1.27 ±0.20)
.012 ±.001
(0.30 ±0.03)
.020 ±.004
(0.51 ±0.1)
.030 +.005/-.003
(0.76 +.13-.08)
.040 ±.006
(1.02 ±.15)
.008 Max.
(0.20 Max.)
.010 ±.006
(0.25 ±.15)
.014 ±.006
(0.35 ±.15)
.020 ±.010
(0.50 ±.25)

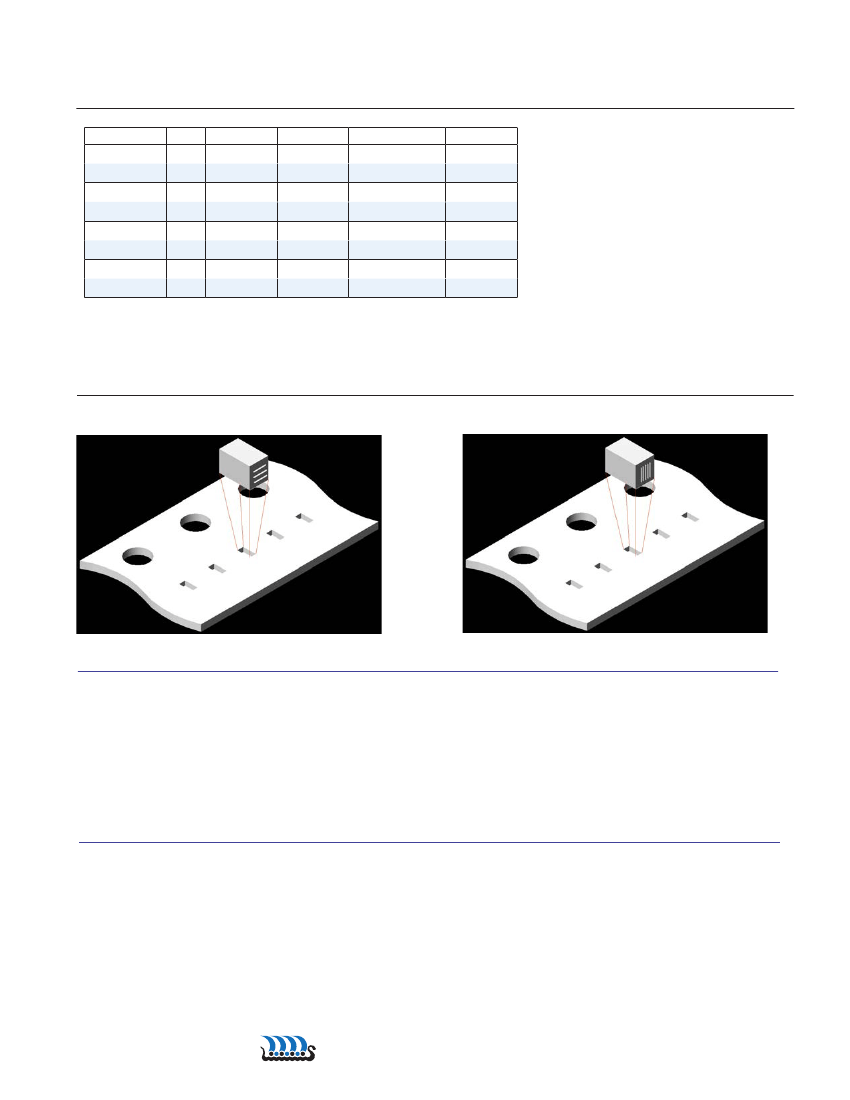

H
ORIZONTAL AND
V
ERTICLE
O
RIENTED
C
APACITORS
Horizontal Electrode Orientation
Vertical Electrode Orientation
A
PPLICATIONS
& F
EATURES
Size:
Performance:
Termination:
Applications:
RoHS Compliant
EIA 0201, 0805, 1111
SRF’s up to 20 GHz, Ultra High Q, Tight tolerance, Ultralow ESR
Ni/Au, Ni/Sn, Ni/SnPb
High Frequency Wireless Communications, Portable Wireless Products, Battery Powered
Products
B
ENIFITS OF USING
O
RIENTED
C
APACITORS
•
•
•
•
•
Consistent Orientation - Improved repeatability of production circuits.
Consistent Orientation - More consistent filter performance.
Vertical Orientation - The elimination of parallel frequencies.
Vertical Orinetation - Lower inductance for a given capacitor.
Horizontal Orientation - Lower coupling between adjacent capacitors.
www.johansontechnology.com
11
