0050579023

Description
2.54mm (.100") pitch SL? crimp housing, single row, version A, nonpolarized, 23 circuits
CategoryThe connector    The connector
File Size111KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0050579023 Online Shopping

Suppliers Part Number Price MOQ In stock
0050579023 - - View Buy Now

0050579023 Overview

2.54mm (.100") pitch SL? crimp housing, single row, version A, nonpolarized, 23 circuits

0050579023 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Factory Lead Time9 weeks
Is SamacsysN
Other featuresSTACKABLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number70066
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeCRIMP
Total number of contacts23
UL Flammability Code94V-0
Base Number Matches1

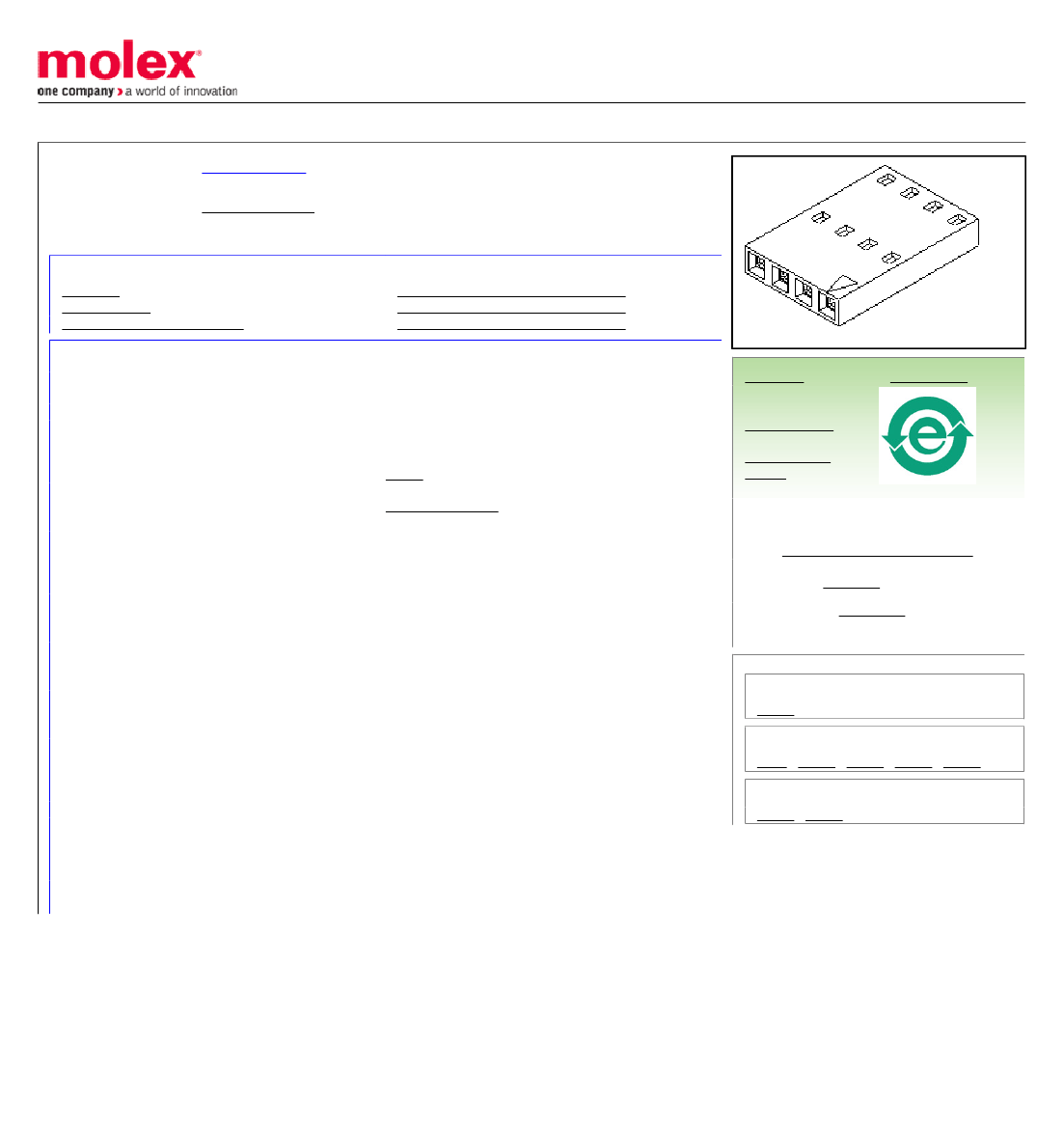

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0050579011
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Crimp Housing, Single Row, Version A, Nonpolarized, 11
Circuits
Documents:
3D Model

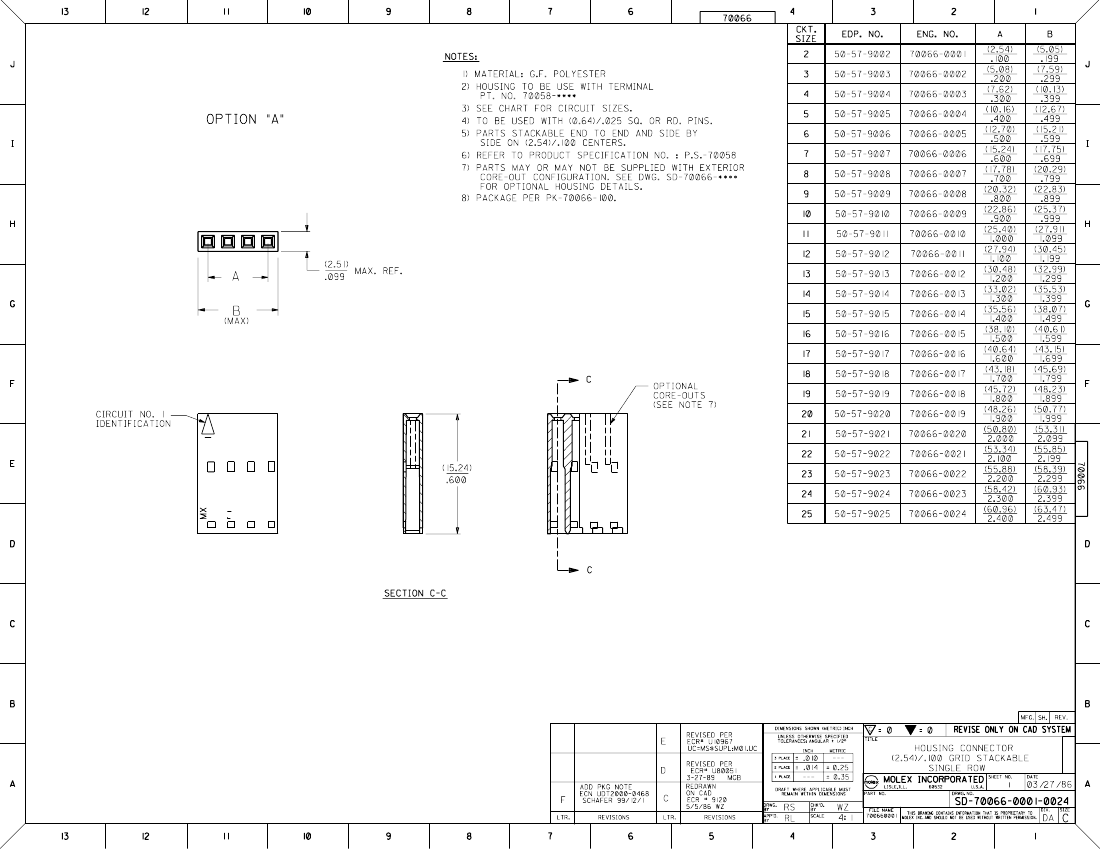

Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-70058 (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
70066
Version A
cgrid__sl_products
SL™
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
11
Black
94V-0
Female
No
Polyester Alloy
1
Bag
No
0.100 In
2.54 mm
Yes
-40°C to +105°C
Search Parts in this Series
70066Series
Mates With
8624 , 70203 , 70206 , 42375 , 42377
Use With
70058 , 71851
Material Info
Old Part Number
70066-0010
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-70066-100
PS-70058, PS-70400
SD-70066-0001-0024
TS-70058-001
This document was generated on 05/19/2010
