3SK295ZQ-TL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 3SK295ZQ-TL

3SK295ZQ-TL: DescriptionUHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4; CategoryDiscrete semiconductor The transistor; File Size217KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

3SK295ZQ-TL Overview

UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4

3SK295ZQ-TL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	unknow
Shell connection	SOURCE
Configuration	SINGLE
Maximum drain current (ID)	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	16 dB
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

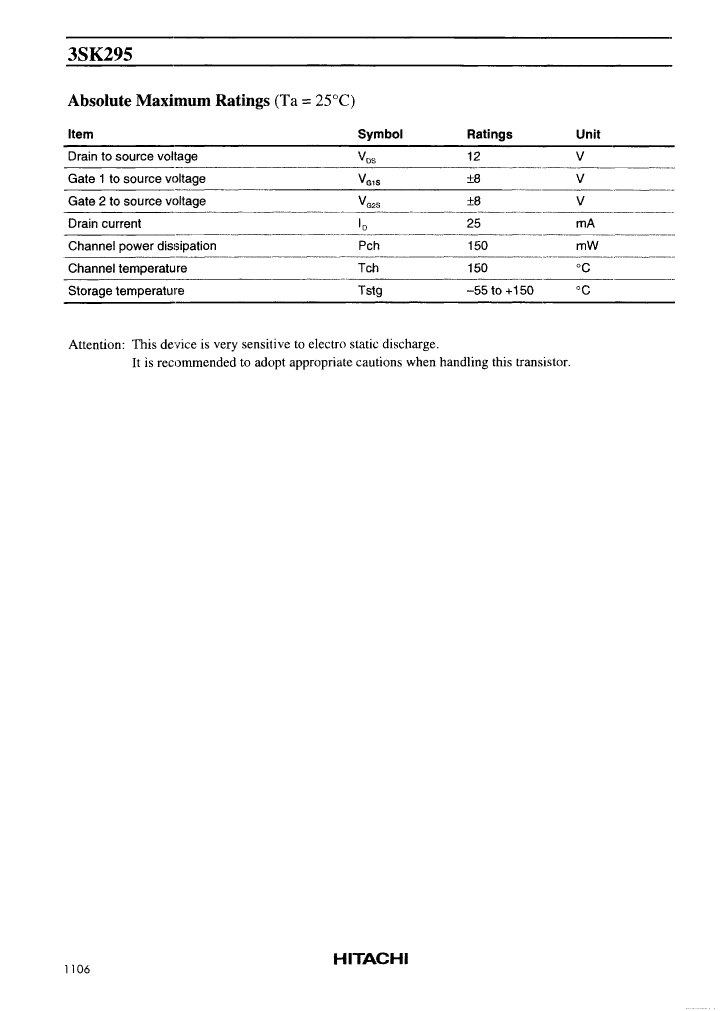

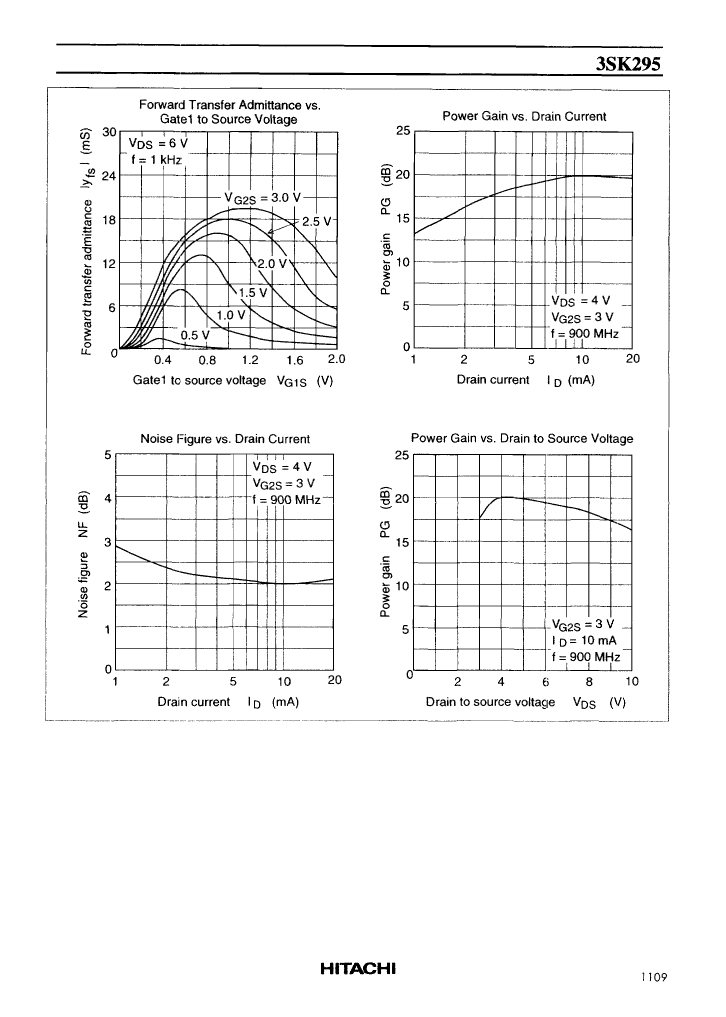

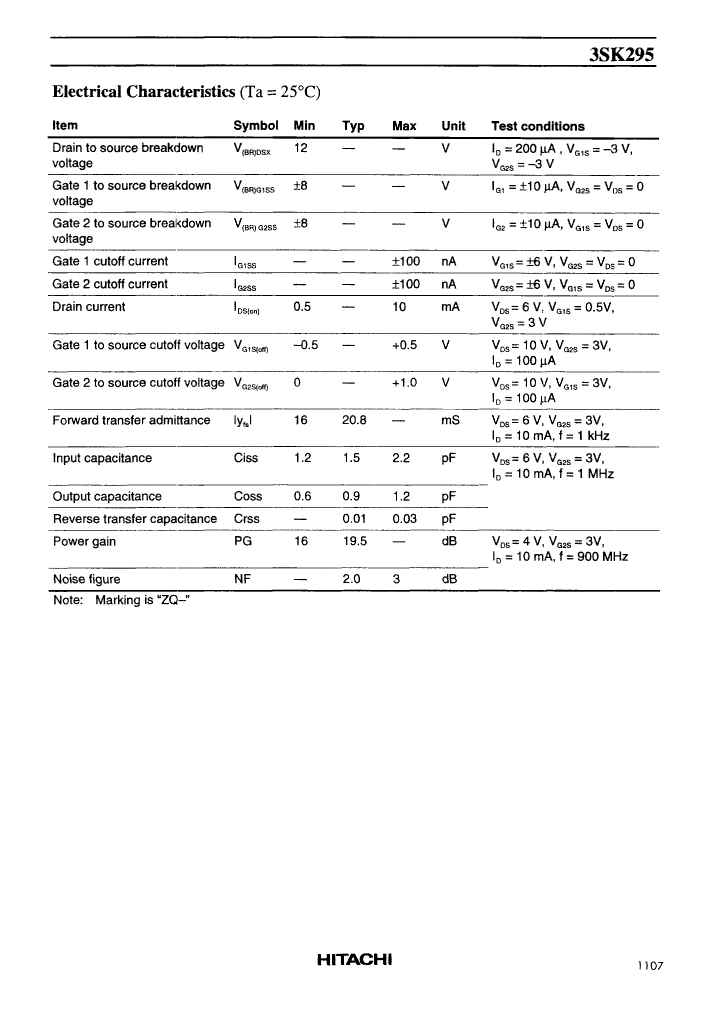

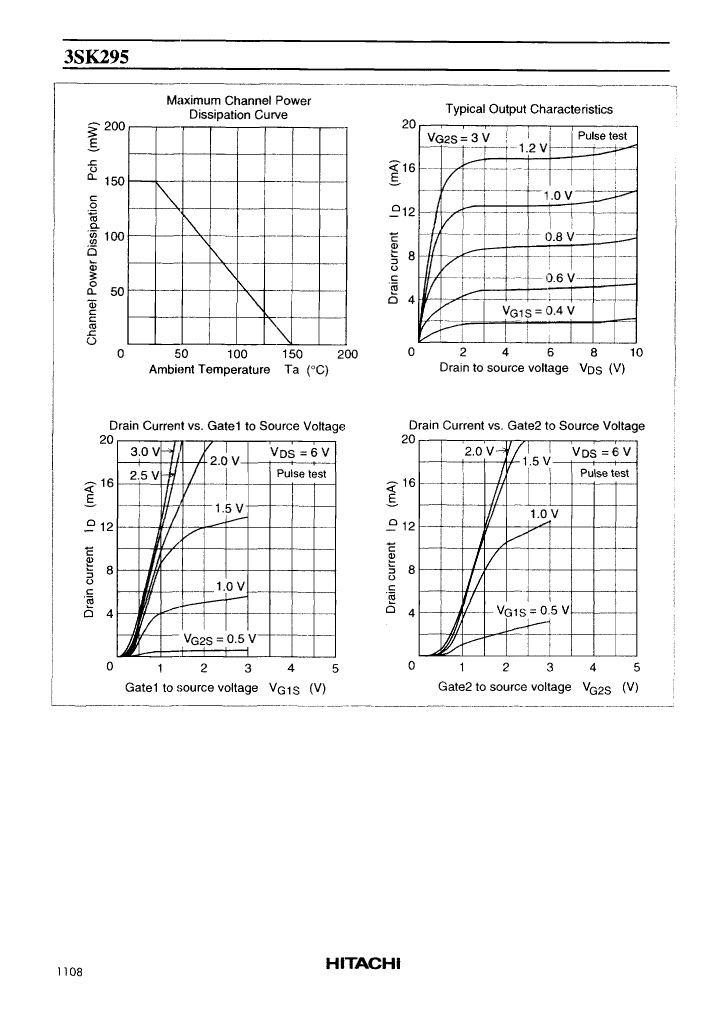

Preview

Download Datasheet

View All

3SK295ZQ-TL Related Products

	3SK295ZQ-TL	3SK295ZQ-UR	3SK295ZQ-TR	3SK295ZQ-UL
Description	UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4	UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4	UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4	UHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, MOSFET, MPAK-4
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4	4	4
Reach Compliance Code	unknow	unknow	unknown	unknown
Shell connection	SOURCE	SOURCE	SOURCE	SOURCE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain current (ID)	0.025 A	0.025 A	0.025 A	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF	0.03 pF	0.03 pF	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1
Number of terminals	4	4	4	4
Operating mode	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	16 dB	16 dB	16 dB	16 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1
