MASWSS0039
GaAs DPDT Diversity Switch
4.5 - 6.0 GHz
Features
•
•
•
•
•
Low Insertion Loss: 0.8 dB at 5.2 GHz
Low Cost 3 mm 12-Lead PQFN Package
Ideal for WLAN IEEE 802.11a
0.5 micron GaAs PHEMT Process
Integrated DC Blocking Capacitors
Rev. V2
Functional Schematic
Port 1
N/C
N/C
PIN 1
Ctrl 1
Port 3
Ctrl 4
Ctrl 2
Port 4
Ctrl 3
Description
M/A-COM’s MASWSS0039 is a GaAs PHEMT
MMIC DPDT diversity switch in a low cost 3 mm 12-
lead PQFN package. It is designed for low insertion
loss and allows for independent control and
selection of each switch path. It integrates blocking
capacitors on all RF ports and thus eliminates the
need for additional off-chip DC blocking capacitors.
The MASWSS0039 is ideally suited for applications
where very small size and low cost are required.
Typical applications are for WLAN IEEE 802.11a
systems that employ two antennas for transmit and
receive diversity. This part can be used in all
systems operating between 4.5 GHz and 6.0 GHz
requiring moderate power and diversity switching.
The MASWSS0039 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
Port 2
N/C
Pin Configuration
2
PIN No.
1
2
3
4
PIN Name
Ctrl 1
Port 3
Ctrl 4
N/C
Port 2
N/C
Ctrl 3
Port 4
Ctrl 2
N/C
Port 1
N/C
Paddle
1
N/C
Description
Control 1
RF Port 3
Control 4
No Connection
RF Port 2
No Connection
Control 3
RF Port 4
Control 2
No Connection
RF Port 1
No Connection
RF and DC Ground
Ordering Information
1
Part Number
MASWSS0039TR
MASWSS0039TR-3000
MASWSS0039SMB
5
6
Package
7 inch, 1000 Piece Reel
13 Inch, 3000 Piece Reel
Sample Test Board
7
8
9
10
11
12
13
1. Reference Application Note M513 for reel size information.
2. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0039
GaAs DPDT Diversity Switch
4.5 - 6.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
Ω,
V
C
= 0 V / 3 V
Parameter
Insertion Loss
Rev. V2
Test Conditions
4.9 GHz
5.2 GHz
5.8 GHz
4.9 GHz
5.2 GHz
5.8 GHz
4.5 - 6.0 GHz
5.2 GHz, V
C
= 2.7 V
5.2 GHz, V
C
= 3.0 V
5.2 GHz, V
C
= 5.0 V
Two Tone, +15 dBm / tone, 5 MHz Spacing
5.2 GHz
Two Tone, +15 dBm / tone, 5 MHz Spacing
5.2 GHz, V
C
= 3 V
5.2 GHz, V
C
= 5 V
5.2 GHz, P
IN
= 20 dBm
5.2 GHz, P
IN
= 20 dBm
10% to 90% RF and 90% to 10% RF
50% Control to 90% RF
50% Control to 10% RF
|V
C
| = 3 V
Units
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBc
dBc
nS
nS
nS
µA
Min.
—
—
—
15
20
20
15
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.9
0.8
0.8
20
25
29
25
31
33
39
98
52
55
-85
-83
20
35
40
5
Max.
1.3
1.2
1.2
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
25
Isolation
Return Loss
P1dB
IP2
IP3
2
nd
Harmonic
3
rd
Harmonic
Trise, Tfall
Ton, Toff
Control Current
Absolute Maximum Ratings
3
Parameter
Input Power @ 3 V Control
Input Power @ 5 V Control
Operating Voltage
Operating Temperature
Storage Temperature
permanent damage to this device.
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
+32 dBm
+36 dBm
+8.5 volts
-40
°
C to +85
°
C
-65
°
C to +150
°
C
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
3.
Exceeding any one or combination of these limits may cause
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0039
GaAs DPDT Diversity Switch
4.5 - 6.0 GHz

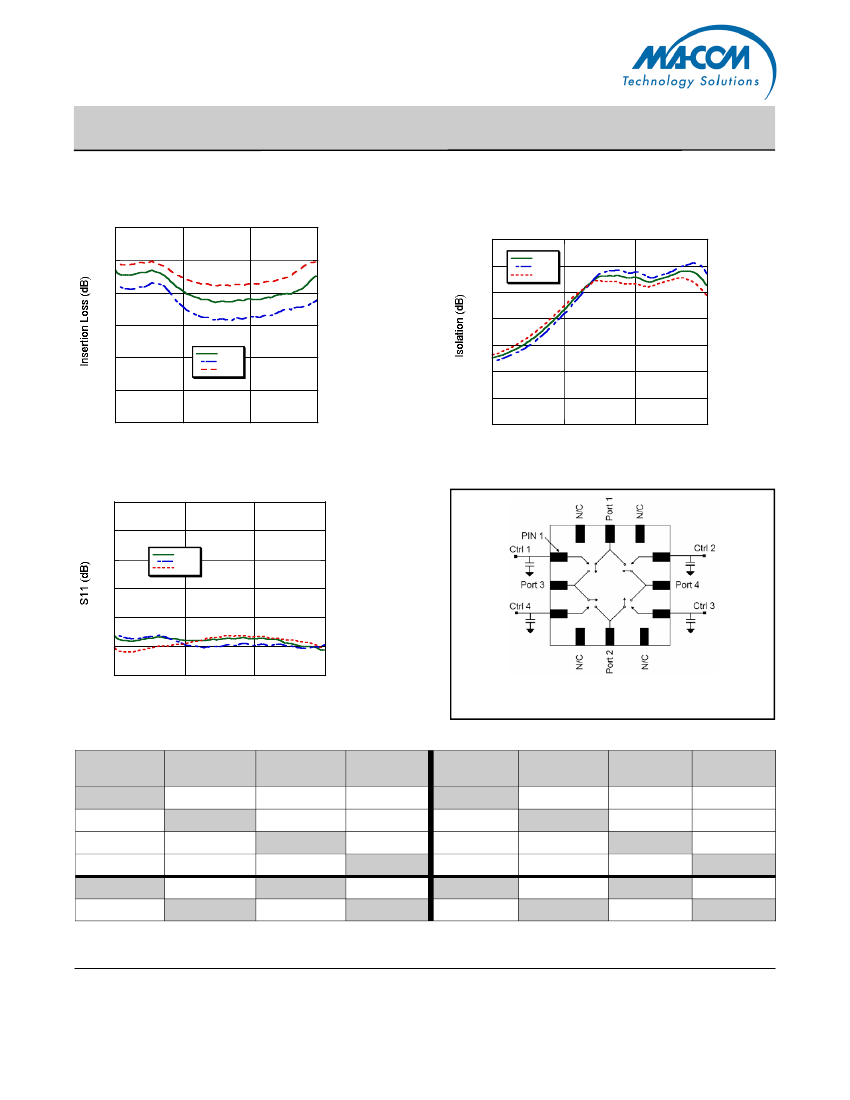

Typical Performance Curves
Insertion Loss
1.2
35
Rev. V2
Isolation
1.0
30
25
20
15
+25°C
-40°C
+85°C
0.8
0.6
0.4
+25°C
-40°C
+85°C
10
5
0
4.5
5.0
5.5
6.0
0.2
0.0
4.5
5.0
5.5
6.0
Frequency (GHz)
Frequency (GHz)
Return Loss
0
-5
+25°C
-40°C
+85°C
Circuit Block Diagram
-10
-15
-20
-25
-30
4.5
5.0
5.5
6.0
Frequency (GHz)
C1 – C4 = 47pF, Logic Control Decoupling Capacitors.
**
Internal blocking capacitors are located on Port 1-Port 4.
Truth Table
4,5
Control V1
1
0
0
0
1
0
Control V2
0
1
0
0
0
1
Control V3
0
0
1
0
1
0
Control V4
0
0
0
1
0
1
Port 1 -
Port 3
On
Off
Off
Off
On
Off
Port 1 -
Port 4
Off
On
Off
Off
Off
On
Port 2 -
Port 4
Off
Off
On
Off
On
Off
Port 2 -
Port 3
Off
Off
Off
On
Off
On
4. 1 = +2.5 V to +5 V, 0 = 0 V + 0.2 V.
5. Differential voltage, V (state 1) - V (state 0), must be 2.5 V minimum and must not exceed 8 V.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0039
GaAs DPDT Diversity Switch
4.5 - 6.0 GHz

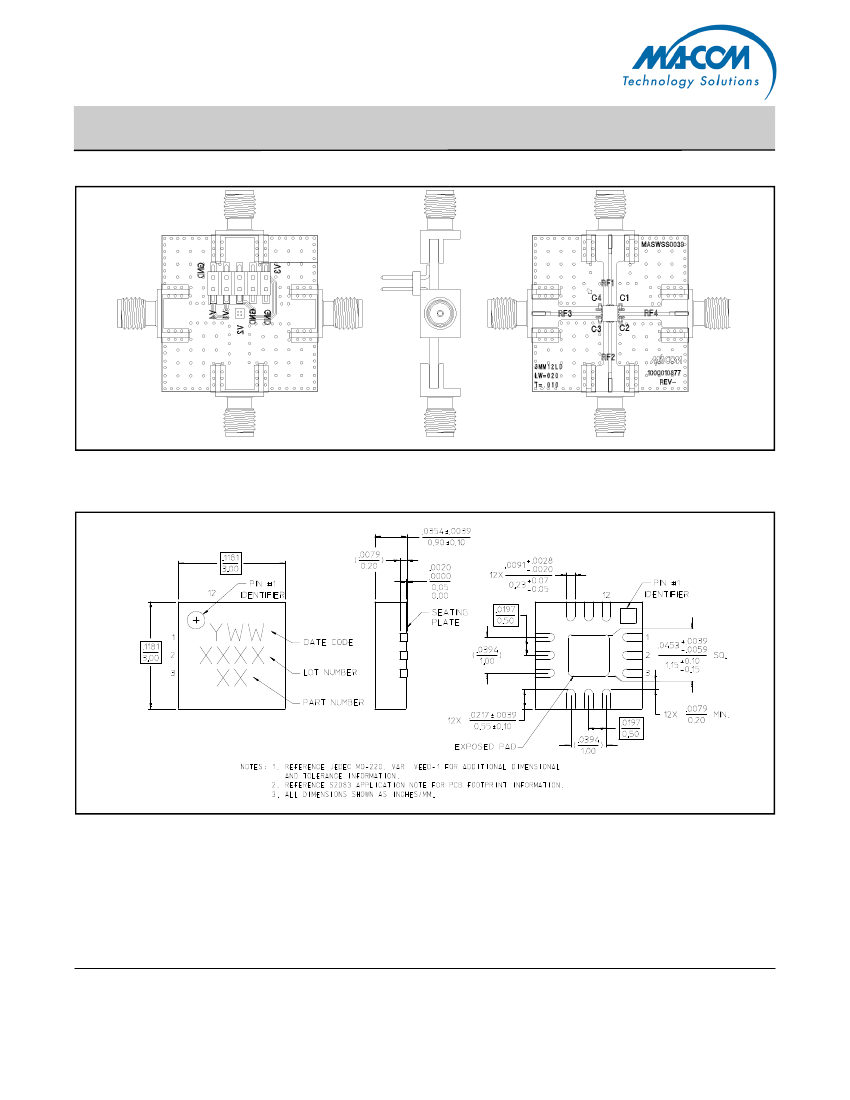

Evaluation Board
