50232-3573: Descriptionring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrelyellow, stud size 10 (M5), oxygen-free copper, length 26.60mm (1.047"), width7.10mm (.280"); CategoryThe connector terminals; File Size179KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50232-3573 Overview

ring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrelyellow, stud size 10 (M5), oxygen-free copper, length 26.60mm (1.047"), width7.10mm (.280")

50232-3573 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	50232
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	6.64 mm2
Wire gauge	10 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0502323573

Active

Ring Tongue Terminal for 10 and 12 AWG, Closed Insulated Vinyl Flared Barrel,

Yellow, Stud Size 10 (M5), Oxygen-Free Copper, Length 26.60mm (1.047"), Width

7.10mm (.280")

Documents:

Drawing (PDF)

Product Specification PS-50230-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

50232

Yes

N/A

RBV (Ring Vinyl Flared)

Ring

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Barrel Type

Color - Resin

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Wire Size AWG

Wire Size mm²

Closed - Brazed

Yellow

PVC

Tin

Bag

10 (M5)

10, 12

2.63 - 6.64

Material Info

Reference - Drawing Numbers

Product Specification

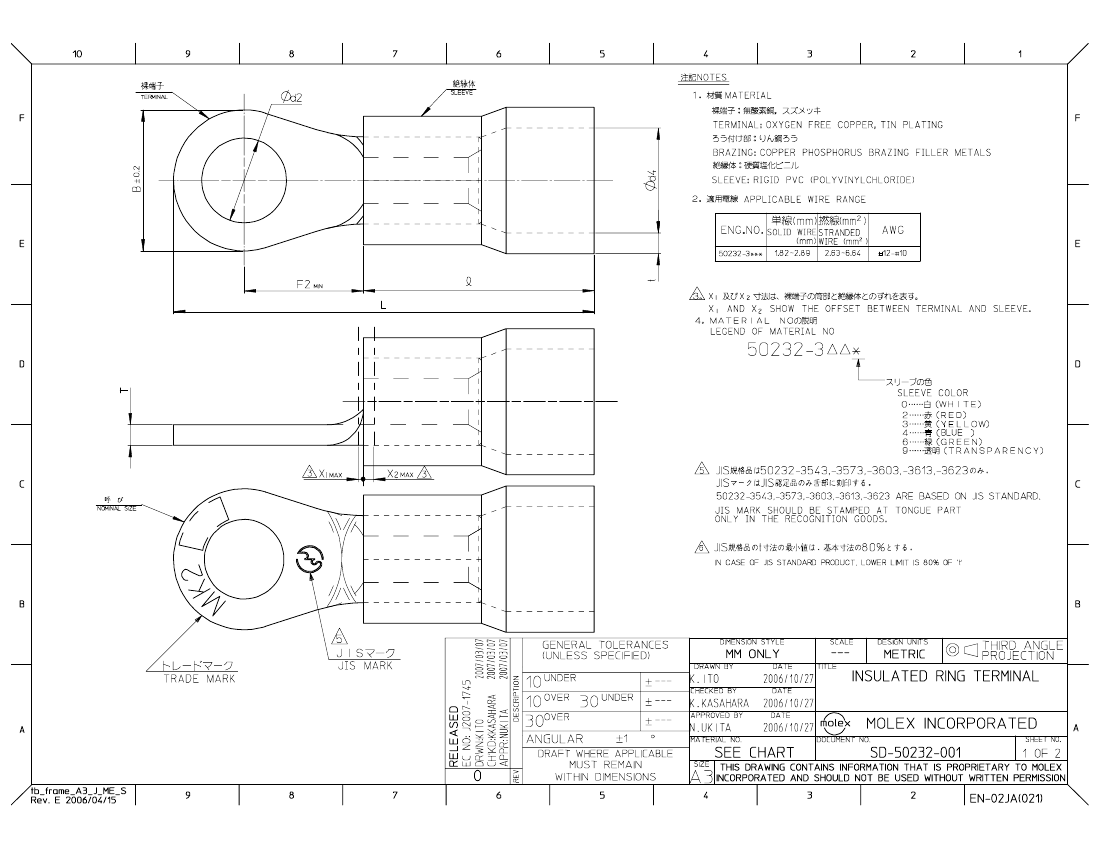

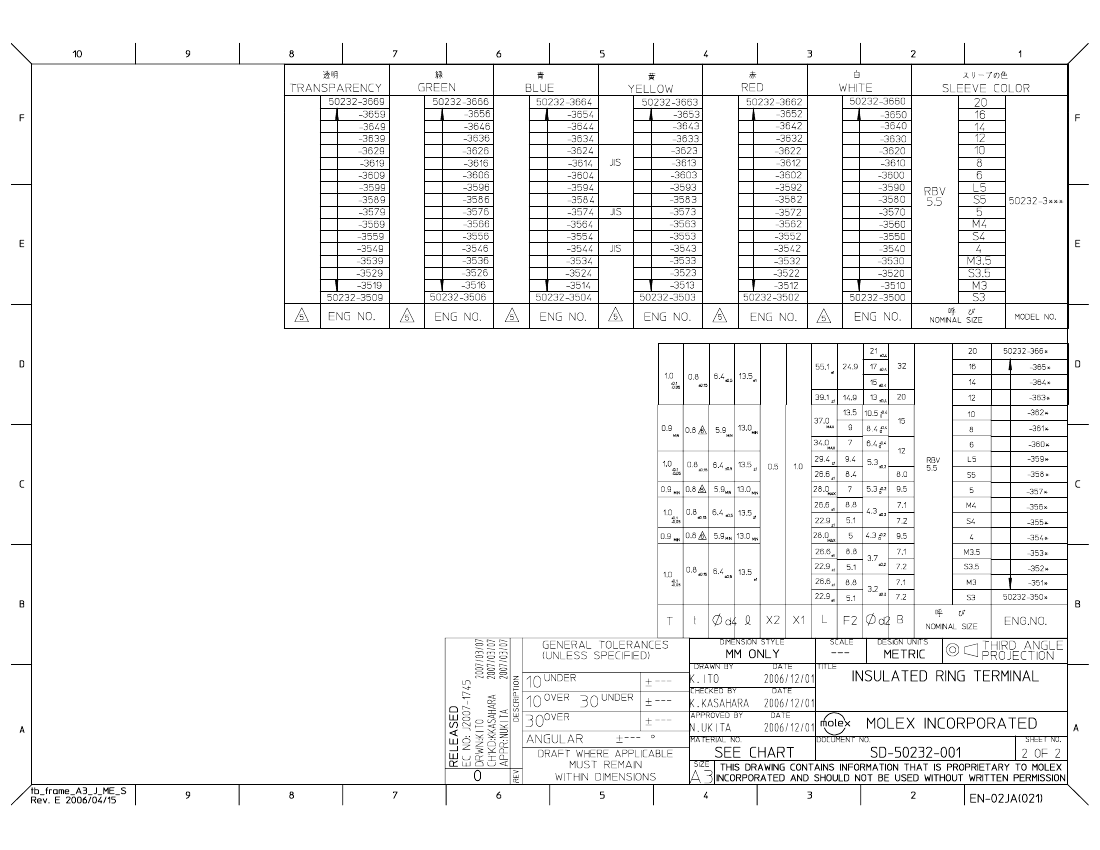

Sales Drawing

PS-50230-001

SD-50232-001

Search Parts in this Series

50232Series

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
