50232-3613 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 50232-3613

50232-3613: Descriptionring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrel,yellow, stud size 5/16" (M8), oxygen-free copper, length 34.90mm (1.374"); CategoryThe connector terminals; File Size179KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50232-3613 Overview

ring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrel,yellow, stud size 5/16" (M8), oxygen-free copper, length 34.90mm (1.374")

50232-3613 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	50232
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	6.64 mm2
Wire gauge	10 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0502323603

Active

Ring Tongue Terminal for 10 and 12 AWG, Closed Insulated Vinyl Flared Barrel,

Yellow, Stud Size 1/4" (M6), Oxygen-Free Copper, Length 29.40mm (1.157")

Documents:

Drawing (PDF)

Product Specification PS-50230-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

50232

Yes

N/A

RBV (Ring Vinyl Flared)

Ring

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

PS-50230-001

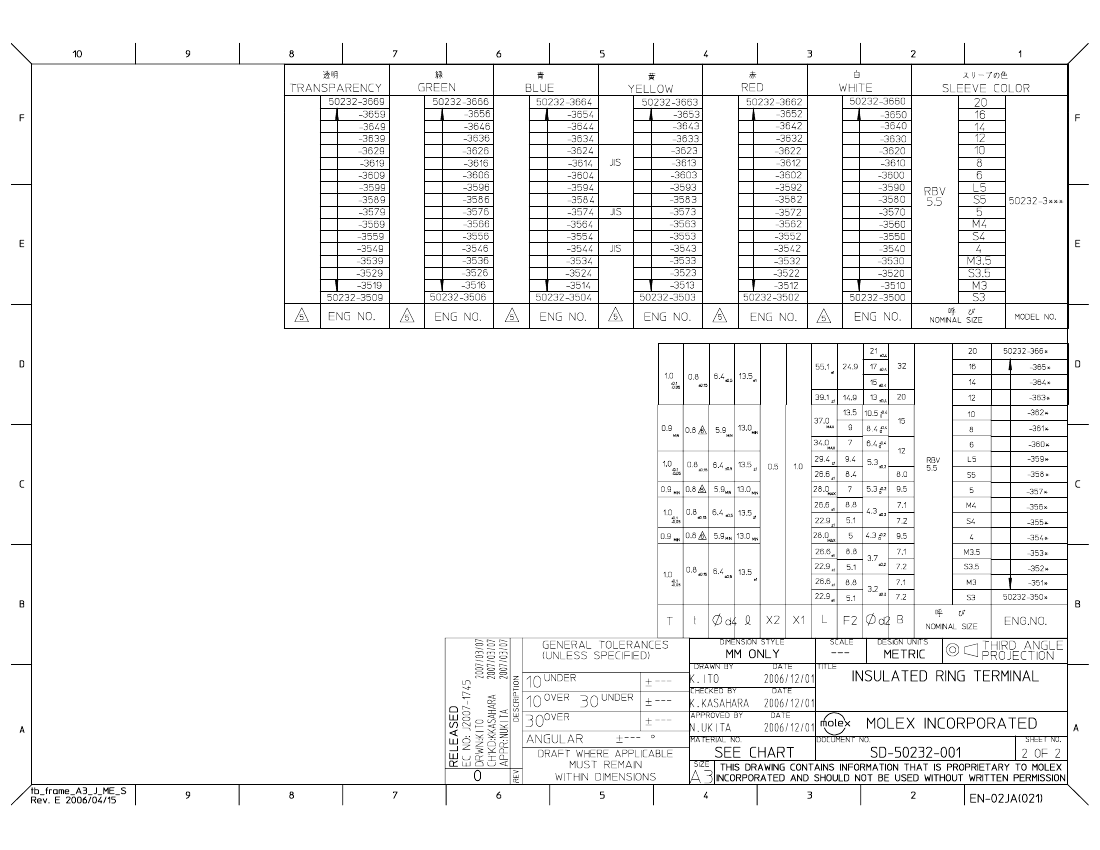

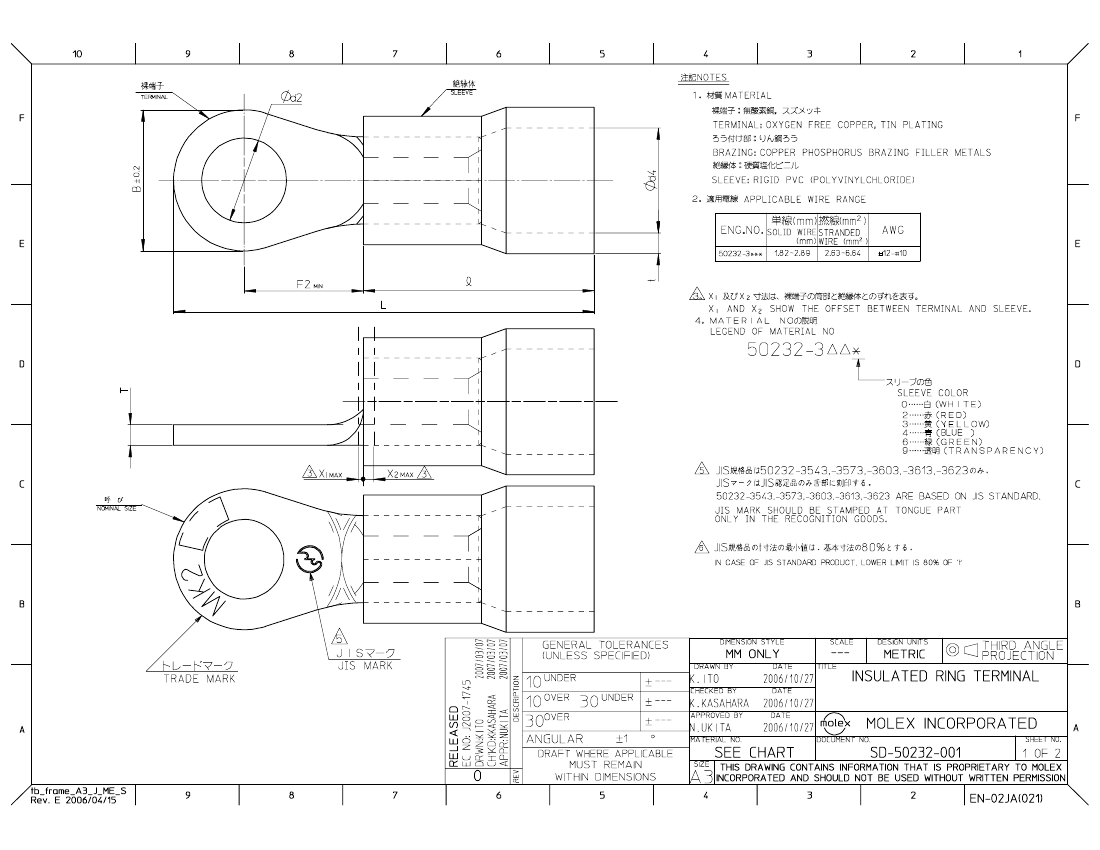

SD-50232-001

Search Parts in this Series

50232Series

Physical

Barrel Type

Color - Resin

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Wire Size AWG

Wire Size mm²

Closed - Brazed

Yellow

PVC

Tin

Bag

1/4" (M6)

10, 12

2.63 - 6.64

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

50232-3613 Related Products

	50232-3613	HKQ0603W3N0B-T	50232-3603
Description	ring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrel,yellow, stud size 5/16" (M8), oxygen-free copper, length 34.90mm (1.374")	High-Q Multilayer Chip Inductors for High Frequency	ring tongue terminal for 10 and 12 awg, closed insulated vinyl flared barrel yellow, stud size 1/4" (M6), oxygen-free copper, length 29.40mm (1.157")
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
Reach Compliance Code	unknown	-	unknow
ECCN code	EAR99	-	EAR99
Manufacturer's serial number	50232	-	50232
Terminal and terminal strip types	RING TERMINAL	-	RING TERMINAL
Conductor cross section	6.64 mm2	-	6.64 mm2
Wire gauge	10 AWG	-	10 AWG
