TA2008AN: Description5V AM / FM 1 chip tuner IC (for digital tuning system); CategoryAnalog mixed-signal IC Consumption circuit; File Size739KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TA2008AN Overview

5V AM / FM 1 chip tuner IC (for digital tuning system)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP,
Contacts	24
Reach Compliance Code	unknow
Commercial integrated circuit types	AUDIO SINGLE CHIP RECEIVER
Demodulation type	AM/FM
harmonic distortion	1%
JESD-30 code	R-PDIP-T24
length	22 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Output voltage nominal (AM)	65 mV
Nominal output voltage (FM)	75 mV
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.5 mm
Signal-to-noise ratio Nom (FM)	70 dB
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	3.5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

TA2008AN

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic

TA2008AN

5V AM / FM 1 Chip Tuner IC

(for digital tuning system)

The TA2008AN is the AM / FM 1 chip tuner IC, which is designed

for radio cassette players and music centers.

This is suitable for digital tuning system applications.

Features

Suitable for combination with digital tuning system which is

included IF counter.

One terminal type AM / FM IF count output (auto stop signal)

for IF counter of digital tuning system.

FM: 1.3375MHz (1 / 8 dividing)

AM: 450kHz

Built−in mute circuit for IF count output.

Weight: 1.2g (typ.)

For adopting ceramic discriminator and ceramic resonator, it is not necessary to adjust the FM quad detector

circuit and FM stereo detector vco circuit.

Built−in one terminal type AM / FM local oscillator buffer output for digital tuning system applications.

Operating supply voltage range: V

= 3.5~14V (Ta = 25°C)

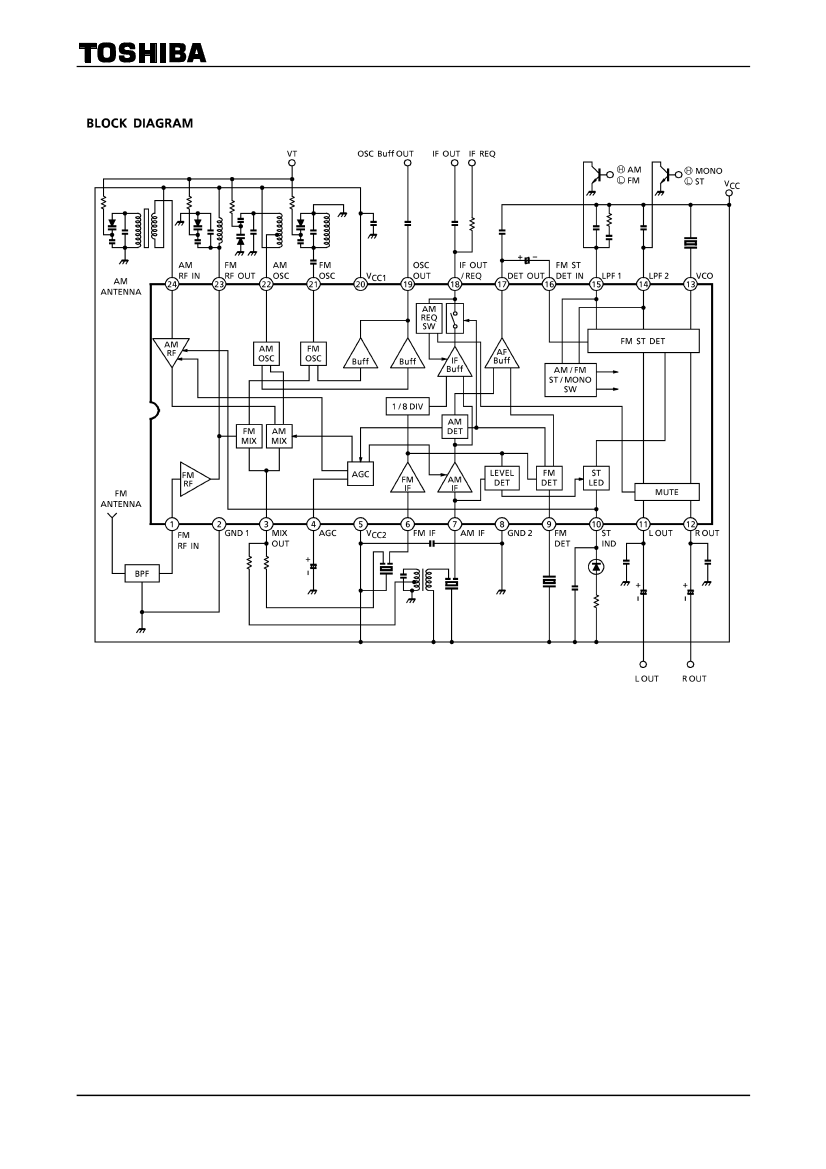

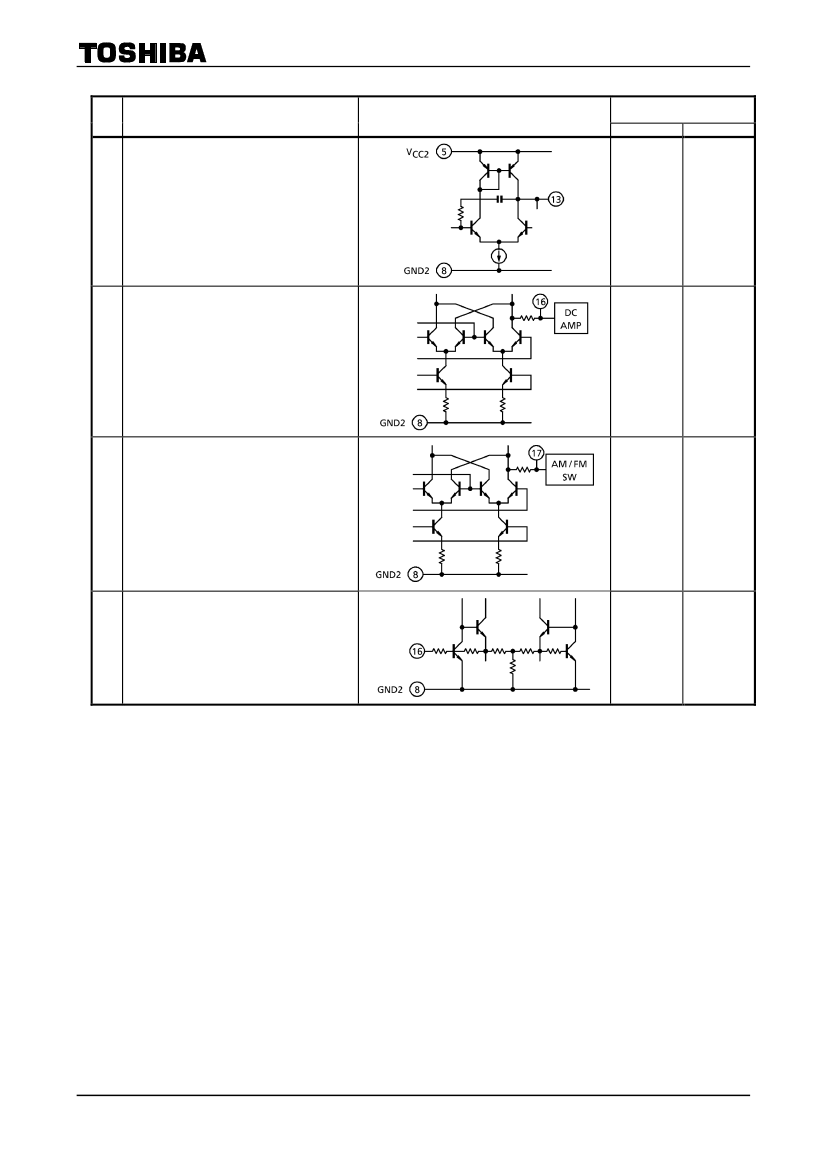

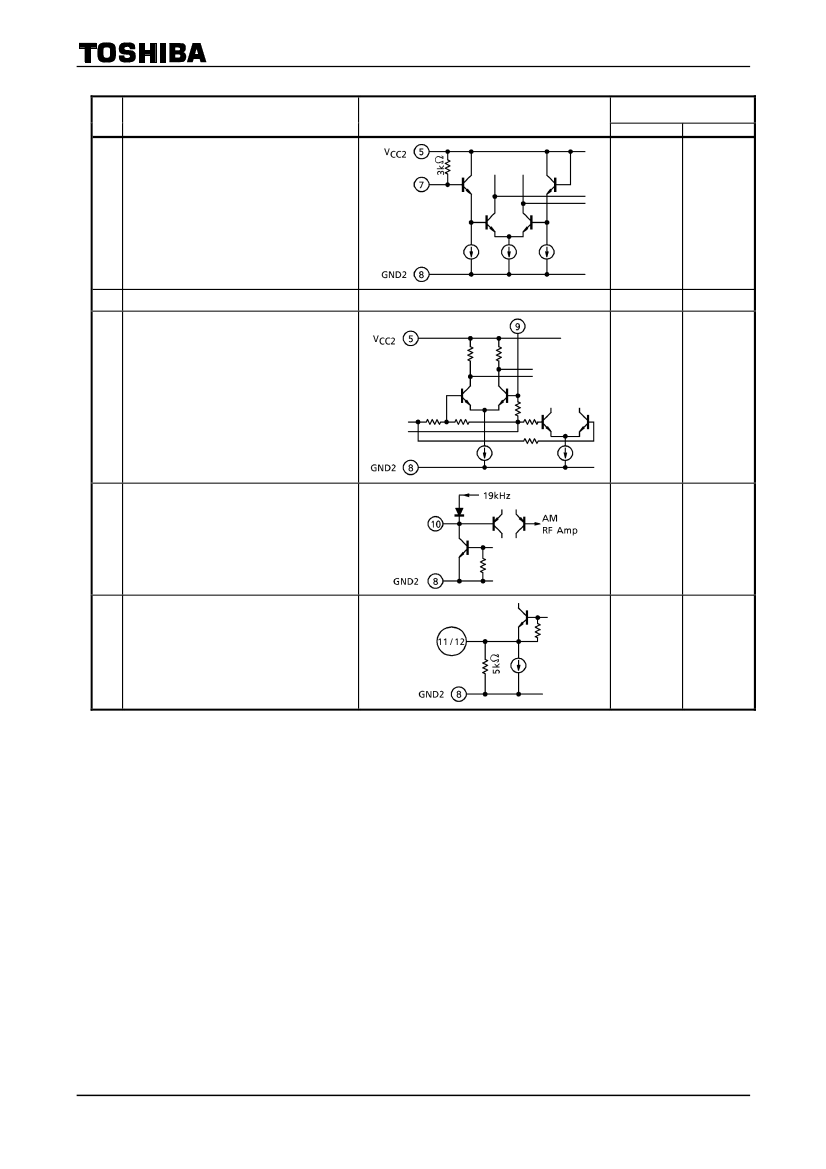

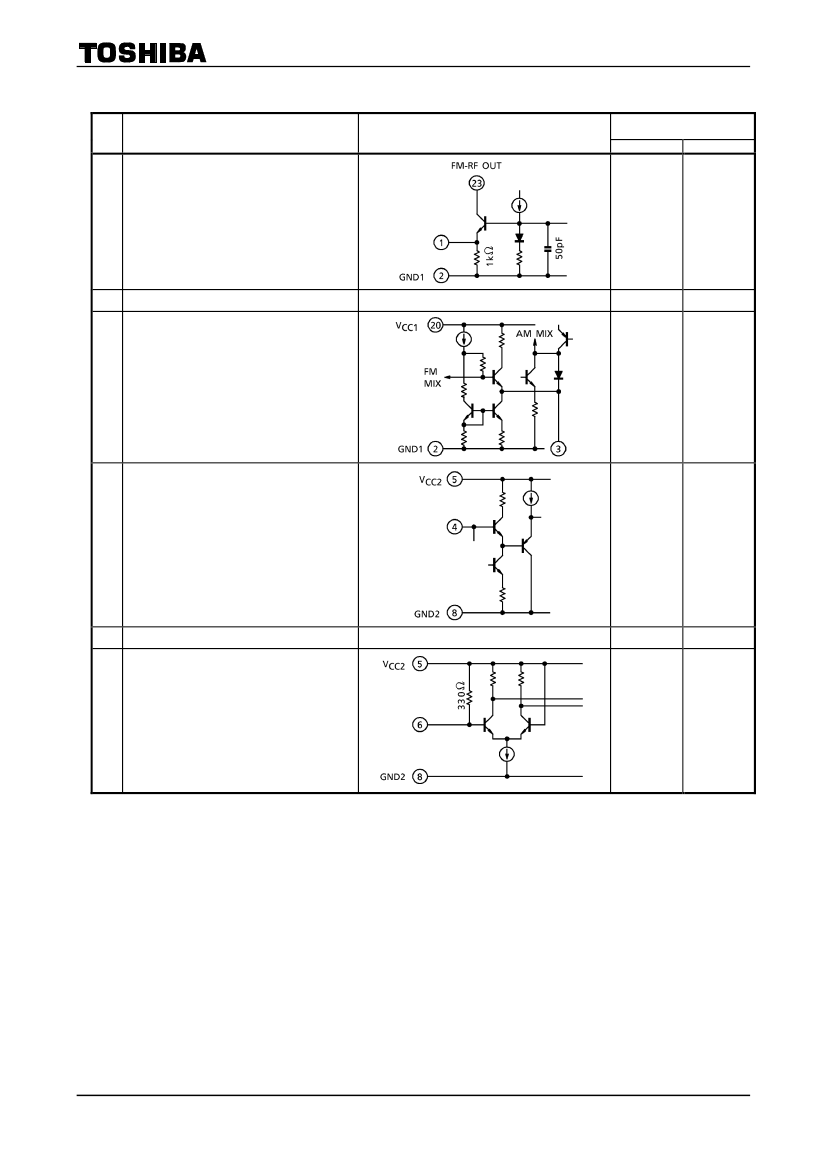

2002-10-30
