E-Series Surface Mount Mixer
880 – 915 MHz
Features
•
•
•
•
•
LO Power +17 dBm
Up to +13 dBm RF
Surface Mount
RoHS* Compliant version of the EMRS-6HX1
Tape and reel packaging available
MAMX-008786-ES0120
V1

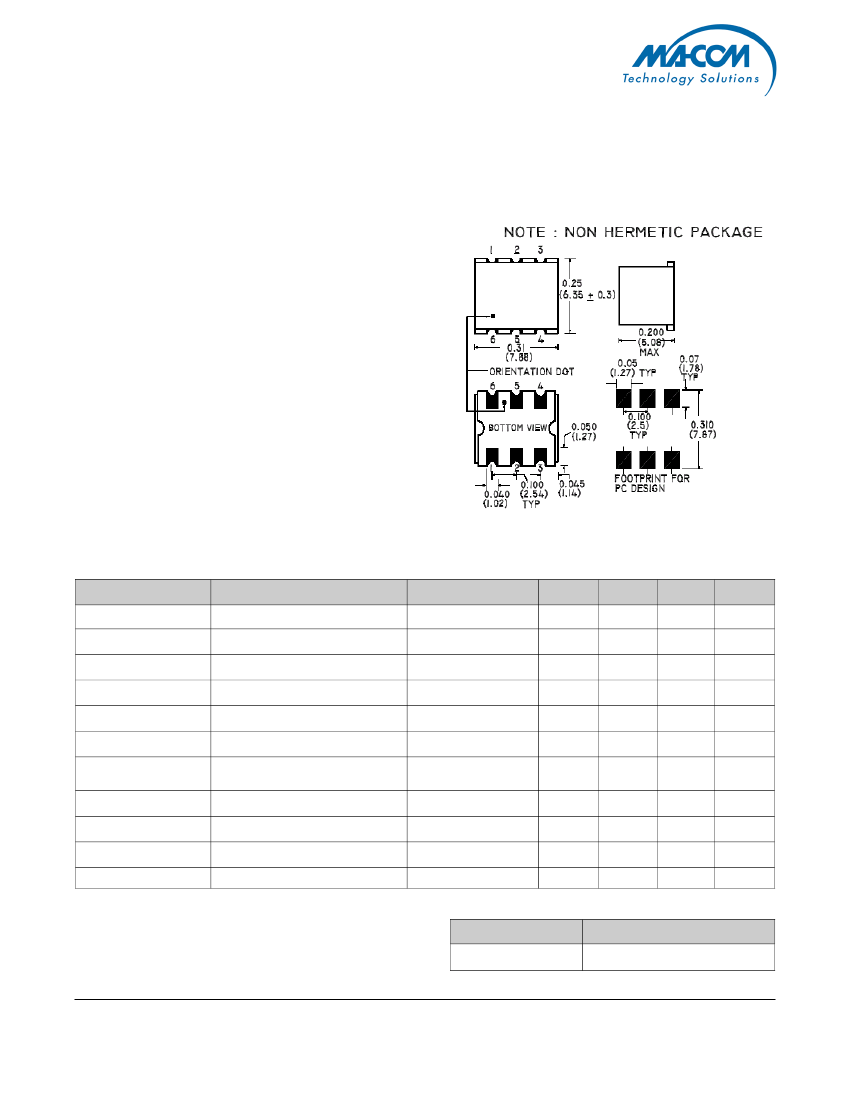

SM-87 Package
Description
M/A-COM’s MAMX-008786-ES0120 is a RoHS com-
pliant device that is equivalent to the EMRS-6HX1
mixer. This device is a Low Cost, High Drive, surface
mount Mixer designed for use in high volume
wireless applications. The MAMX-008786-ES0120
mixer is offered in an SM-87 surface mount package
and is designed to be utilized in both standard reflow
and high temperature soldering reflow profiles.
Electrical Specifications: @ -10°C — +85°C, Z
0
= 50 Ohms, LO = +17dBm
Parameter
RF Frequency
LO Frequency
IF Frequency
Conversion Loss
Isolation (LO - RF)
Isolation (LO - IF)
RF Input for 1 dB Com-
pression
IIP3
RF VSWR
LO VSWR
IF VSWR
Test Conditions
—
—
—
—
—
—
—
—
—
—
—
Frequency
880 - 915
1000 - 1130
150 - 170
880 - 915 MHz
1000 - 1130 MHz
1000 - 1130 MHz
—
880 - 915
880 - 915
1000-1130
150-170
Units
MHz
MHz
MHz
dB
dB
dB
dBm
dBm
Ratio
Ratio
Ratio
Min
—
—
—
—
25
25
—
23
1.7:1
1.3:1
1.0:1
Typ
—
—
—
5.5
30
30
—
27
2.0:1
1.5:1
1.2:1
Max
—
—
—
8.0
—
—
+13
—
2.3:1
1.8:1
1.4:1
Ordering Information
Part Number
MAMX-008786-ES0120
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
Package
Tape and Reel (900 pieces/ Reel)
E-Series Surface Mount Mixer
880 – 915 MHz
Pin Configuration
Pin No.
1
2
3
4
5
6
MAMX-008786-ES0120
V1
Absolute Maximum Ratings
1
Function
LO
Ground
Ground
RF
IF
Ground
Parameter
Max RF Power
Peak IF Current
Pin Temperature (10 seconds)
Operating Temperature
Storage Temperature
Absolute Maximum
50 mW
40 mA
260° C
-10°C to +85°C
-55°C to +125°C
1. Operation of this device above any one of these
parameters may cause permanent damage.
IIP3
0.00
-5.00
-10.00
-15.00
RF VSWR
2.00
1.90
1.80
1.70
dBm
-20.00
-25.00
-30.00
-35.00
880.00
885.00
890.00
895.00
900.00
905.00
910.00
915.00
1.60
1.50
1.40
1.30
1.20
Frequency (MHz)
Conversion Loss
0.00
-1.00
-2.00
-3.00
1.10
1.00
880.00
885.00
890.00
895.00
900.00
905.00
910.00
915.00
Frequency (MHz)
dB
IF VSWR
-4.00
-5.00
-6.00
-7.00
880.00
885.00
890.00
895.00
900.00
905.00
910.00
915.00
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30
Frequency (MHz)
0.00
-5.00
-10.00
-15.00
-20.00
LO-RF Isolation
1.20
1.10
1.00
150.00
152.00
154.00
156.00
158.00
160.00
162.00
164.00
166.00
168.00
170.00
Frequency (MHz)
dB
-25.00
-30.00
-35.00
-40.00
-45.00
1000.00
1065.00
1130.00
1.80
1.70
1.60
1.50
2.00
1.90
LO VSWR
Frequency (MHz)
0.00
-5.00
-10.00
-15.00
LO-IF Isolation
1.40
1.30
1.20
1.10
1.00
1000.00
1065.00
1130.00
dB
Frequency (MHz)
-20.00
-25.00
-30.00
-35.00
1000.00
1065.00
1130.00
Frequency (MHz)
2
