MAPDCT0013

Description
2 way 0? power divider 5 to 1000 mhz
File Size121KB,3 Pages
ManufacturerM/A-COM Tech(MACOM)
Websitehttp://www.macom.com
Download Datasheet View All

MAPDCT0013 Overview

2 way 0? power divider 5 to 1000 mhz

MAPDCT0013
2 Way 0º Power Divider
5 to 1000 MHz
Features
Surface mount
2 Way 0 degree.
260°C reflow compatible
RoHS* compliant
Available on tape and reel.
M/A-COM Products
Released, Rev. V1

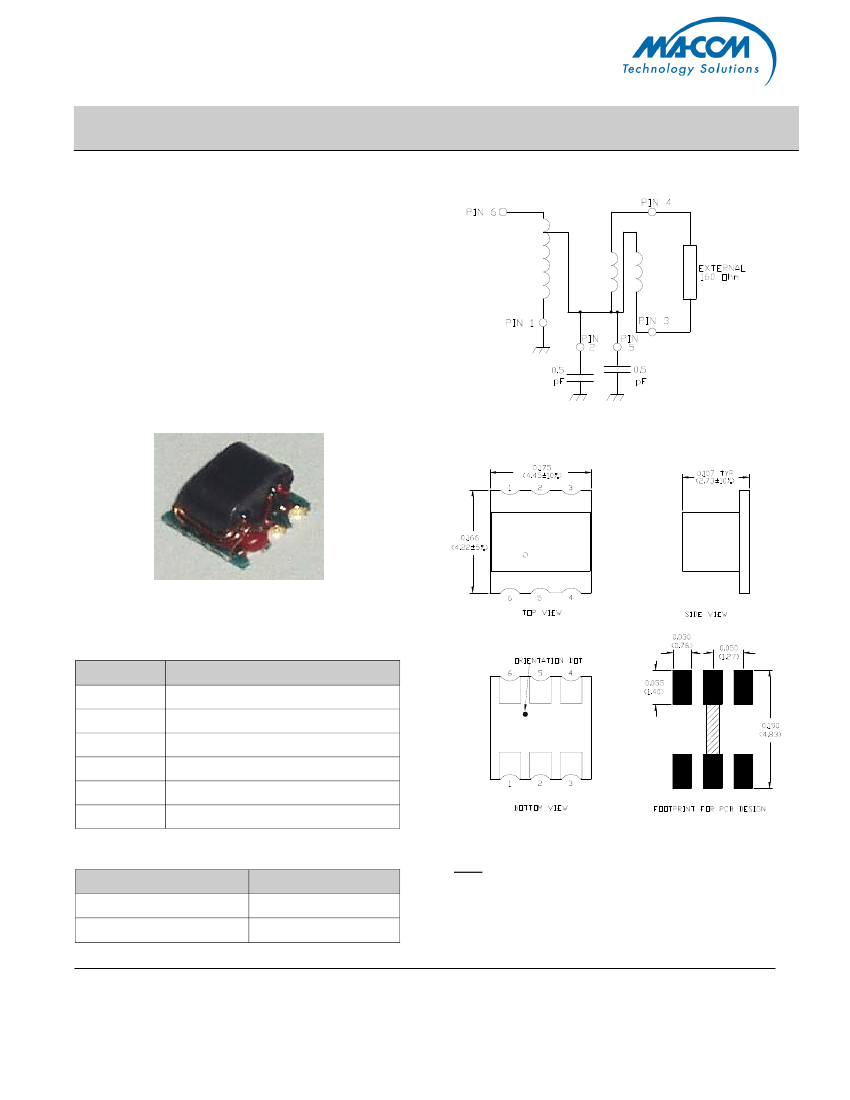

Schematic with off-chip components
Description
M/A Com’s MAPDCT0013 is a 2 way 0 degree RF
power divider in a low cost, surface mount package.
Ideally suited for high volume CATV/broadband
applications. Two 0603 0.5pF capacitors and one
160Ω resistor are required with this part.
Case style: SM-156
Pin configuration
Pin no.
1
2
3
4
5
6
Function
Ground
External 0.5pF Capacitor to ground
Output 2
Output 1
External 0.5pF Capacitor to ground
Input
Unless otherwise stated dimensions are in inches [mm]
Tolerance: .xx ± .02, .xxx ± .010
Note:
Pin’s 2 and 5 need to be connected together on the PCB
as shown above.
Ordering information
Part number
MAPDCT0013TR
MAPD-007999-CT13TB
1
Description
Reel quantity 2000
Customer Test Board
* Restrictions on Hazardous Substances, European Union
Directive 2002/95/EC.
Note: Reference Application Note
M513
for reel size information.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
India
Tel: +91.80.4155721
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
