This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0395172012
Active
3.81mm (.150") Pitch Eurostyle™ Vertical Plug, with Retention Screws, Rear Wire
Entry, 12 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Terminal Blocks
39517
Wire-to-Board
Rear Wire Entry
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
12
Horizontal
Yes
1
Vertical
No
0.150 In
3.81 mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 26, 28, 30
0.05 - 1.31
Search Parts in this Series
39517Series
Mates With
Most 3.81mm (.150") Pitch Industry
Standard PCB Headers, 39515 Vertical
PCB Header with Threaded Retention
Inserts, 39516 Horizontal PCB Header with
Threaded Retention Inserts
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Material Info
Reference - Drawing Numbers
Product Specification

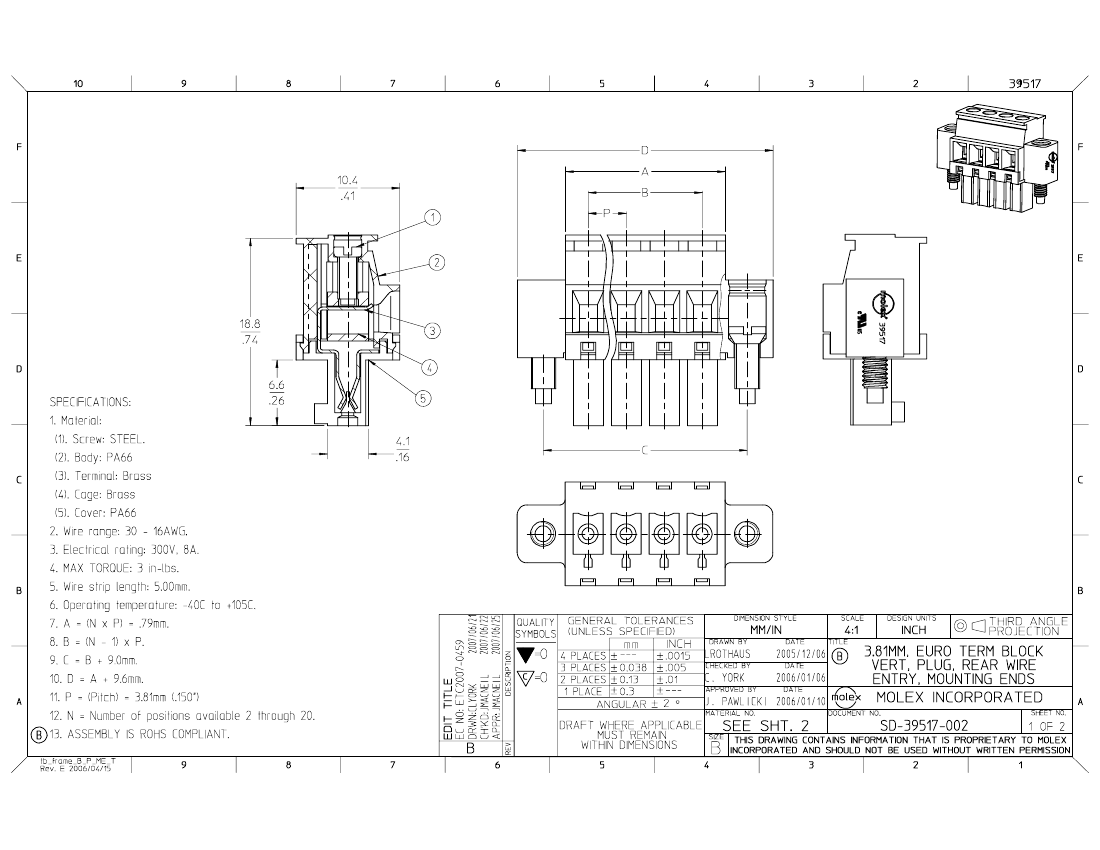

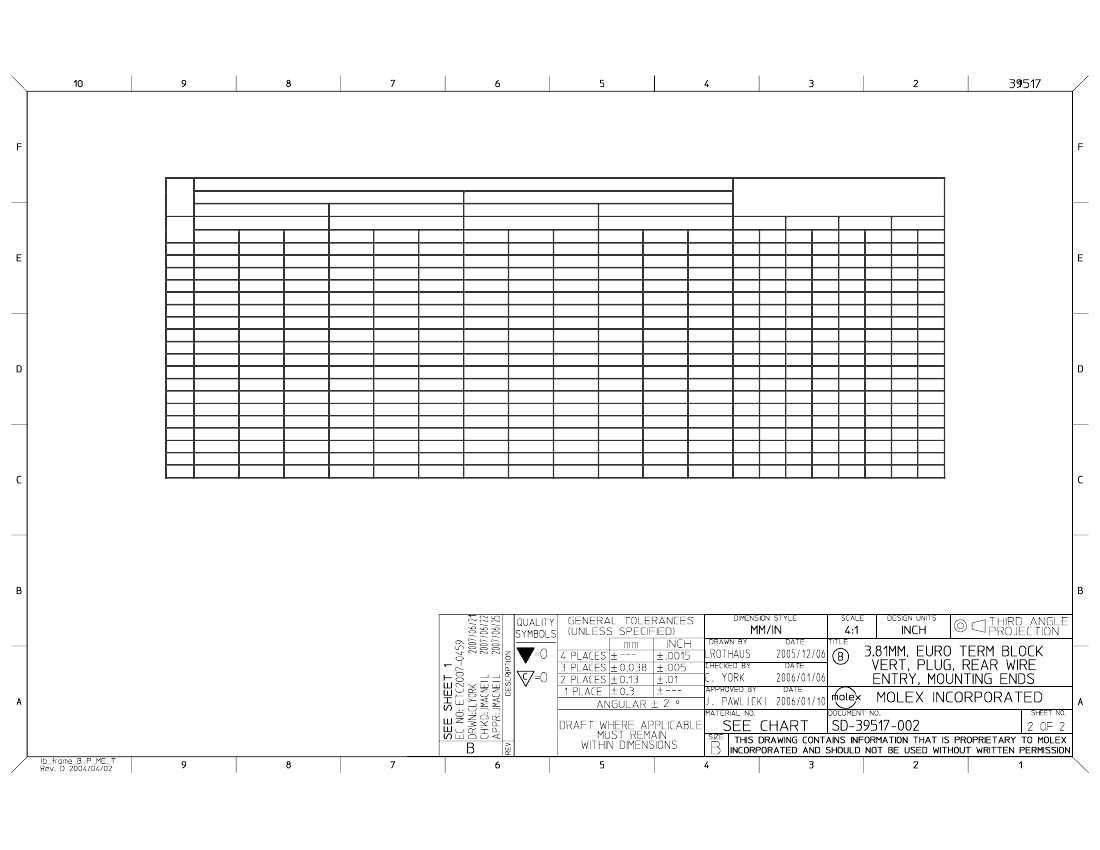

Sales Drawing
PS-39500-001
SD-39517-002
This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
