5013310907 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5013310907

5013310907: Description1.00mm (.039") pitch pico-clasp wire-to-board header, surface mount, single row, vertical; CategoryThe connector The connector; File Size427KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5013310907 Overview

1.00mm (.039") pitch pico-clasp wire-to-board header, surface mount, single row, vertical

5013310907 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

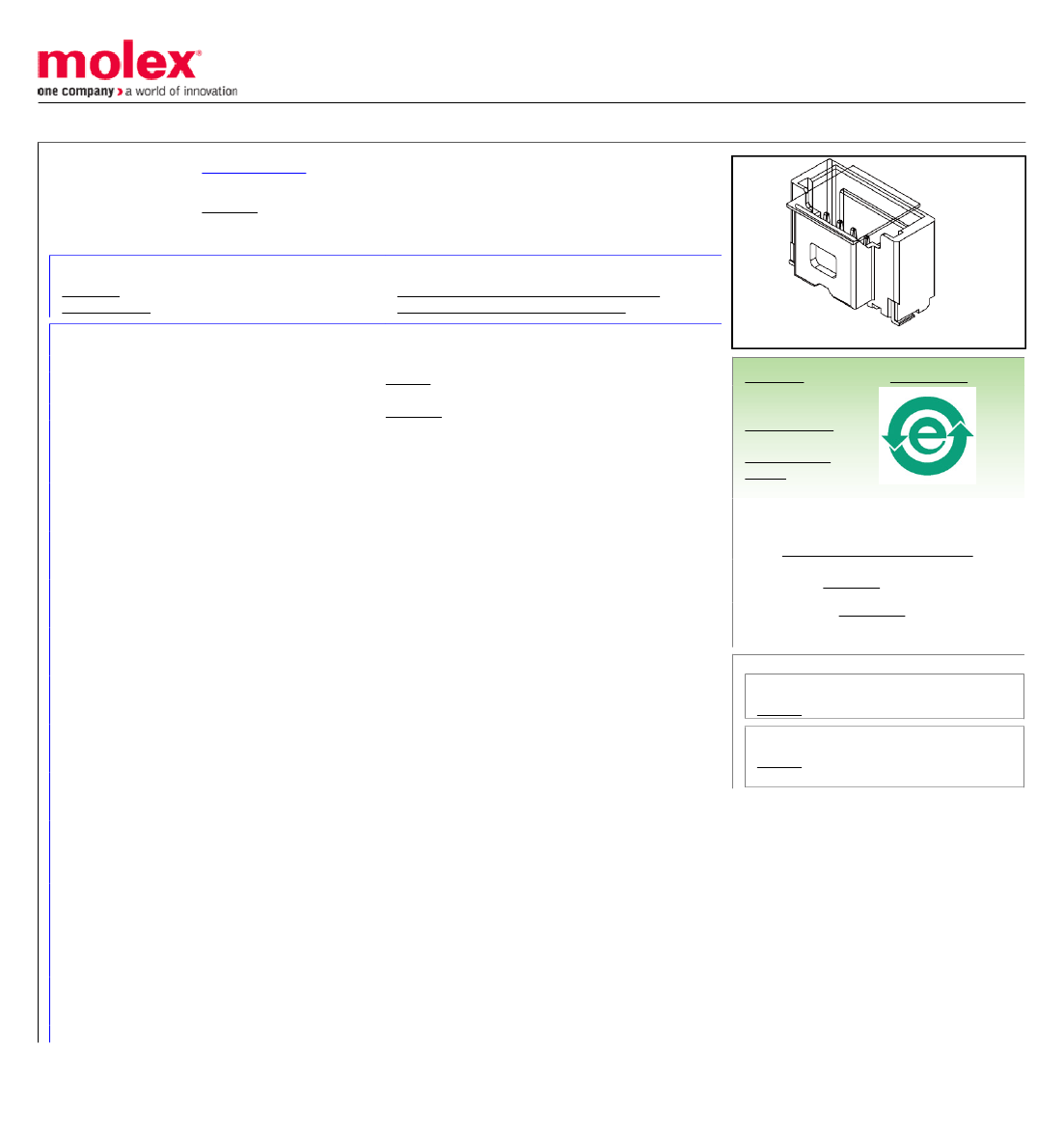

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5013310907

Active

picoclasp

1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Header, Surface Mount, Single Row,

Vertical, with Positive Lock, 9 Circuits, with Cover Tape, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501331-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

501331

Wire-to-Board

picoclasp

Pico-Clasp™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

Yes

Phosphor Bronze

Tin

Nylon

Vertical

Yes

Embossed Tape on Reel

0.039 In

1.00 mm

Yes

Vacuum Pick-Up Tape

-40°C to +85°C

Surface Mount

Search Parts in this Series

501331Series

Mates With

501330 Pico-Clasp™ Wire-to-Board Female

Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

SPK-501331-001

PS-501331-001, RPS-501331-001, RPS-501331-002,

RPS-501331-003, RPS-501331-005, RPS-501331-006,

RPS-501331-007, RPS-501940-001, RPS-501940-002

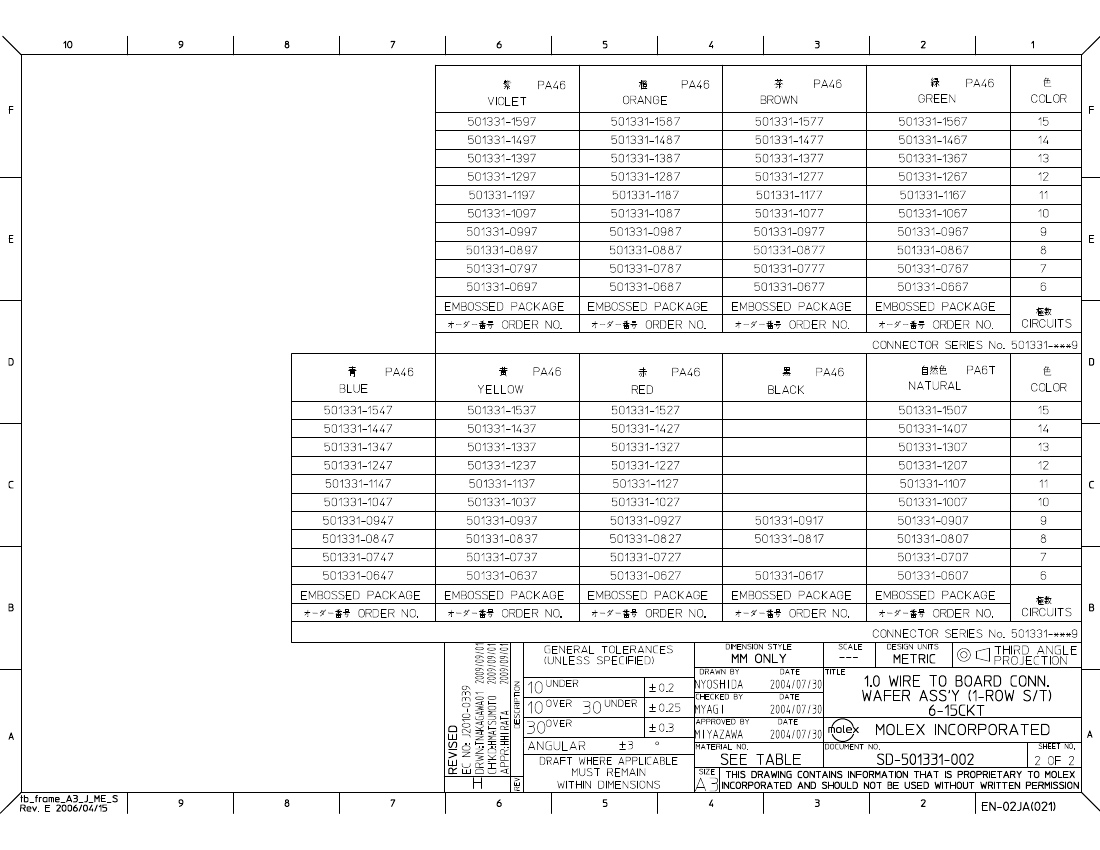

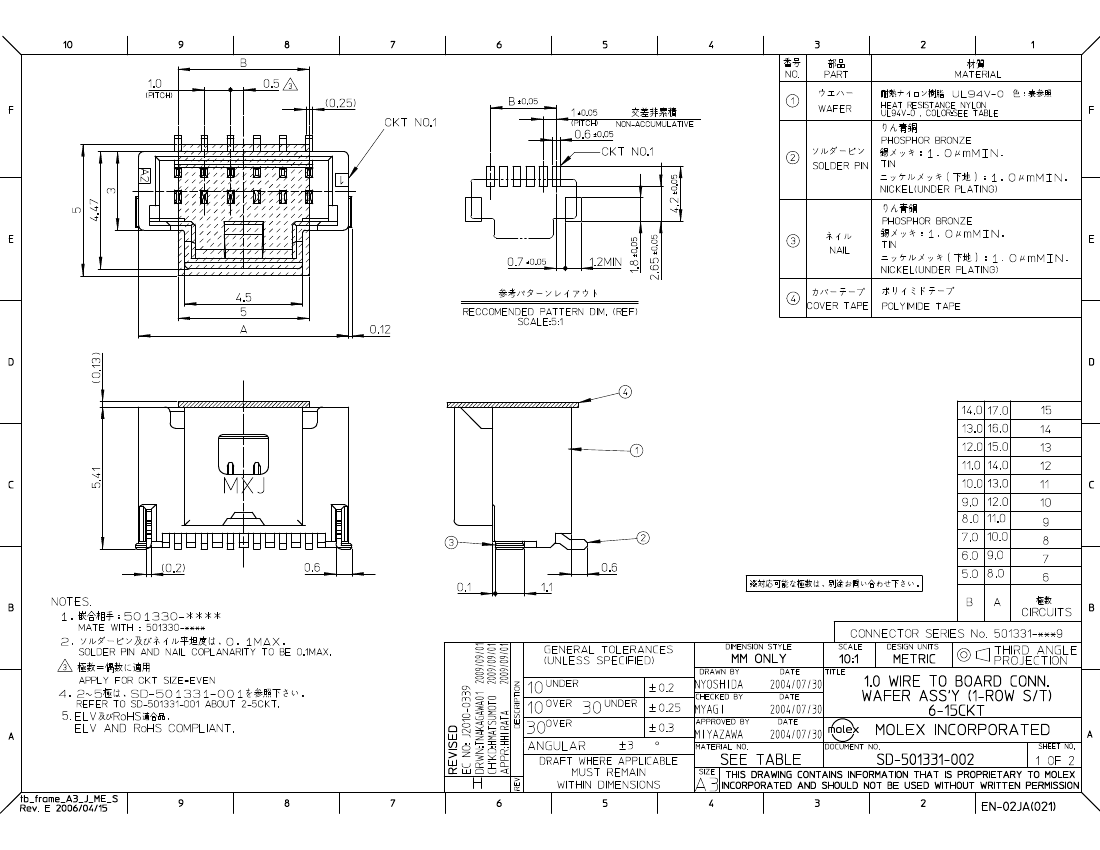

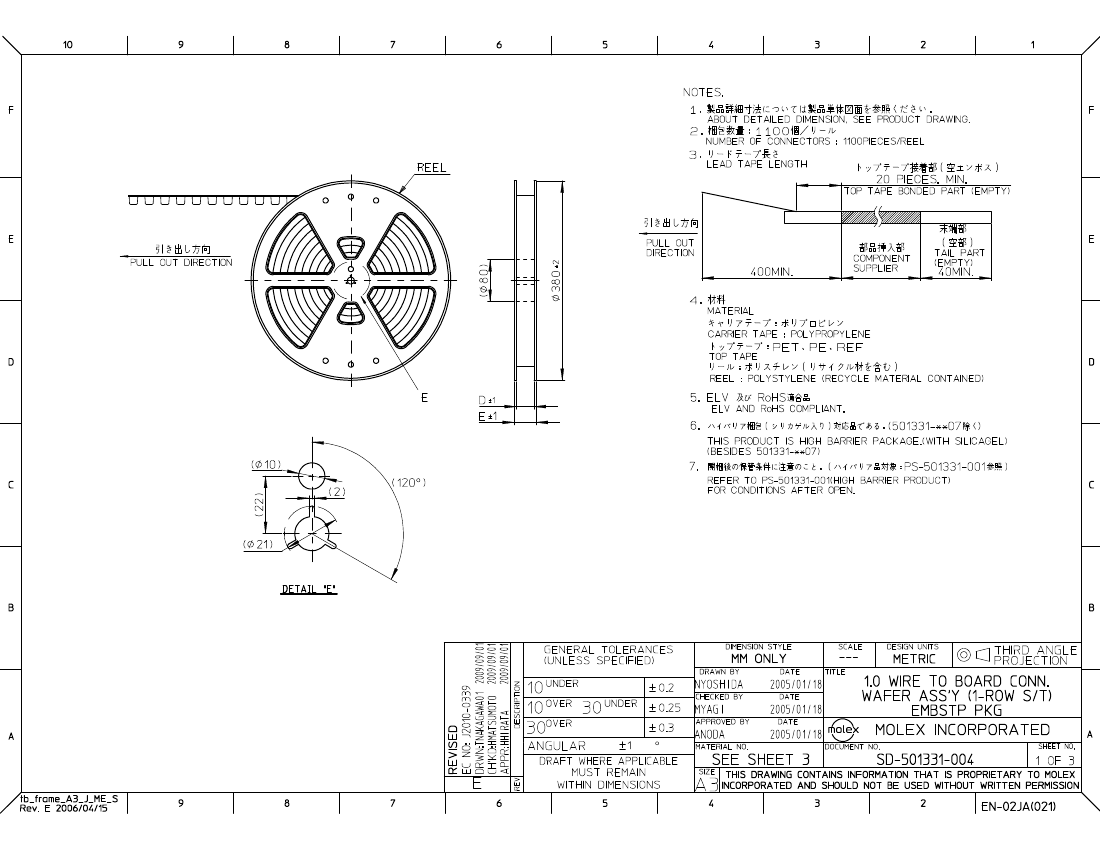

SD-501331-002, SD-501331-004

Sales Drawing
