PRELIMINARY

‡

256Mb: x4, x8, x16

DDR333 SDRAM Addendum

DOUBLE DATA RATE

(DDR) SDRAM

FEATURES

• 167 MHz Clock, 333 Mb/s/p data rate

• V

= +2.5V ±0.2V, V

Q = +2.5V ±0.2V

• Bidirectional data strobe (DQS) transmitted/

received with data, i.e., source-synchronous data

capture (x16 has two - one per byte)

• Internal, pipelined double-data-rate (DDR)

architecture; two data accesses per clock cycle

• Differential clock inputs (CK and CK#)

• Commands entered on each positive CK edge

• DQS edge-aligned with data for READs; center-

aligned with data for WRITEs

• DLL to align DQ and DQS transitions with CK

• Four internal banks for concurrent operation

• Data mask (DM) for masking write data (x16 has

two - one per byte)

• Programmable burst lengths: 2, 4, or 8

• Concurrent Auto Precharge option supported

• Auto Refresh and Self Refresh Modes

• FBGA package available

• 2.5V I/O (SSTL_2 compatible)

•

RAS lockout (

RAP =

RCD)

• Backwards compatible with DDR200 and DDR266

MT46V64M4 – 16 Meg x 4 x 4 banks

MT46V32M8 – 8 Meg x 8 x 4 banks

MT46V16M16 – 4 Meg x 16 x 4 banks

For the latest data sheet revisions, please refer to the Micron

Web site:

www.micron.com/dramds

DDR333 COMPATIBILITY

DDR333 meets or surpasses all DDR266 timing re-

quirements thus assuring full backwards compatibility

with current DDR designs. In addition, these devices

support concurrent auto-precharge and

RAS lockout

for improved timing performance. The 256Mb,

DDR333 device will support an (

REFI) average peri-

odic refresh interval of 7.8us.

The standard 66-pin TSOP package is offered for

point-to-point applications where the FBGA package

is intended for the multi-drop systems.

The Micron 256Mb data sheet provides full specifi-

cations and functionality unless specified herein.

CONFIGURATION

Architecture

Configuration

Refresh Count

Row Addressing

Bank Addressing

Column Addressing

64 Meg x 4

32 Meg x 8

16 Meg x 16

16 Meg x 4 x 4 banks 8 Meg x 8 x 4 banks 4 Meg x 16 x 4 banks

8K (A0–A12)

4 (BA0, BA1)

2K (A0–A9, A11)

8K (A0–A12)

4 (BA0, BA1)

1K (A0–A9)

8K (A0–A12)

4 (BA0, BA1)

512 (A0– A8)

OPTIONS

PART NUMBER

64M4

32M8

16M16

-6

-6T

-75Z

none

• Configuration

64 Meg x 4 (16 Meg x 4 x 4 banks)

32 Meg x 8 (8 Meg x 8 x 4 banks)

16 Meg x 16 (4 Meg x 16 x 4 banks)

• Plastic Package

66-Pin TSOP (OCPL)

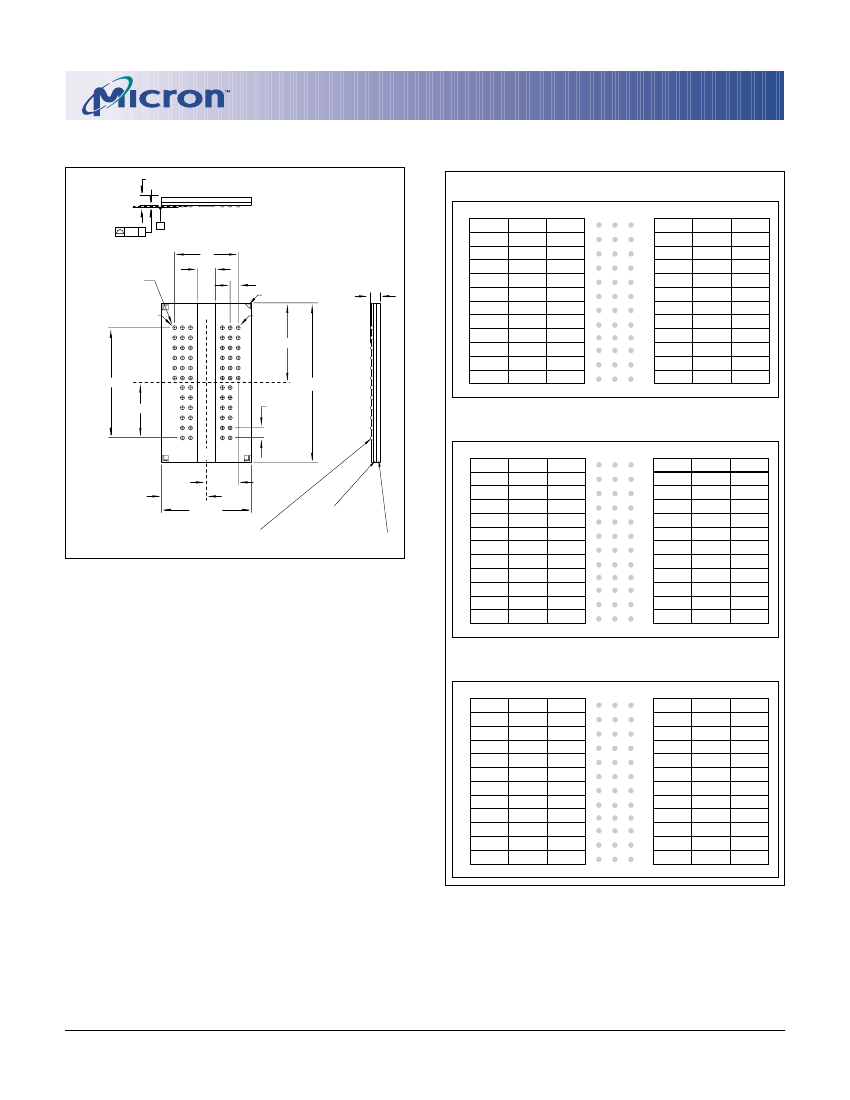

60-Ball FBGA (16x9mm)

• Timing - Cycle Time

6ns @ CL = 2.5 (DDR333B–FBGA)

6ns @ CL = 2.5 (DDR333B–TSOP)

7.5ns @ CL = 2 (DDR266A)

• Self Refresh

Standard

KEY TIMING PARAMETERS

SPEED

GRADE

-6

-6T

-75Z

NOTE:

CLOCK RATE

CL = 2

DATA-OUT ACCESS DQS-DQ

CL = 2.5

WINDOW

2.15ns

2.0ns

2.5ns

±0.70ns

±0.75ns

SKEW

+0.35ns

+0.45ns

+0.50ns

133 MHz

167 MHz

133 MHz

1. CL = CAS (Read) Latency

2. With a 50/50 clock duty cycle and a minimum clock

rate @ CL = 2 ( -75Z) and CL = 2.5 (-6, -6T).

3. -75, -8 are also available; see base data sheet.

NOTE:

1. Supports PC2700 modules with 2.5-3-3 timing

2. Supports PC2100 modules with 2-3-3 timing

256Mb: x4, x8, x16 DDR333 SDRAM

256Mx4x8x16DDR333_B.p65 – Rev. B; Pub. 10/01

Micron Technology, Inc., reserves the right to change products or specifications without notice.

‡ PRODUCTS AND SPECIFICATIONS DISCUSSED HEREIN ARE FOR EVALUATION AND REFERENCE PURPOSES ONLY AND ARE SUBJECT TO CHANGE BY

MICRON WITHOUT NOTICE. PRODUCTS ARE ONLY WARRANTED BY MICRON TO MEET MICRON’S PRODUCTION AND DATA SHEET SPECIFICATIONS.
