42023-2B1L

Description
mlx crimp terminal 42023, 14-20 awg, bag tin (Sn)
CategoryThe connector    Connector bracket
File Size152KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

42023-2B1L Overview

mlx crimp terminal 42023, 14-20 awg, bag tin (Sn)

42023-2B1L Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresCONTACT FINISH: TIN
Assembly nameCONTACT
Maximum number of cable entries0.13 inch
Minimum cable entry0.06 inch
Connector bracket typeCONNECTOR ACCESSORY
Contactor designCHAIN
Contact point genderMALE
Contact styleROUND PIN-SOCKET
DIN complianceNO
Finished thickness0.51
IEC complianceNO
MIL complianceNO
MaterialPHOSPHOR BRONZE
Installation methodSTRAIGHT
Terminal typeCRIMP
Maximum wire diameter14 AWG
Minimum wire diameter20 AWG
Base Number Matches1

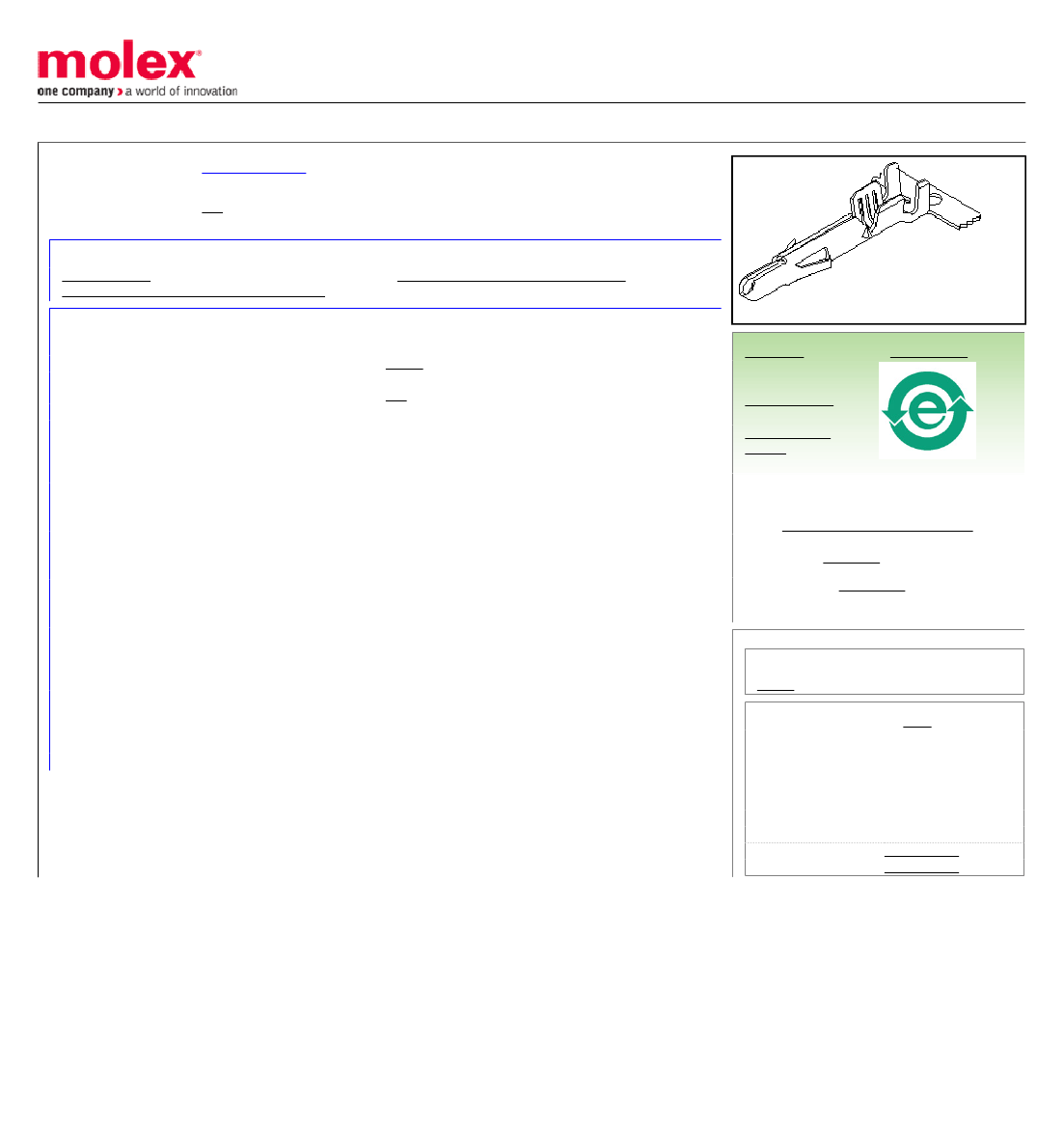

This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0002082006
Active
mlx
MLX Crimp Terminal 42023, 14-20 AWG, Bag Tin (Sn)
Documents:

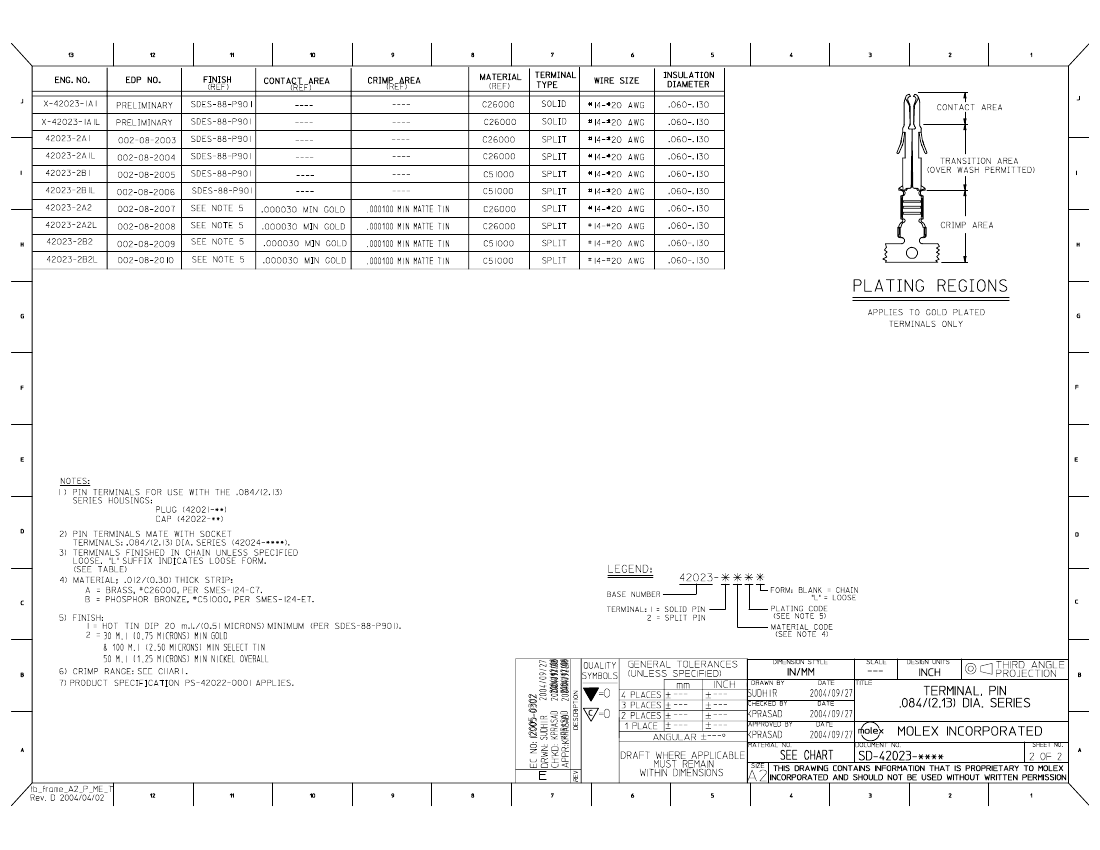

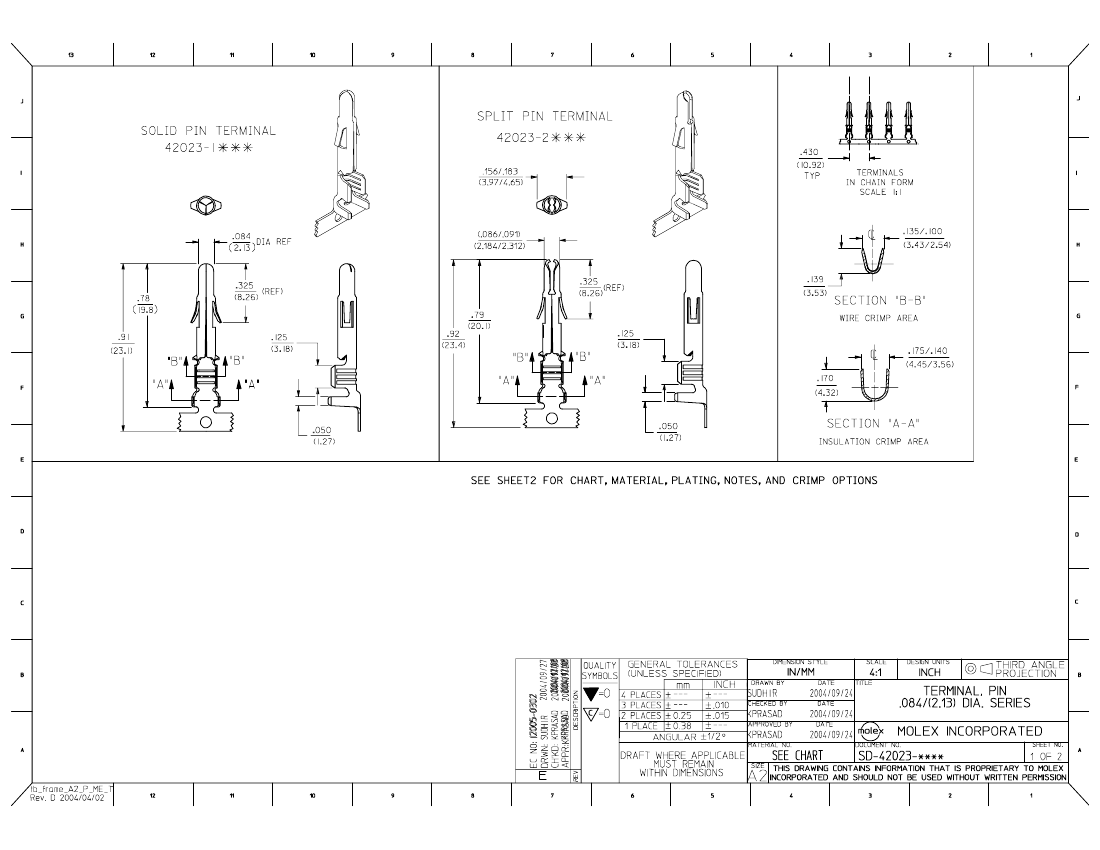

Drawing (PDF)
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
42023
Yes
mlx
MLX™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Male
Phosphor Bronze
Tin
Tin
Bag
20
0.50
20
0.50
Crimp or Compression
1.52-3.30mm (.060-.130")
14, 16, 18, 20
N/A
Material Info
Old Part Number
42023-2B1L
Search Parts in this Series
42023Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
HAND CRIMP TOOL 0638116800
Extraction Tool
0011010168
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-42022-0001
SD-42023-****
This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
